Use of the Commissioning Tools NICE1000
new
User Manual
- 52 -
Chapter 4 Use of the Commissioning Tools
The NICE1000
new
supports three commissioning tools, S1 button on the MCB, LED
operation panel, and host computer monitoring software NEMS.
Tool Function Description Remark
S1 button
The keypad provides the S1 button to carry out shaft
auto-tuning.
Standard
LED operation
panel
It is used to view and modify parameters related to
elevator drive and control.
Optional
NEMS
monitoring
software
It is used to monitor the current elevator state, view
and modify all parameters, and upload and download
parameters on the PC.
Optional.
Download the software
at www.szmctc.com.
Andriod
cell phone
commissioning
software
(EDSAP)
A Bluetooth module is used to connect the MCB
and the Android cell phone installed with the
commissioning software, through which you can
commission the elevator, and upload and download
parameters.
The software does not
provide the English
version currently.
4.1 Use of the LED Operation Panel
The LED operation panel is connected to the RJ45 interface of the controller by using an
8-core at cable. You can modify the parameters, monitor the working status and start or
stop the controller by operating the operation panel. The following gure shows the LED
operation panel.

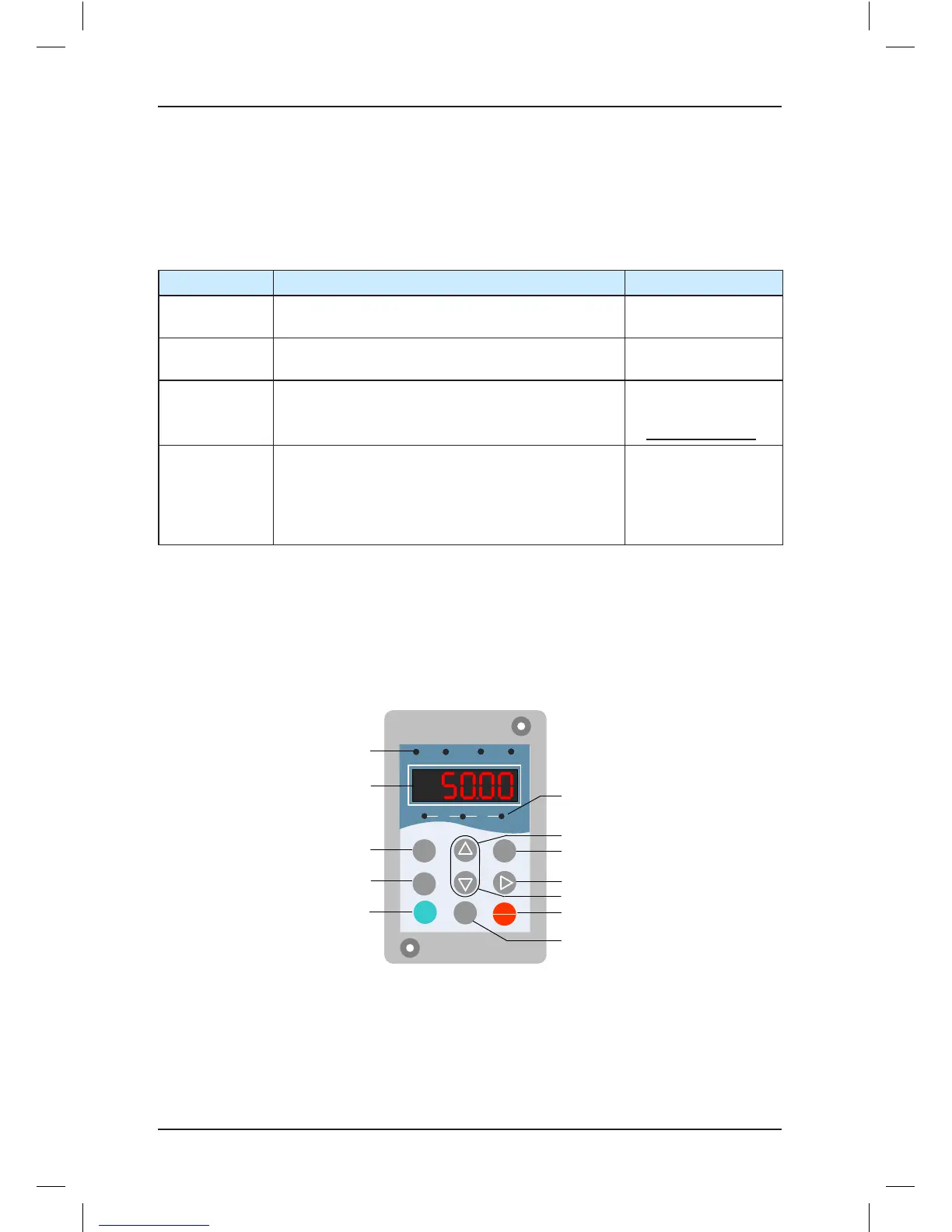

Figure 4-1 Diagram of the LED operation panel
MF.K
RUN
STOP
RES
QUICK
PRG ENTER
RUN
LOCAL/REMOT FED/REV TUNE/TC
RPM
%
A VHz
Data display
Programming
key
Function
indicator
RUN key
Fault hiding key
Stop/Reset key
Shift key
Increment key
Decrement
key
Confirm key
Unit indicator
Menu key
4.1.1 Description of Indicators
RUN
ON indicates that the controller is in the running state, and OFF indicates that the
controller is in the stop state.
