NICE1000
new
User Manual Product Information
- 29 -
Name Model Function Remark
PG card
MCTC-
PG-A2
It is used to adapt to the push-pull and
open-collector incremental encoders.
-
MCTC-
PG-D
It is used to adapt to the UVW
differential encoder and applied to
synchronous motor.
It requires 5 V power supply.
-
MCTC-
PG-E
It is used to adapt to the SIN/COS
encoder.
-
MCTC-
PG-F1
It is used to adapt to the absolute
encoder (Heidenhain ECN413/1313)
External LED
operation panel
MDKE
It is the external LED display and
operation panel.
It provides the RJ45
interface for connecting to
the controller.
External LED
operation panel
MDKE6
It is the external LED display and
operation panel.
It can be used for copying
parameters.
Extension cable MDCAB
It is a standard 8-core network cable
and can be connected to MDKE.
The cable length is 3 m in
the standard conguration.
2.7 Selection of Braking Components
The NICE1000
new
models of 30 kW and below have a built-in braking unit, and you only need
to connect an external braking resistor between PB and + terminals. For models above 30
kW, you need to install a braking unit and a braking resistor externally.
The following gure shows the appearance and dimensions of the braking unit.

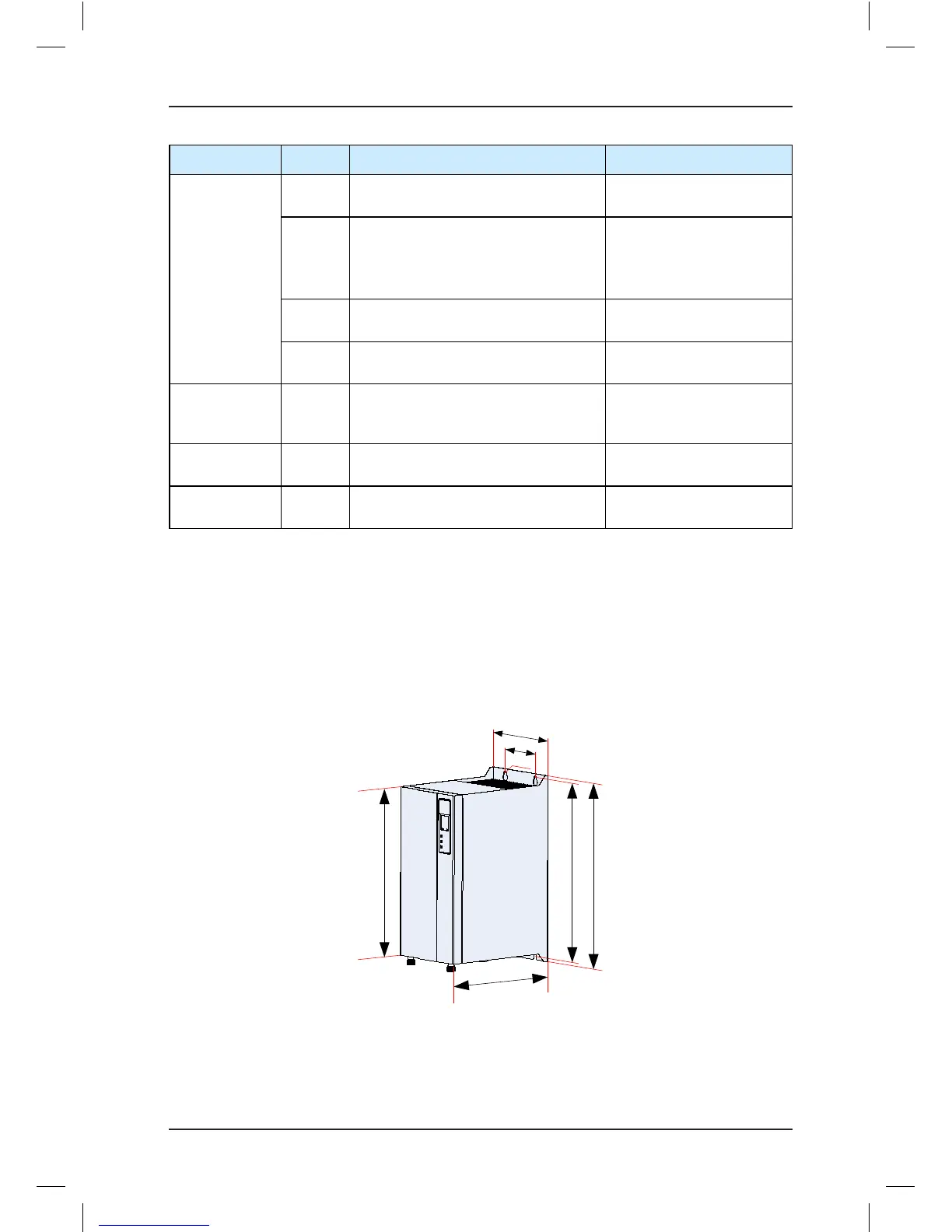

Figure 2-4 Appearance and dimensions of braking unit
φ5
110
60
236 247
224
165
Unit: mm
Select the braking resistor based on the conguration listed in the following table.
