Chapter 2 Product Information
2.1 System Conguration of the NICE1000
new
The NICE1000
new
series integrated elevator control system combines the functions of both
elevator controller and high-performance vector control AC drive. As a high-performance
vector drive and control elevator system, it meets the standard applications of the elevator.
Users can also congure the optional door pre-open module and remote monitoring system
to meet requirements for more intelligent applications.
The following gure shows the system components.

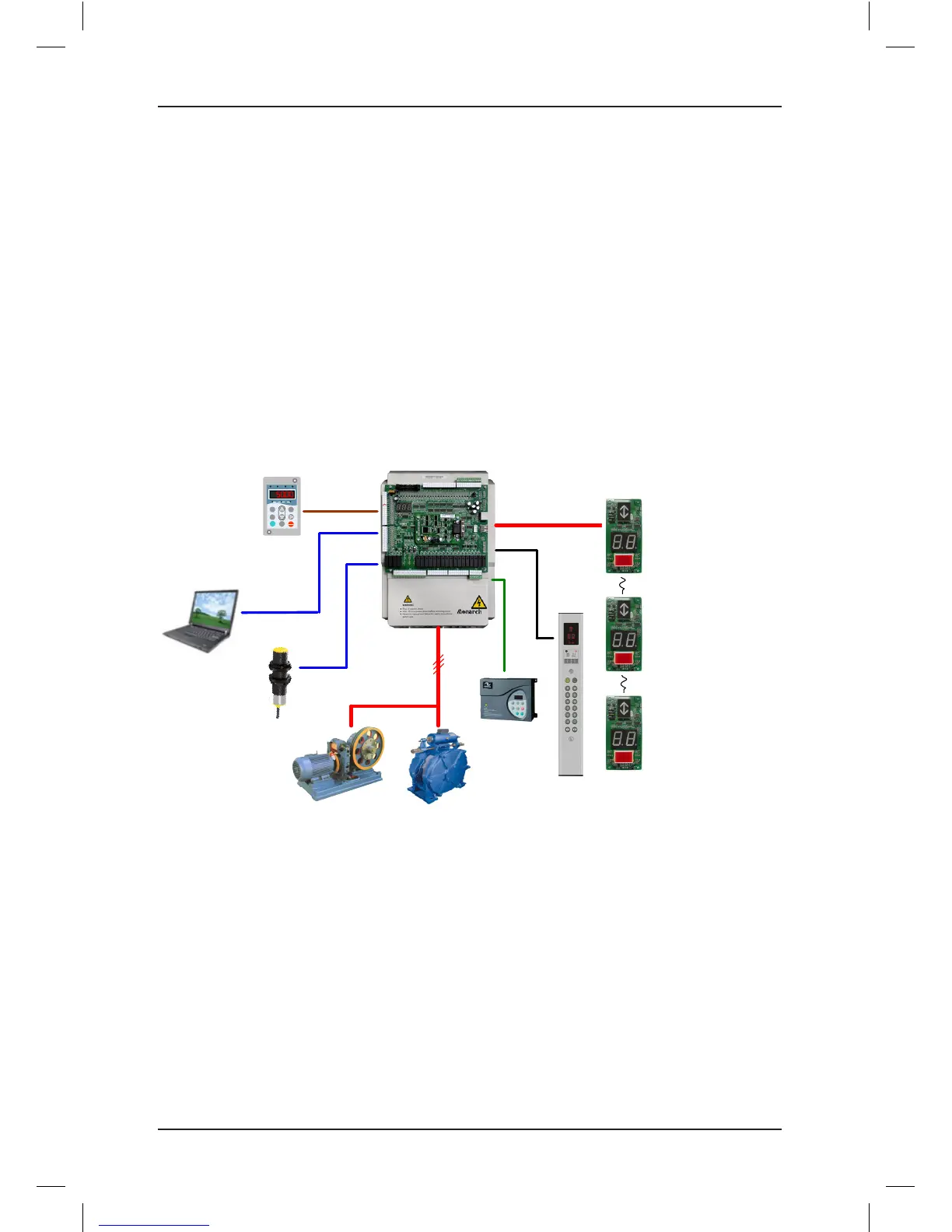

Figure 2-1 System components of the NICE1000
new
Operation
box
LED operation
panel (MDKE)
Hall display board
Host
computer
NICE1000
new
integrated controller
Door machine
controller
Load cell
MF.K
RUN
STOP
RES
QUICK
PRG ENTER
RUN
LOCAL/REMOT FED/REV TUNE/TC
RPM
%
A VHz
Synchronous or asynchronous motor
