NICE1000
new
User Manual Description of Function Codes
- 171 -

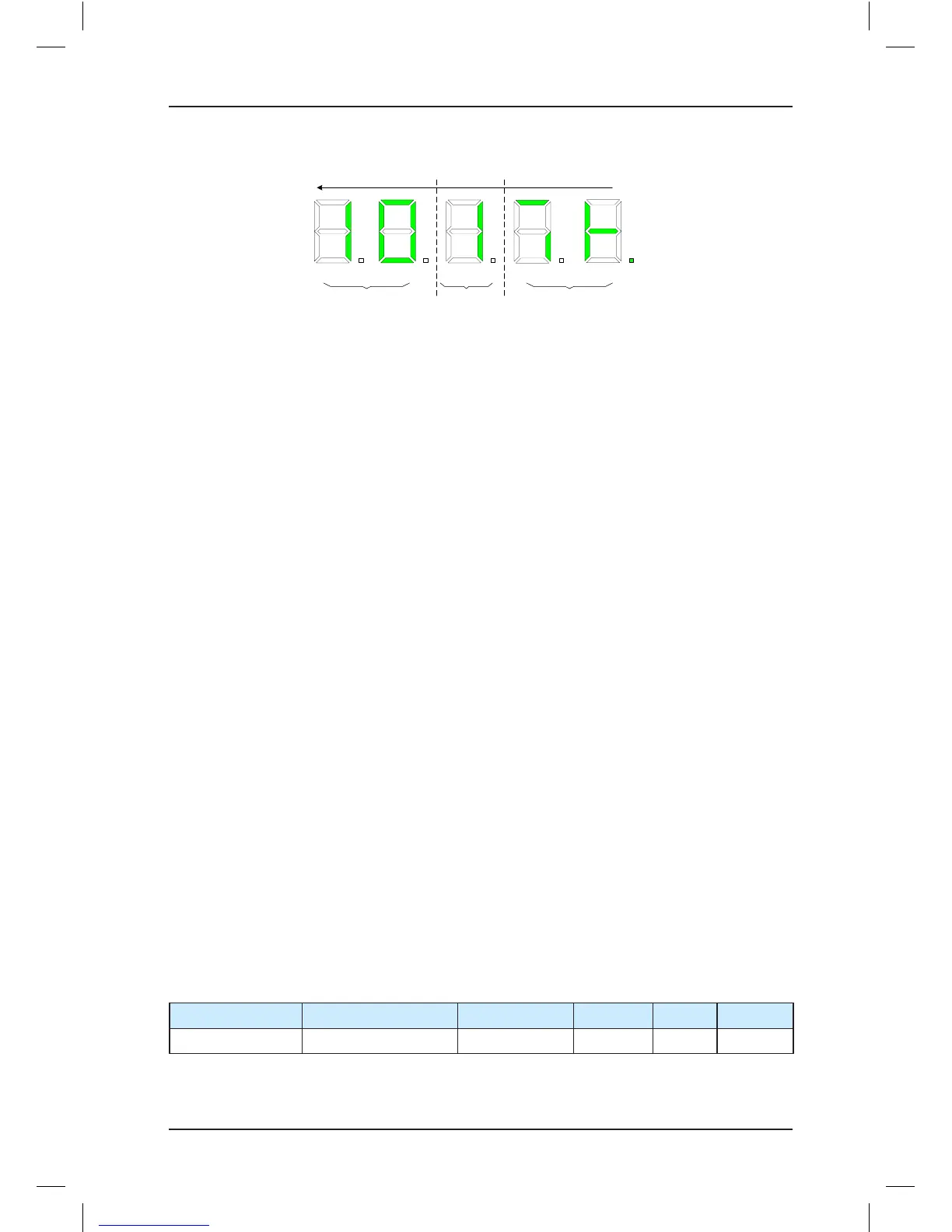

Figure 7-10 Viewing the leveling adjustment record
A
B
C
D
E
F
G
DP
5
4 3
2
A
B
C
D
E
F
G
DP
1
Each segment indicates a
function code.
Function code
State
As shown in the preceding gure, the left two LEDs and the right two LEDs respectively
show the adjustment bases of oor 1 and oor 2. If the value is larger than 30, it is upward
leveling adjustment; if the value is smaller than 30, it is downward leveling adjustment. The
default value "30" indicates that there is no leveling adjustment. The maximum adjustment
range is ±30 mm.
The leveling adjustment method is as follows:
1. Ensure that shaft auto-tuning is completed successfully, and the elevator runs properly
at normal speed.
2. Set Fr-00 to 1 to enable the car leveling adjustment function. Then, the elevator shields
hall calls, automatically runs to the top oor, and keeps the door open after arrival. If the
elevator is at the top oor, it directly keeps the door open.
3. Go into the car, press the top oor button, and the leveling position is changed 1 mm
upward; press the bottom floor button, and the leveling position is changed 1 mm
downward. The value is displayed in the car.
Positive value: up arrow + value, negative value: down arrow + value, adjustment range:
±30 mm
4. After completing adjustment for the current oor, press the top oor button and bottom
oor button in the car at the same time to save the adjustment result. The car display
restores to the normal state. If the leveling position of the current floor need not be
adjusted, press the top oor button and bottom oor button in the car at the same time
to exit the leveling adjustment state. Then, car calls can be registered.
5. Press the door close button, and press the button for the next oor. The elevator runs
to the next oor and keeps the door open after arrival. Then, you can perform leveling
adjustment.
6. After completing adjustment for all floors, set Fr-00 to 0 to disable the leveling
adjustment function. Otherwise, the elevator cannot be used.
Group FF: Factory Parameters
Group FP: User Parameters
Function Code Parameter Name Setting Range Default Unit Property
FP-00 User password 0–65535 0 -
It is used to set the user password. The value 0 indicates that no password is used.
