NICE1000
new
User Manual Product Information
- 23 -
2.2 Designation Rules and Model Description
2.2.1 Designation Rules and Nameplate

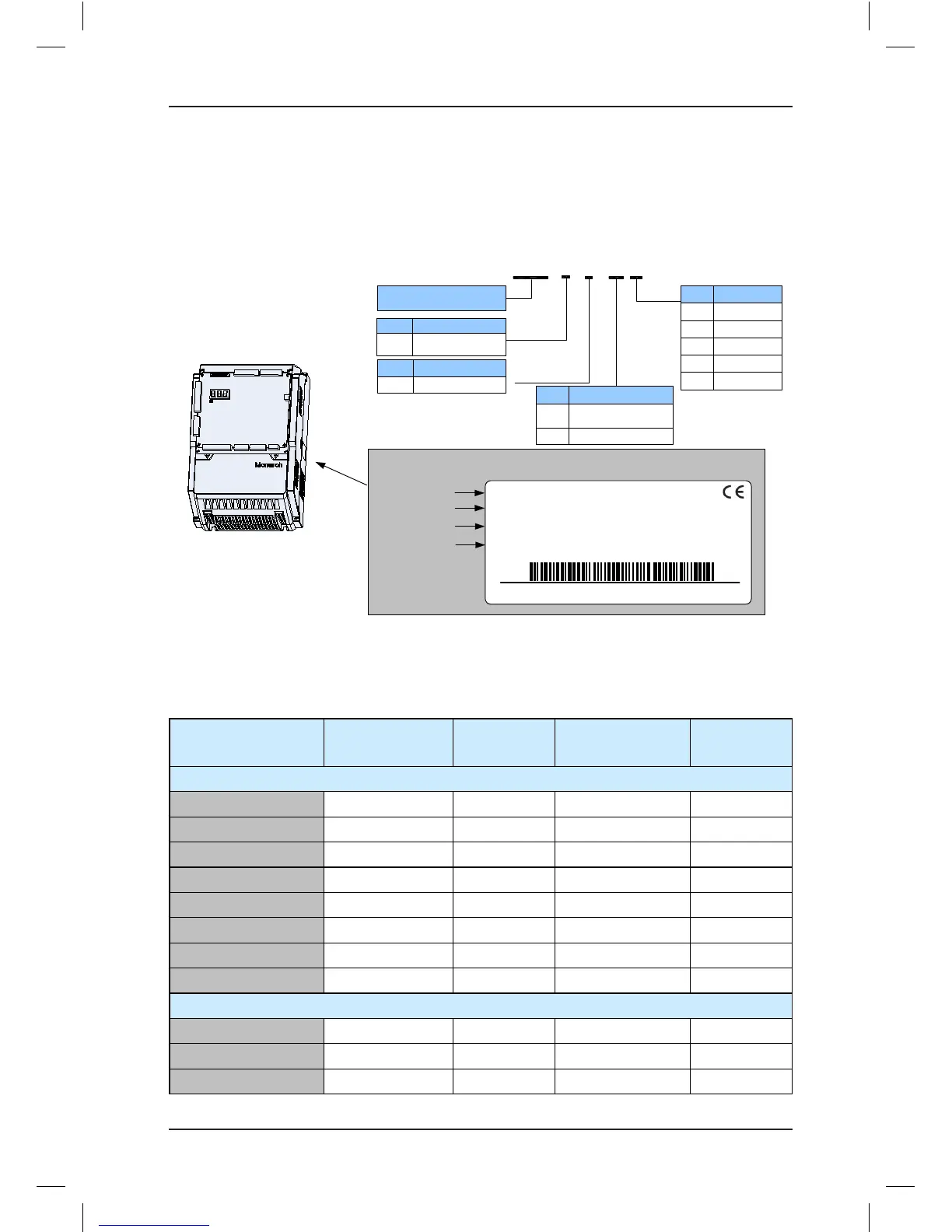

Figure 2-2 Designation rules and nameplate of the NICE1000
new
Nameplate
Controller model
Rated input
Rated output
Manufacturing SN
NICELH40 15
NICE series integrated
elevator controller
H 1000
new
Mark
Motor Type
L
Mark Controller Type
Specialized for
elevators
20
Single-phase/
Three-phase 220 V
Mark
Voltage Class
40
Three-phase 380 V
02 2.2 kW
Mark
03 3.7 kW
... ...
Power Class
30 30 kW
45 45 kW
Nameplate
position
MODEL: NICE-L-H-4015
INPUT: 3PH AC 380~440V 36A 50/60Hz
OUTPUT: 3PH AC 0~440V 33A 0~90Hz 15KW
Suzhou MONARCH Control Technology Co.Ltd
S/N: 010150602803825403
NICE1000
new
Integrated elevator
controller
2.3 Models and Specications
Table 2-1 NICE1000
new
models and specications
Controller Model
Power Capacity
(kVA)
Input Current
(A)
Output Current
(A)
Motor Power
(kW)
Single-phase 220 V, range: -15% to 20%
NICE-L-H-2002 2.0 9.2 5.2 1.1
NICE-L-H-2003 2.9 13.3 7.5 1.5
220-NICE-L-H-4007 3.9 17.9 10.3 2.2
220-NICE-L-H-4011 5.9 25.3 15.5 3.7
220-NICE-L-H-4015 7.3 31.3 19 4.0
220-NICE-L-H-4018 8.6 34.6 22.5 5.5
220-NICE-L-H-4022 10.6 42.6 27.7 11
220-NICE-L-H-4030 13.1 52.6 34.6 15
Three-phase 220 V, range: -15% to 20%
NICE-L-H-2002 4.0 11.0 9.6 2.2
NICE-L-H-2003 5.9 17.0 14.0 3.7
220-NICE-L-H-4007 7.0 20.5 18.0 4.0
