Mechanical and Electrical Installation NICE1000
new
User Manual
- 48 -

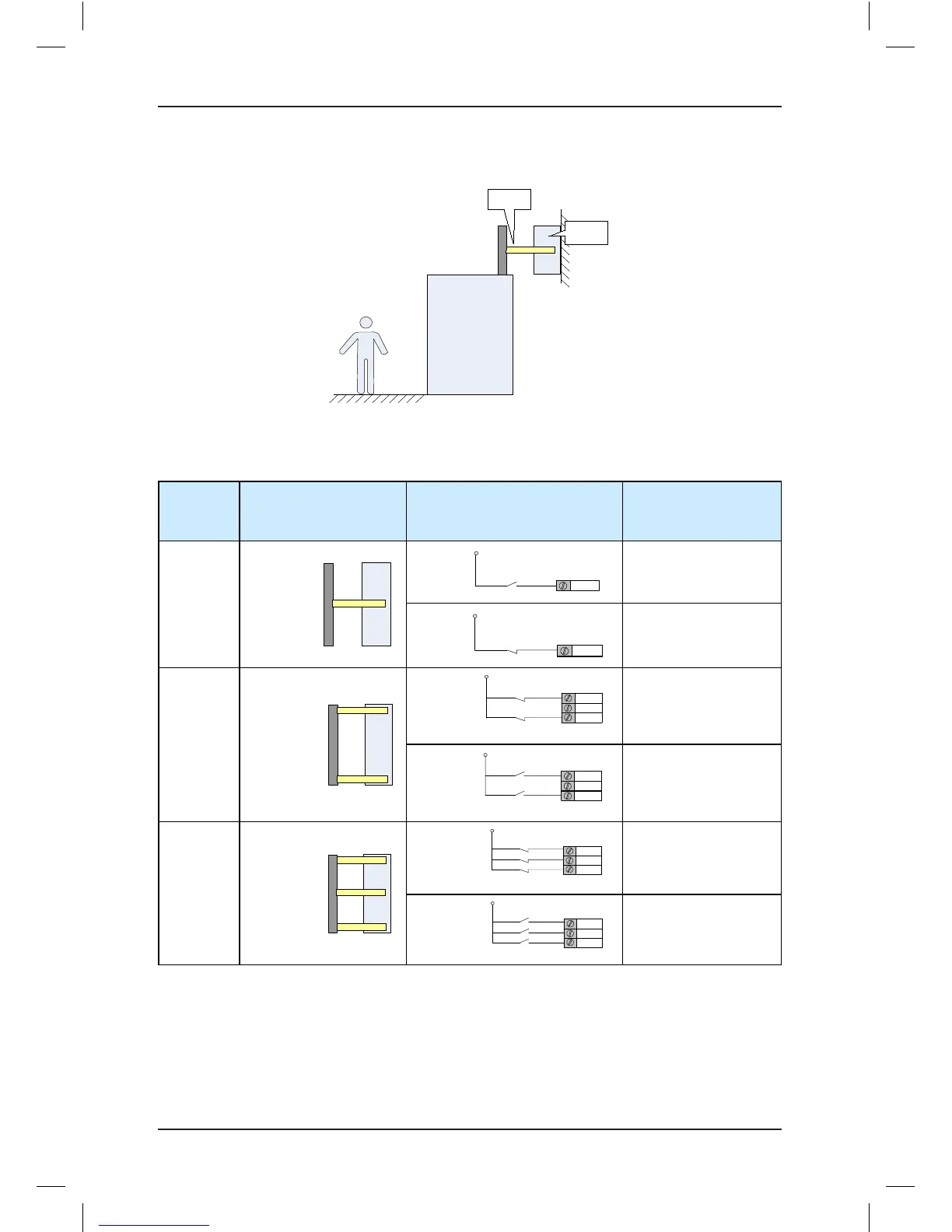

Figure 3-12 Installation of leveling signals
Car
Door zone signal
detection
Leveling
switch
Leveling
plate
The following table describes the installation requirements of leveling switches
Table 3-10 Installation requirements of leveling switches
Number of
Leveling
Switches
Installation Method
Connecting to Input Terminals of
Controller
Setting of Function
Code
1
Door zone
signal detection
+24 VDC
Door zone
signal
X1
F5-01 = 03 (NO)
X1
+24 VDC
Door zone
signal
F5-01 = 103
(normally closed, NC)
2
Up leveling
signal detection
Down leveling
signal detection
+24 VDC
(X22 and X24 are recommended)
Down leveling
Up leveling
X22
X23
X24
F5-22 = 101 (NC)
F5-24 = 102 (NC)
Down leveling
Up leveling
X22
X23
+24 VDC
(X22 and X24 are recommended)
X24
F5-22 = 01 (NO)
F5-24 = 02 (NO)
3
Door zone
signal detection
Up leveling
signal detection
Down leveling
signal detection
+24 VDC
(X22, X23, and X24 are recommended)
Down leveling
Up leveling
X22
X23
X24
Door zone signal
F5-22 = 101 (NC)
F5-23 = 103 (NC)
F5-24 = 102 (NC)
+24 VDC
(X22, X23, and X24 are recommended)
X22
X23
X24
Down leveling
Up leveling
Door zone signal
F5-22 = 01 (NO)
F5-23 = 03 (NO)
F5-24 = 02 (NO)
3.6.2 Installation of Slow-Down Switches
The slow-down switch is one of the key protective components of the NICE1000
new
,
protecting the elevator from over travel top terminal or over travel bottom terminal at
maximum speed when the elevator position becomes abnormal.
The NICE1000
new
system supports one pair of slow-down switches.
