Use of the Commissioning Tools NICE1000
new
User Manual
- 54 -
QUICK
Quick Enter or exit Level-I quick menu.
MF.K
Fault hiding
Press this key to display or hide the fault information in
the fault state, which facilitates parameter viewing.
4.1.3 Operation Procedure
The LED operation panel adopts three-level menu.
The three-level menu consists of function code group (Level I), function code (Level II), and
function code setting value (level III), as shown in the following gure.

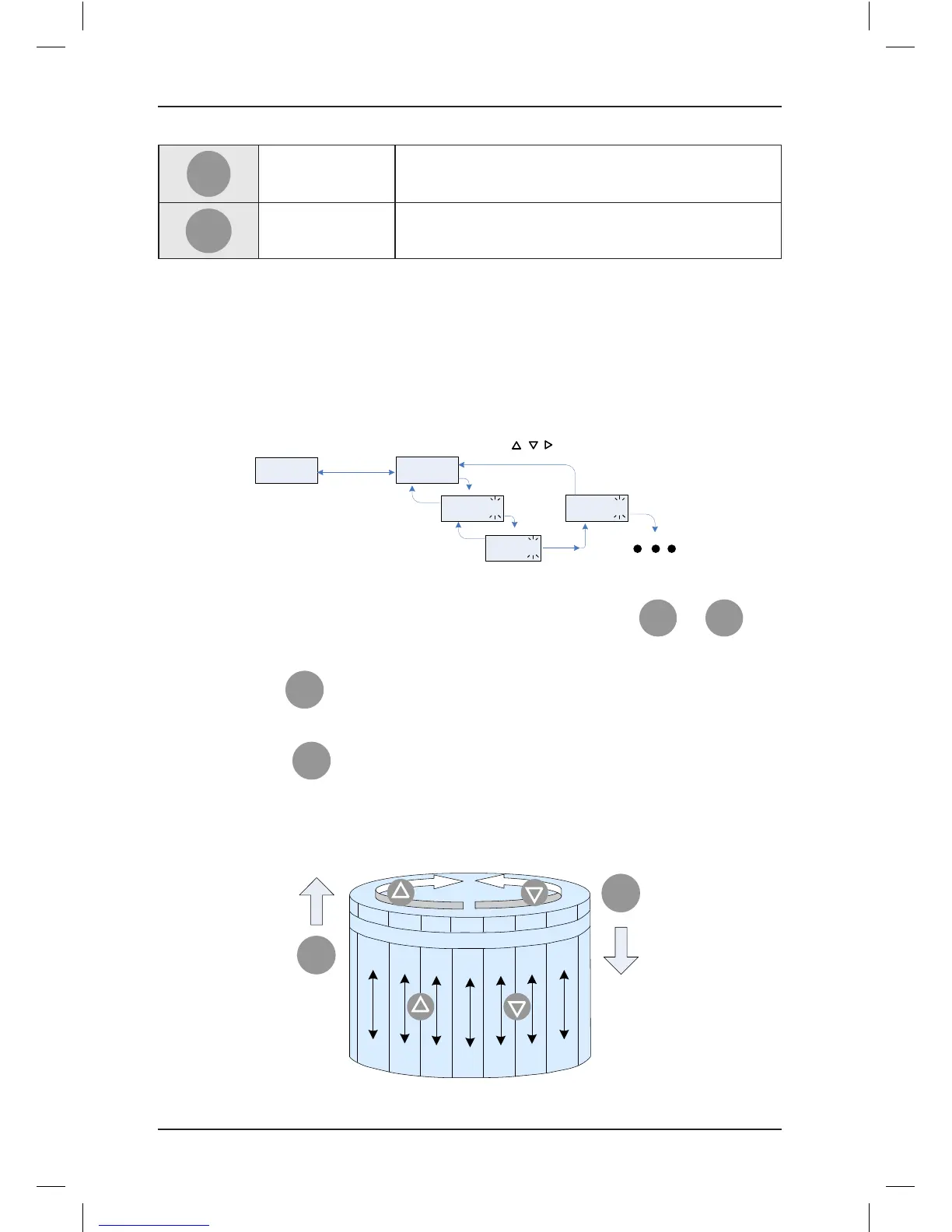

Figure 4-2 Operation procedure on the operation panel
F0
F0.06
50.00
(Select the function
code group)
(Select the
function code)
(Set the value of
the function code)
Level-I menu
Level-II menu
Level-III menu
PRG
PRG
Not to save
the setting
ENTER
To save
the setting
ENTER
0.000
ENTER
Status parameter
PRG
F0.07
ENTER
PRG
Next function
code
(default display)
If there is a blinking digit, press
/ / to modify the digit.
You can return to Level II menu from Level III menu by pressing
PRG
or
ENTER
. The
difference between the two is as follows:
After you press
ENTER
, the system saves the parameter setting rst, and then goes back
to Level II menu and shifts to the next function code.
After you press
PRG
, the system does not save the parameter setting, but directly
returns to Level II menu and remains at the current function code.
The following gure shows the shift between the three levels of menus.
Figure 4-3 Shift between the three levels of menus
Fd
FX-00
PRG
ENTER
FE
FP
F0
F1
F2
F3
FE-00
FE-56
FP-02
F0-07
F1-25
F2-18
F3-21
FP-00
F0-00
F1-00
F2-00
F3-00
Fd-00
Fd-26
