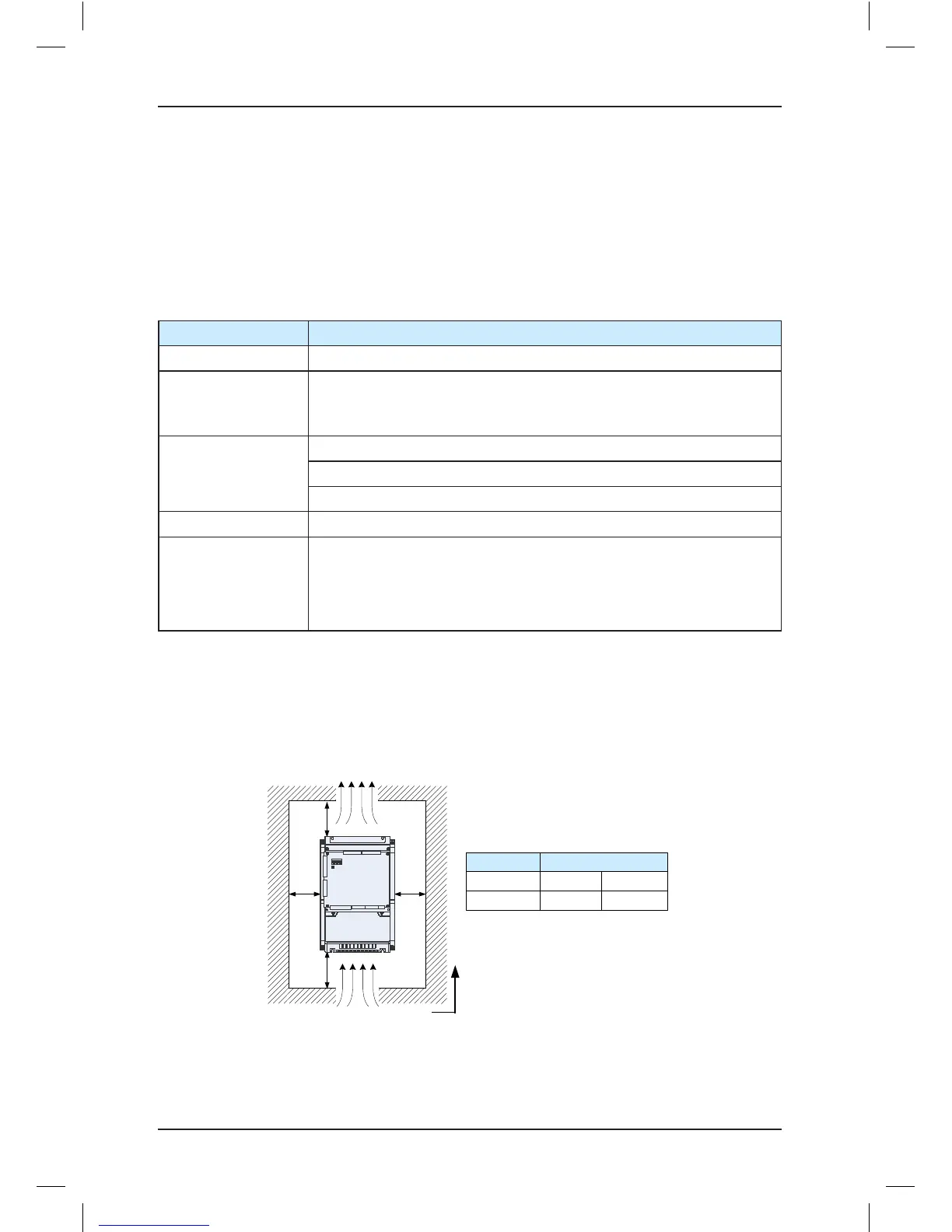

Mechanical and Electrical Installation NICE1000
new
User Manual
- 34 -
Chapter 3 Mechanical and Electrical Installation
3.1 Installation Requirements
3.1.1 Installation Environment Requirements
Item Requirements
Ambient temperature -10°C to 50°C
Heat dissipation
Install the controller on the surface of an incombustible object, and
ensure that there is sufcient space around for heat dissipation.
Install the controller vertically on the support using screws.
Mounting location
Free from direct sunlight, high humidity and condensation
Free from corrosive, explosive and combustible gas
Free from oil dirt, dust and metal powder
Vibration Less than 0.6 g
Protective enclosure
The controllers of plastic housing are whole-unit built-in products
operated through remote control and need to be installed in the nal
system. The nal system must have the required reproof cover,
electrical protective cover and mechanical protective cover, and satisfy
the regional laws & regulations and related IEC requirements.
3.1.2 Installation Clearance Requirements
The clearance that needs to be reserved varies with the power class of the NICE1000
new
, as
shown in the following gure.
Figure 3-1 Clearance around the NICE1000
new
for installation
B
B
A
A
Hot air
Cold air
1.1-18.5 kW
A
10 mm
B
100 mm
22-45 kW
A
50 mm
B
100 mm
Installation clearance requirements
on the NICE1000
new
of different
power classes
Power Class
Clearance Requirements
The controller should be
installed vertically upward.
NICE1000
new
