NICE1000
new
User Manual Mechanical and Electrical Installation
- 37 -

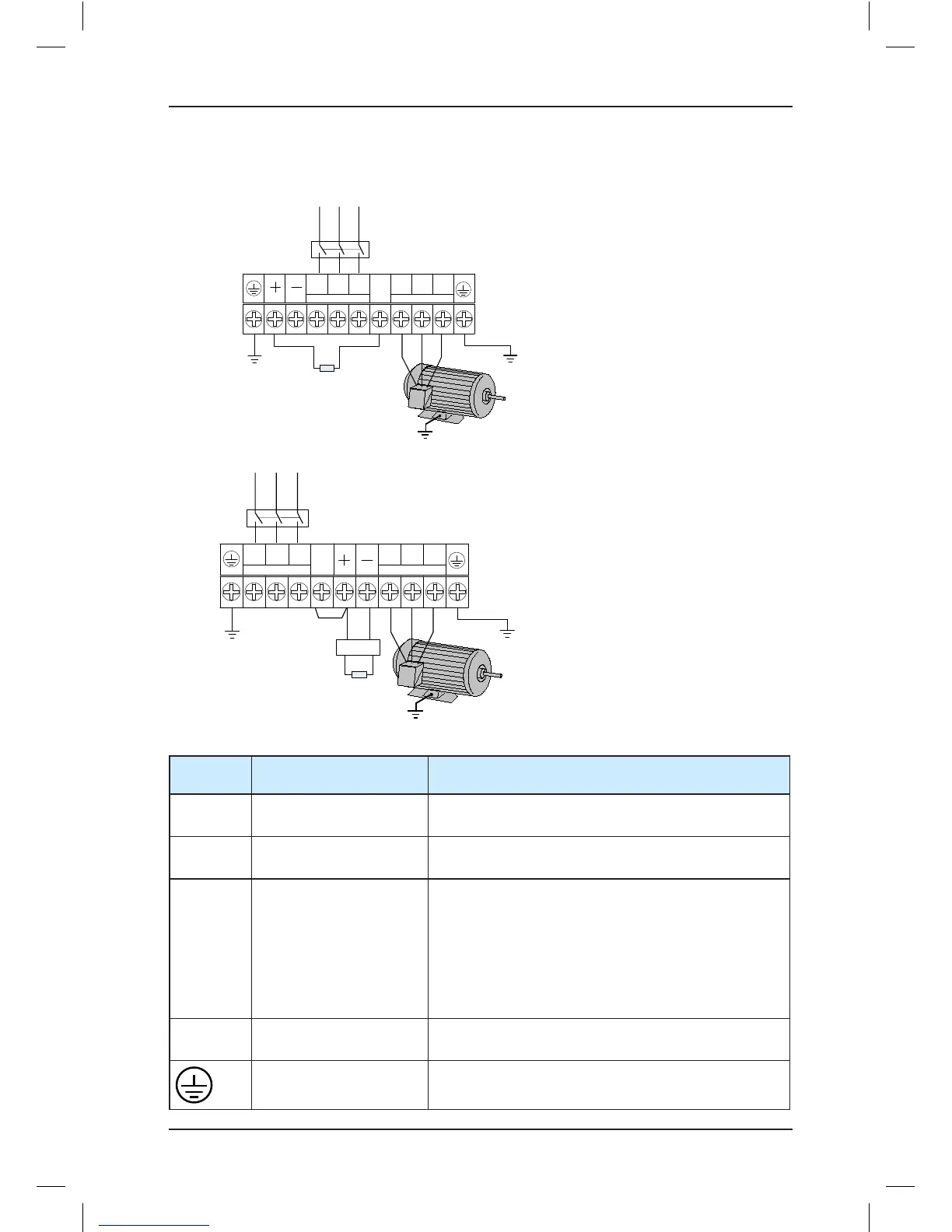

Figure 3-5 Wiring of the main circuit
R
S
T
PB
U
V
W
POWER MOTOR
Three-phase AC
power supply
Safety contactor
Braking resistor
(For models of below 37 kW)
Braking unit
R
S
T
PB
U
V
W
POWER
MOTOR
Three-phase AC
power supply
Safety contactor
Braking resistor
MDBUN
Jumper bar
(For models of 37 kW and above)
Table 3-1 Description of main circuit terminals
Terminal Name Description
R, S, T
Three-phase power input
terminals
Provide three-phase power supply.
(+), (-)
Positive and negative
terminals of DC bus
Connect the external braking unit and energy feedback
unit for models of 37 kW and above.
(+), PB (P)
Terminals for connecting
braking resistor
(+), PB: Connect the braking resistor for models of
below 37 kW.
(+), (P): Connect the DC reactor for models of 37 kW
and above.
At delivery, the (+) and P terminals are shorted with the
jumper bar. If you need not connect the DC reactor, do
not remove the jumper bar.
U, V, W
Controller output
terminals
Connect the three-phase motor.
Grounding terminal Must be grounded.
