4-4 Motorola RF Switch System Reference Guide
4.2 Viewing Network IP Information
Use the Internet Protocol screen to view and configure network-associated IP details. The Internet Protocol
screen contains tabs supporting the following configuration activities:
• Configuring DNS
• Configuring IP Forwarding
• Viewing Address Resolution
4.2.1 Configuring DNS
Use the Domain Name System tab to view Server address information and delete or add severs to the list
of servers available. To configure DNS:
1. Select Network > Internet Protocol from the main tree menu.
2. Select the Domain Network System tab (displayed by default).
Use the Show Filtering Options link to view the details displayed in the table.

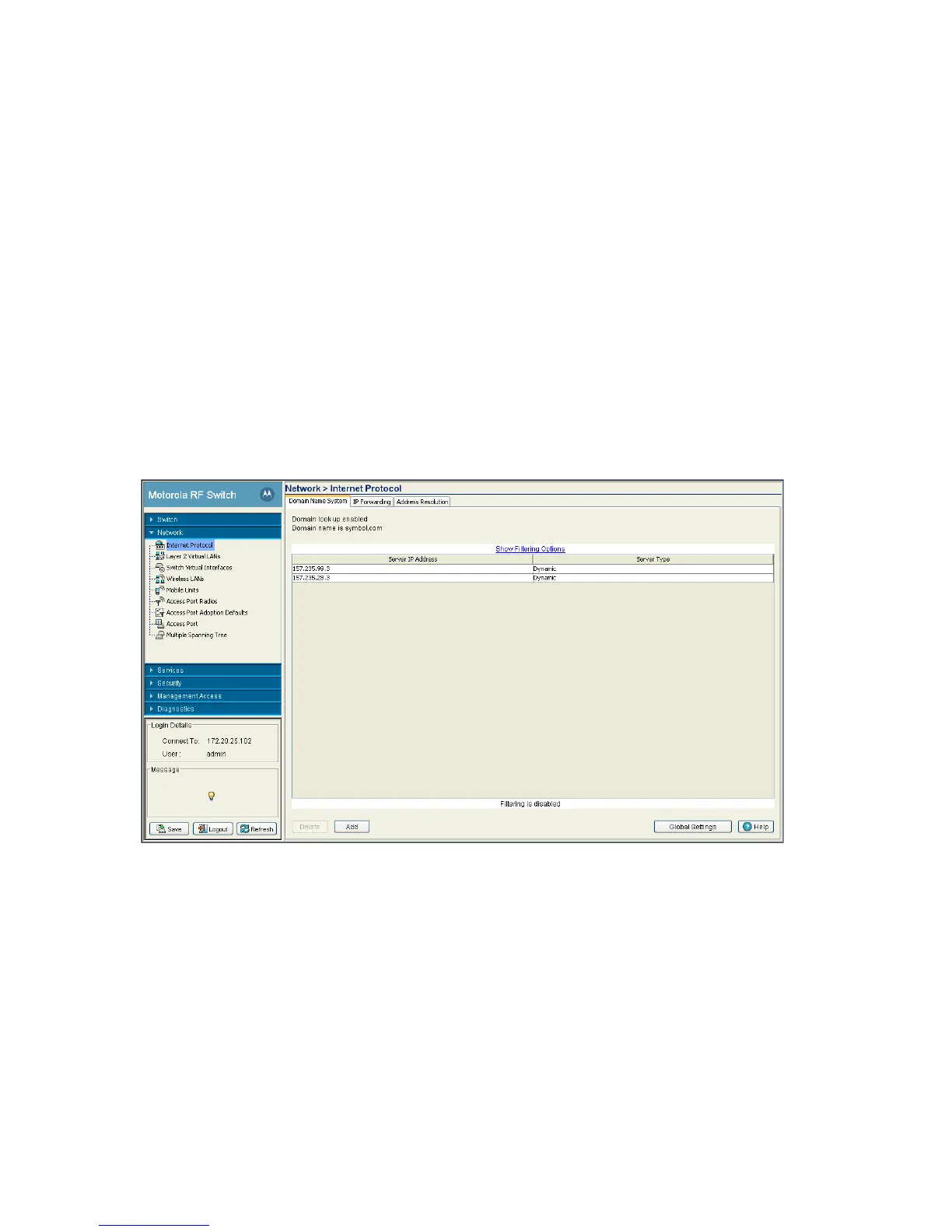

3. The Domain Name System tab displays DNS details in a tabular format.
4. Select an IP address from the table and click the Delete button to remove the selected entry from the list.
5. Click the Add button to display a screen used to add another domain name server. For more information,
see Adding an IP Address for a DNS Server on page 4-5.
Server IP Address Displays the IP address of the domain name server(s) the system can use for
resolving domain names to IP addresses. Domain look up order is determined by
the order of the servers listed. The first server queried is the first server displayed.
Therefore, ensure obsolete addresses are periodically removed.
Server Type Displays whether the DNS IP address entry has been created statically (manually)
or dynamically. The DHCP server provides the dynamic DNS IP address entry
displayed. A static DNS IP address can be created by clicking the Add button.
