Motorola RFS Series System Reference Guide

Switch Security 6-61
9. Enter the IP address to be used during NAT in the NAT Address text field.
10.Refer to the Status field for the state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
11.Click OK to use the changes to the running configuration and close the dialog.
12.Click Cancel to close the dialog without committing updates to the running configuration.
6.5.2 Defining Static NAT Translations
Static NAT creates a permanent, one-to-one mapping between an address on an internal network and a
perimeter or external network. To share a Web server on a perimeter interface with the Internet, use static
address translation to map the actual address to a registered IP address. Static address translation hides the
actual address of the server from users on insecure interfaces. Casual access by unauthorized users becomes
much more difficult. Static NAT requires a dedicated address on the outside network for each host.

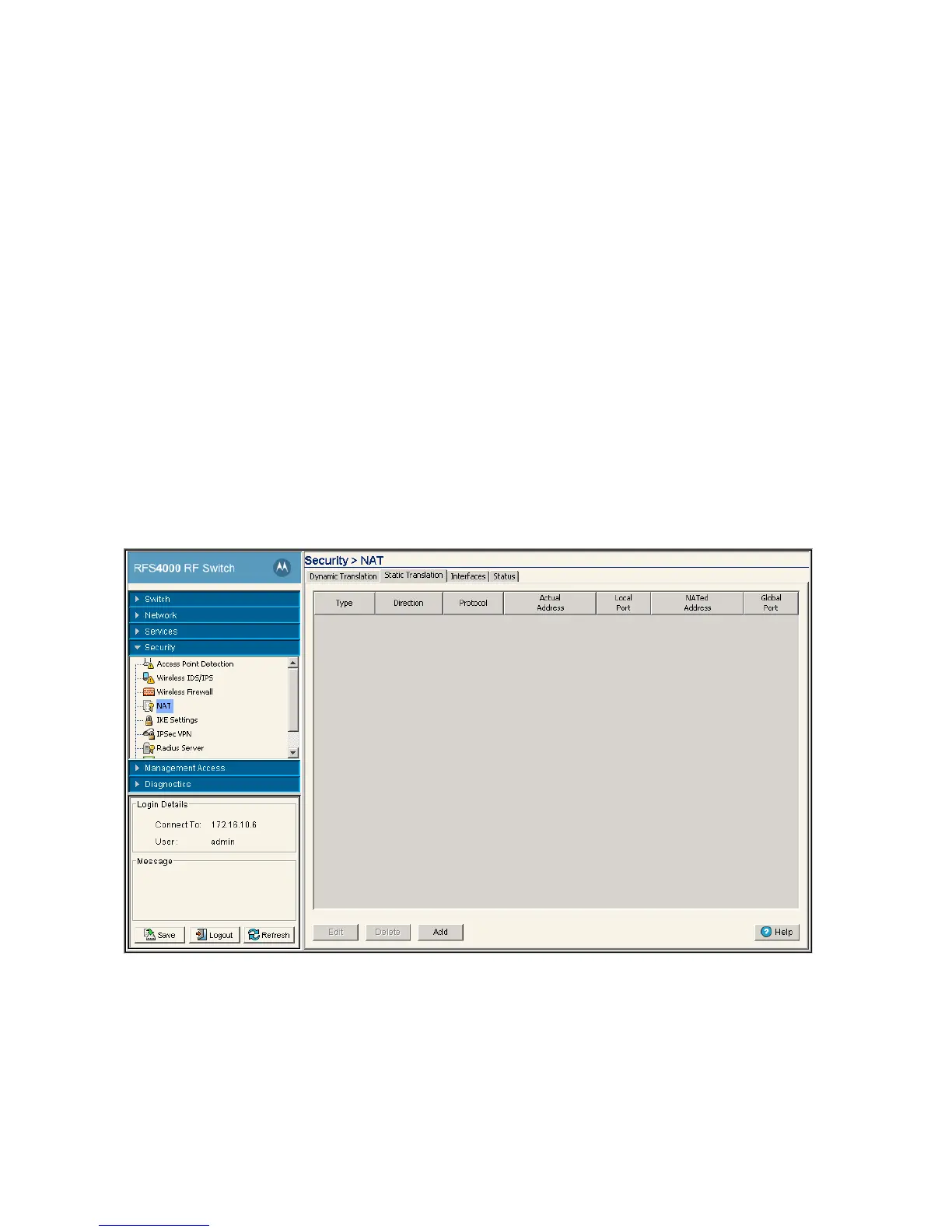

Refer to the NAT screen’s Static Translation tab to view existing static NAT configurations available to
switch.
To view and add/edit a dynamic NAT configuration:
1. Select Security > NAT from the main menu tree.
2. Click the Static Translation tab.
