4-142 Motorola RF Switch System Reference Guide
6. Enter a value between 0 and 15 for the Contention Window minimum value.
The CW Minimum is combined with the CW Maximum to make the Contention Window. From this range,
a random number is selected for the back off mechanism. Lower values are used for higher priority traffic.
7. Enter a value between 0 and 15 for the Contention Window maximum value.
The CW Maximum is combined with the CW Minimum to make the Contention Window. From this range,
a random number is selected for the back off mechanism. Lower values are used for higher priority traffic.
8. Refer to the Status field for the current state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
9. Click OK to use the changes to the running configuration and close the dialog.
10.Click Cancel to close the dialog without committing updates to the running configuration.
4.9 Configuring Access Ports
Use the Access Port screen to view device hardware address and software version information for adopted
and unadopted Access Ports.
4.9.1 Viewing Adopted Access Ports
Use the Adopted AP tab for gathering device hardware address and software version information for the
Access Port. Use this information to determine whether the Access Port’s version supports the optimal
feature set available for the network.
To view existing adopted Access Port information:

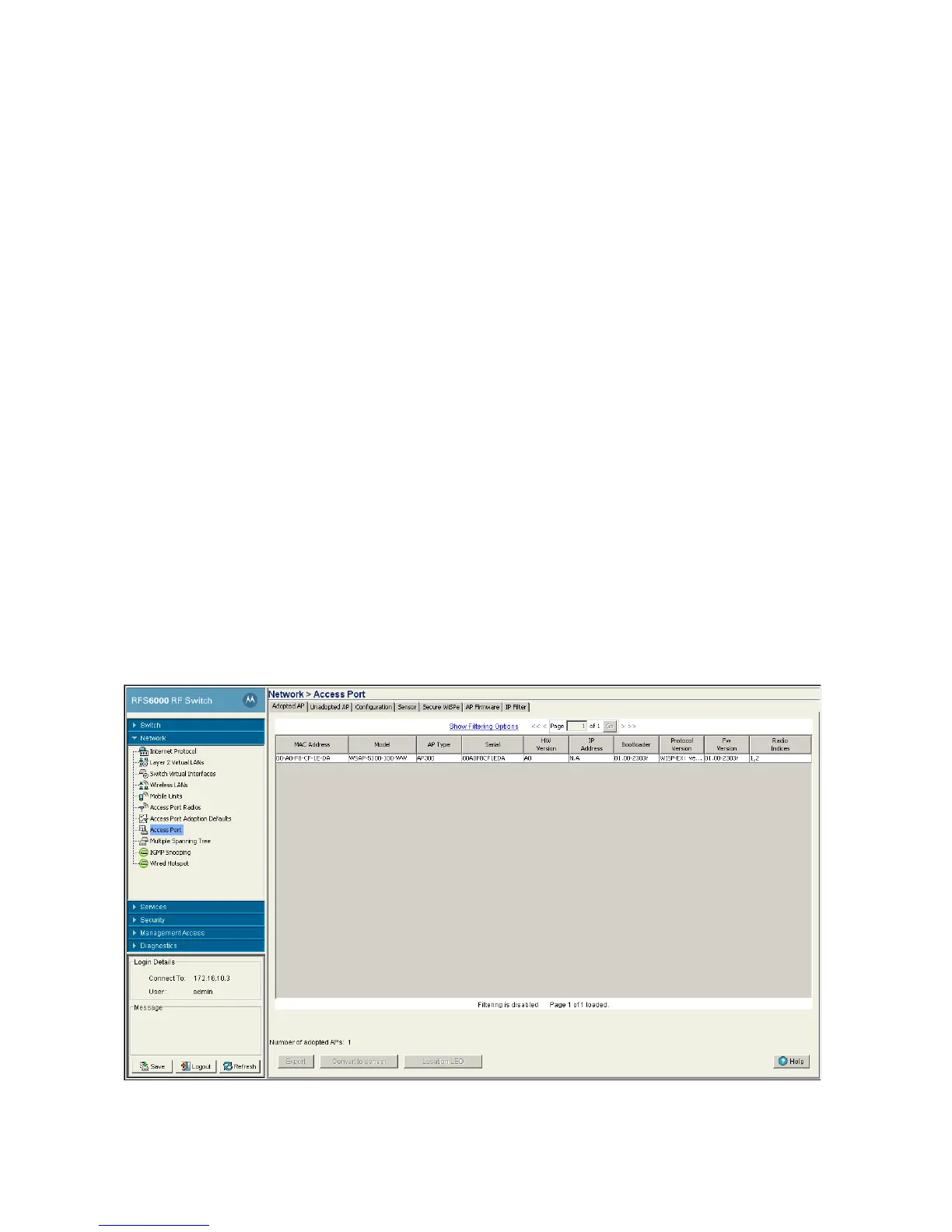

1. Select Network > Access Port from the main menu tree.
2. Click the Adopted AP tab.
