Switch Security 6-79
6.7.2 Defining the IPSec VPN Remote Configuration
Use the IPSec VPN Remote tab to configure the DNS and/or WINS Servers used to route packets to the
remote end of the IPSec VPN tunnel. The Remote tab is also used for defining the IP address range used
within the IPSec VPN tunnel and configuring the authentication scheme for user permissions within the IPSec
VPN tunnel.
To define the IPSEc VPN’s remote configuration:

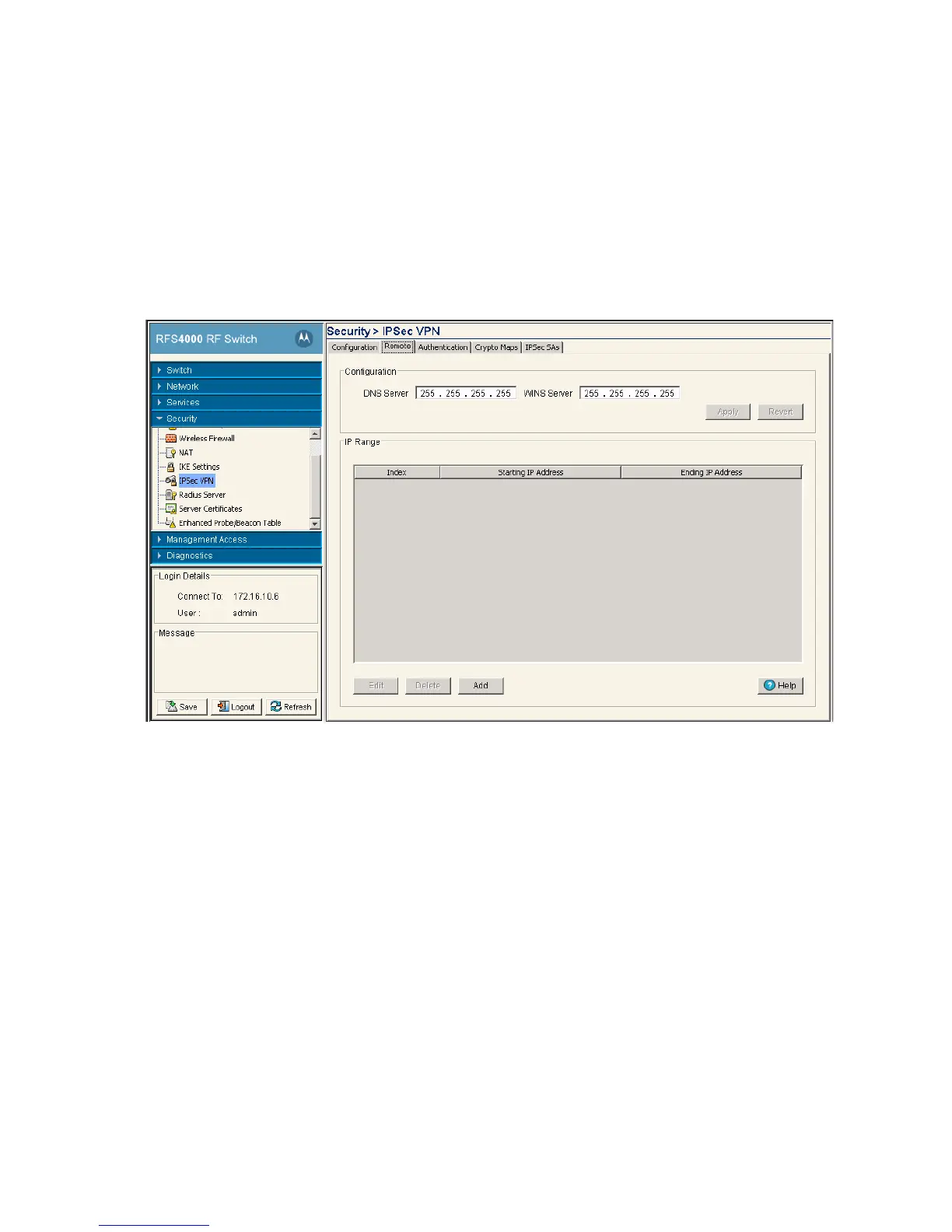

1. Select Security > IPSec VPN from the main menu tree.
2. Click the Remote tab.
3. Refer to the Configuration field to define the following:
4. Click the IP Range tab to view the following:.
DNS Server Enter the numerical IP address of the DNS Server used to route information to the
remote destination of the IPSec VPN.
WINS Server Enter the numerical IP address of the WINS Server used to route information to
the remote destination of the IPSec VPN.
Apply Click Apply to save any updates made to the screen.
Revert Click the Revert button to disregard changes and revert back to the last saved
configuration.
Index Enter the index assigned to the range of IP addresses displayed in the Starting and
Ending IP Address ranges. This index is used to differentiate the index from others
with similar IP addresses.
