Switch Information 3-11

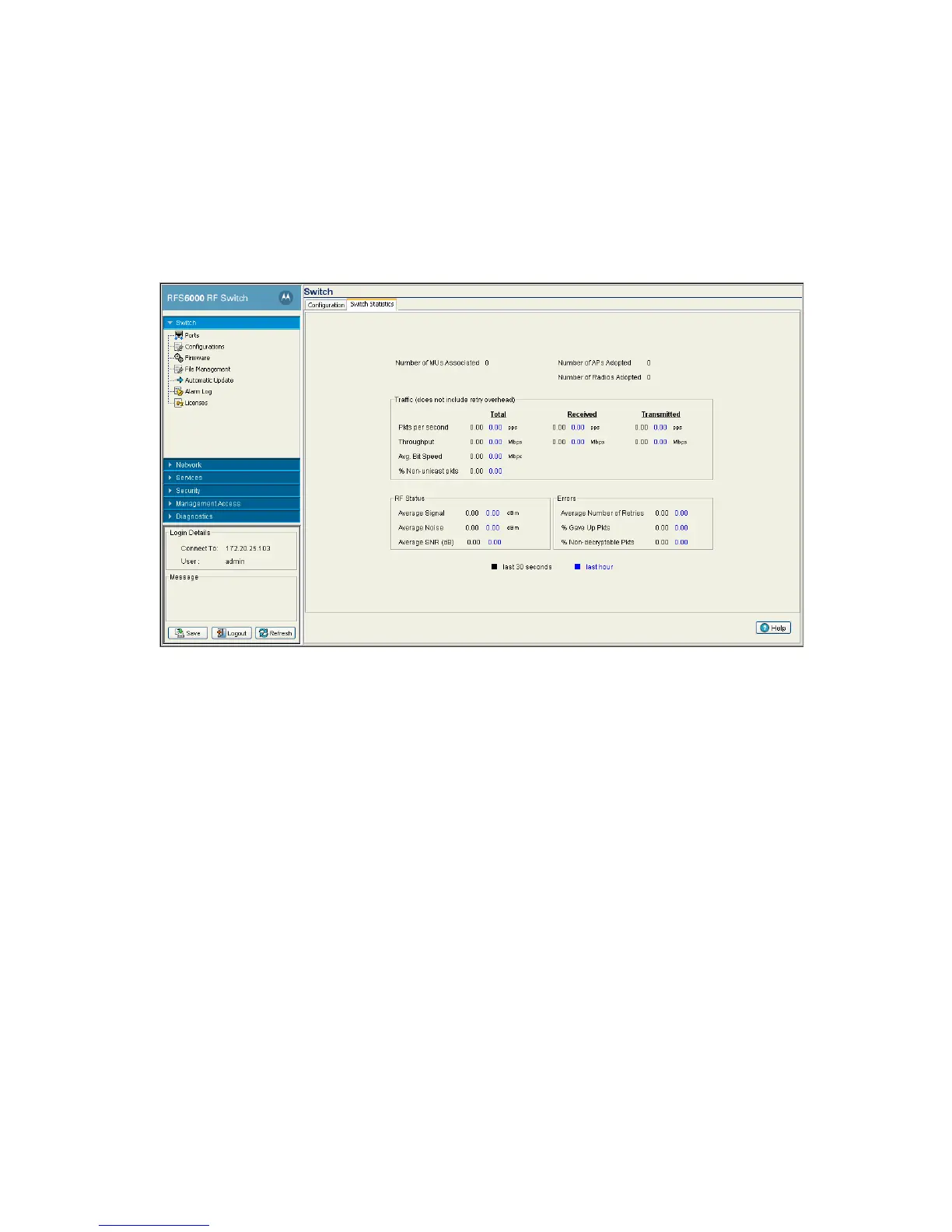

3.1.4 Viewing Switch Statistics
The Switch Statistics tab displays an overview of the recent network traffic and RF status for the switch.
To display the Switch Statistics tab:
1. Select Switch from the main menu tree.
2. Click the Switch Statistics tab at the top of the Switch screen.
3. Refer to the Switch Statistics field for the following read-only information about associated MUs:
4. Refer to the Traffic field to assess network traffic for associated APs and radios:
Number of MUs
Associated
Displays the total number of MUs currently associated to the switch.
Number of APs
Adopted
Displays the total number of Access Ports currently adopted by the switch.
Number of Radios
Adopted
Displays the total number of radios currently adopted by the switch.
Pkts per second Displays the packet transmission rate for received and transmitted packets over
last 30 seconds and 1 hour.
Throughput Displays the traffic throughput for packets received, packets transmitted, and total
packets over last 30 seconds and 1 hour.
