Motorola RFS Series System Reference Guide

6-8 Motorola RF Switch System Reference Guide
4. The Number of Unauthorized APs is simply the sum of all of Unapproved Radio MAC Addresses
detected.
5. Select the Display Adopted APs check box.
6. If a radio’s MAC address is listed incorrectly, highlight the MAC Address and click the Allow button.
Assign an Index and define the required device address information to move the device into the list of
approved Access Point MAC addresses. The number of Unapproved APs updates accordingly as devices
are added and removed.
7. Click the Export button to export the contents of the table to a Comma Separated Values file (CSV).
6.2.4 Unauthorized APs (MU Reported)

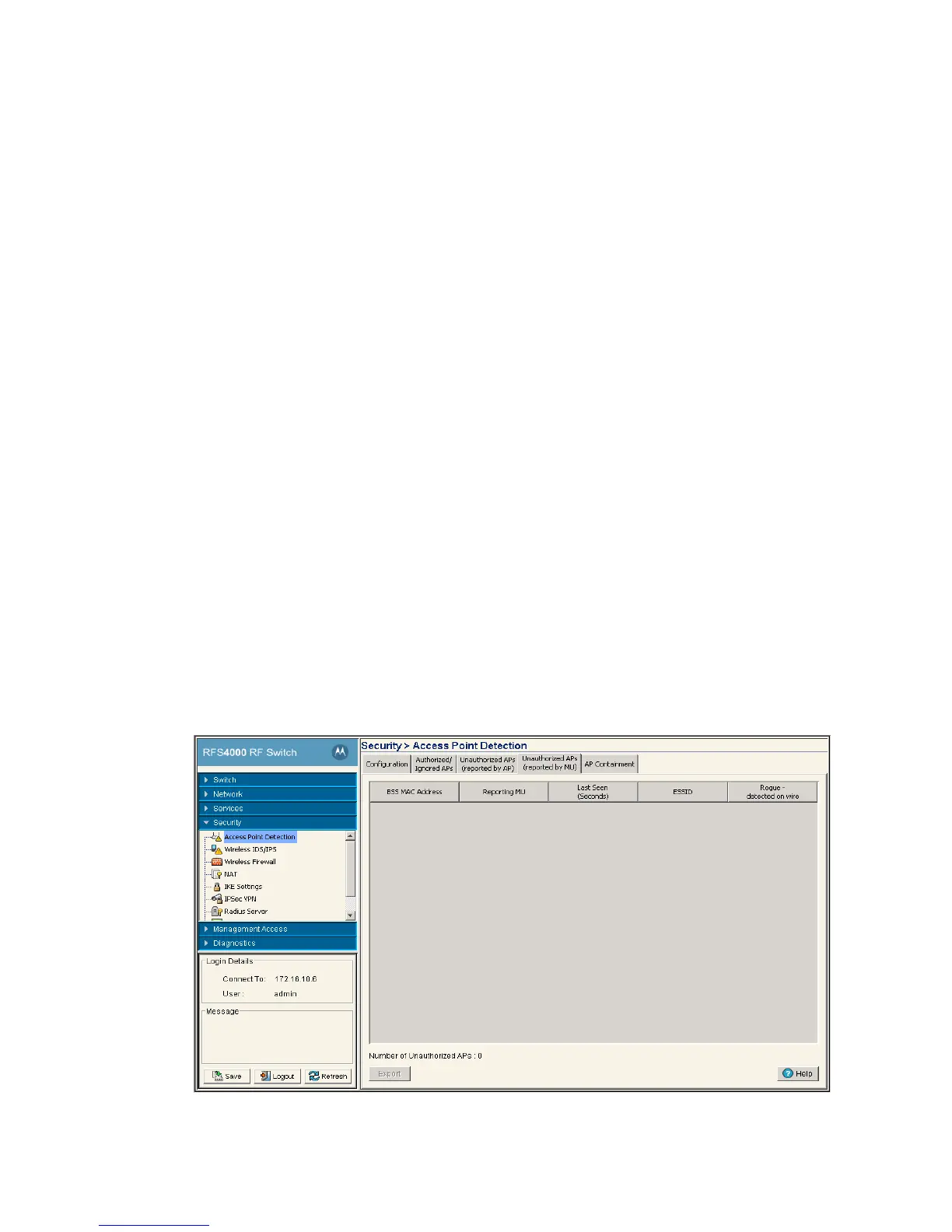

Use the Unauthorized APs (MU Reported) tab to review unapproved Access Points detected by
associated MUs. The criteria for Access Point approval was defined using the Security > Access Point >
Configuration screen, using the values defined within the MU Assisted Scan field.To view unapproved
Access Points detected by switch radio associated MUs:
1. Select Security > Access Point Detection from the main menu tree.
2. Click on the -Unauthorized APs (MU Reported) tab.
Signal Strength (in
dBm)
Displays the Relative Signal Strength Indicator (RSSI) for the detected (and
unapproved) AP. AP’s with a strong signal may pose a more significant risk within
the switch managed network.
Last Seen (in
Seconds)
Displays the time (in seconds) the Unapproved AP was last seen on the network
by the detecting AP.
ESSID Displays the ESSID of each Unapproved AP. These ESSIDs are device ESSIDs
observed on the network, but have yet to be added to the list of Approved APs and
are therefore interpreted as a threat. If an ESSID displays on the list incorrectly,
click the Allow button and add the ESSID to a new Allowed AP index.
