Network Setup 4-11

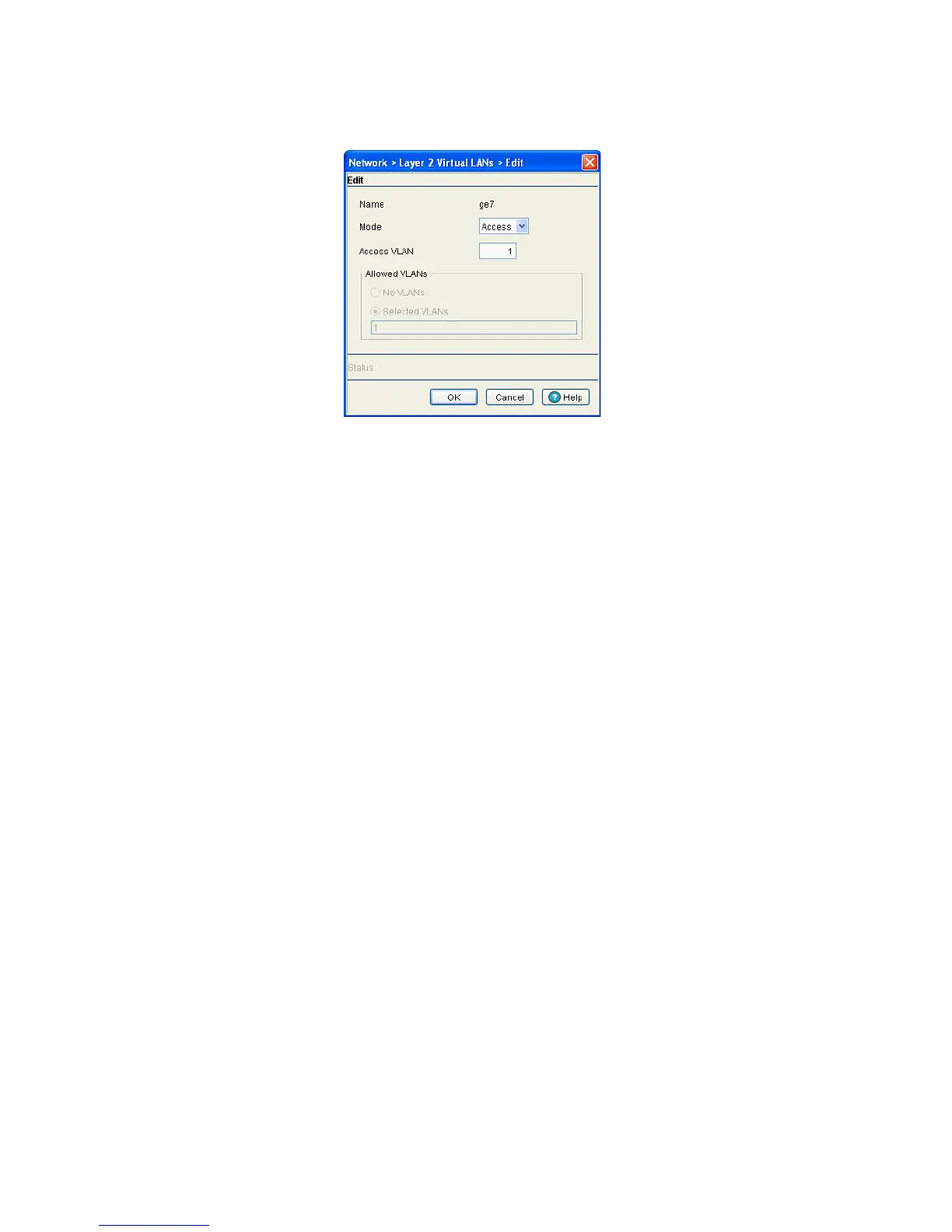

4. Use the Edit screen to modify the VLAN’s mode, access VLAN, and allowed VLAN designation.
5. Use the Edit screen to modify the following:
6. Refer to the Status field for the current state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
7. Click OK to use the changes to the running configuration and close the dialog.
8. Click Cancel to close the dialog without committing updates to the running configuration.
4.3.3 Viewing and Configuring Ports by VLAN
A Virtual Local Area Network (VLAN) is a switched network segmented by function or application rather than
a traditional LAN segmentation (based on physical location). VLANs allow a greater level of flexibility and
enable changes to the network infrastructure without physically disconnecting network equipment.
To view VLAN by Port information:
1. Select Network > Layer 2 Virtual LANs from the main menu tree.
Name Displays a read-only field and with the name of the Ethernet to which the VLAN is
associated.
Mode Use the drop-down menu to select the mode. It can be either:
• Access – This Ethernet interface accepts packets only form the native VLANs.
If this mode is selected, the Allowed VLANs field is unavailable.
• Trunk–The Ethernet interface allows packets from the given list of VLANs you
can add to the trunk.
Native VLAN Use this field to change the tag assigned to the native VLAN.
Allowed VLANs This section has the following 2 options (and is only available when Trunk is
selected from the Mode drop-down menu):
• No VLANs– Select this option if you do not wish to add any additional VLANs.
• Selected VLANs– Select this option if you wish to add additional VLANs.
