5.4.5 Managing Clustering Using the Web UI
Managing clustering in the Web UI is done through the Cluster GUI feature. The Cluster GUI feature updates
many key screens in the Web UI allowing you to see APs and MUs managed by all active members of a
cluster.
To enable the Cluster GUI feature:
1. Select Services > Redundancy from the main menu tree
The Redundancy screen displays with the Configuration tab selected
2. Configure redundancy settings using the Command Line Interface or the using the Web UI as described
in Chapter 5.4.1, Configuring Redundancy Settings.
3. Add any redundancy group members using the Command Line Interface or using the Web UI as described
in Chapter 5.4.3, Configuring Redundancy Group Membership.

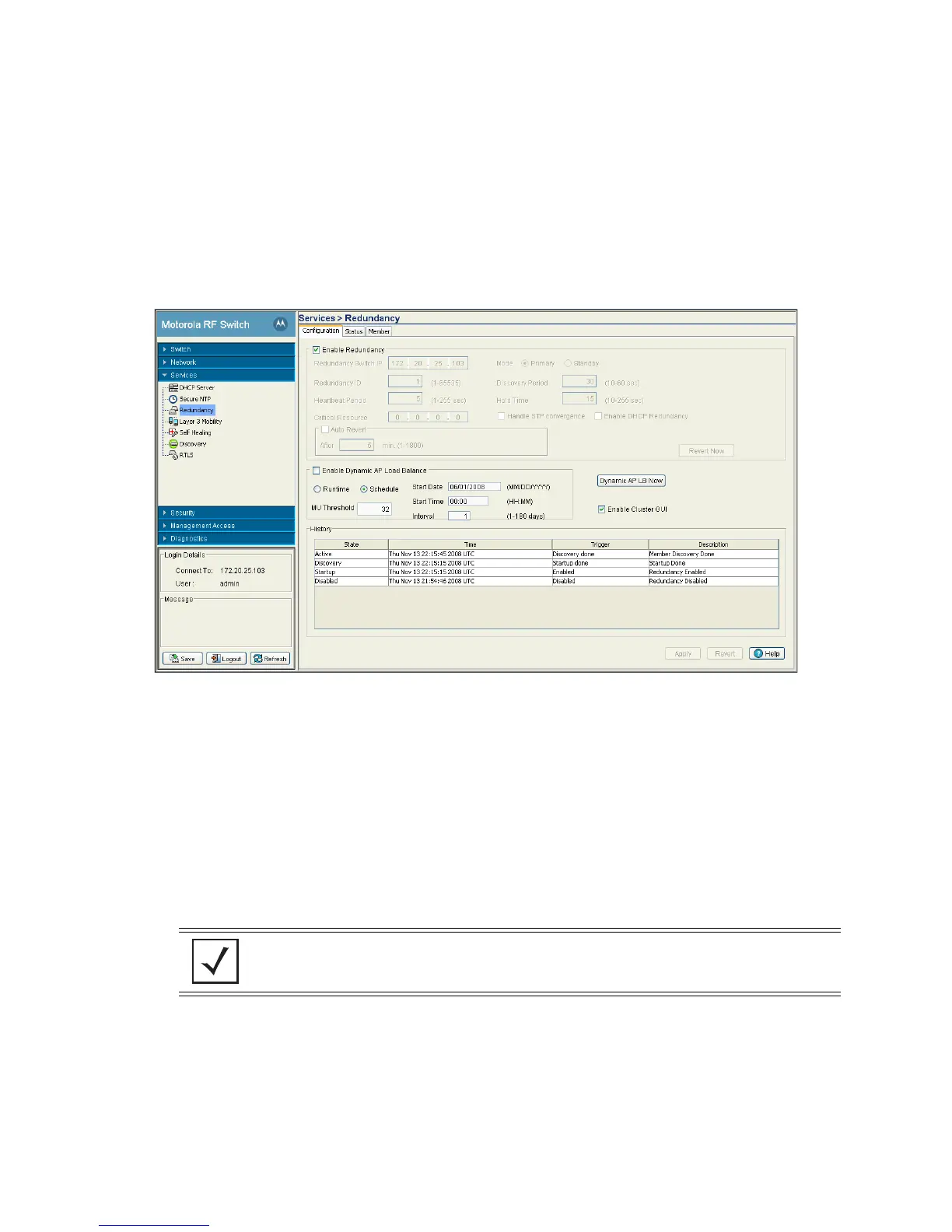

4. On the Configuration tab, check the Enable Redundancy checkbox and then check the Enable Cluster
GUI box.
5. Click the Apply button to enable the Cluster GUI feature.
6. Once Cluster GUI is enabled a Switch field will be available in many of the Access Port and mobile unit
related screens. The Switch field is displays which cluster members the APs and MUs are associated
with identified by their IP address.
NOTE: When accessing the switch Web UI through a NATed interface the Cluster GUI
features will only be accessible if TCP ports 80 and 161 are opened on the router or
gateway.
