6-104 Motorola RF Switch System Reference Guide
a. Refer to the Status field for the current state of the requests made from applet. This field displays
error messages if something goes wrong in the transaction between the applet and the switch.
b. Click OK to use the changes to the running configuration and close the dialog.
c. Click Cancel to close the dialog without committing updates to the running configuration
6.8.6 Configuring Radius User Groups
The Groups tab displays a list of all groups in the local Radius server's database. The groups are listed in
the order added. The existing configuration for each group is displayed to provide the administrator the
option of using a group as is, modifying an existing group’s properties or creating a new group.
To access the configuration of existing user groups:
1. Select Security > Radius Server from the main menu.

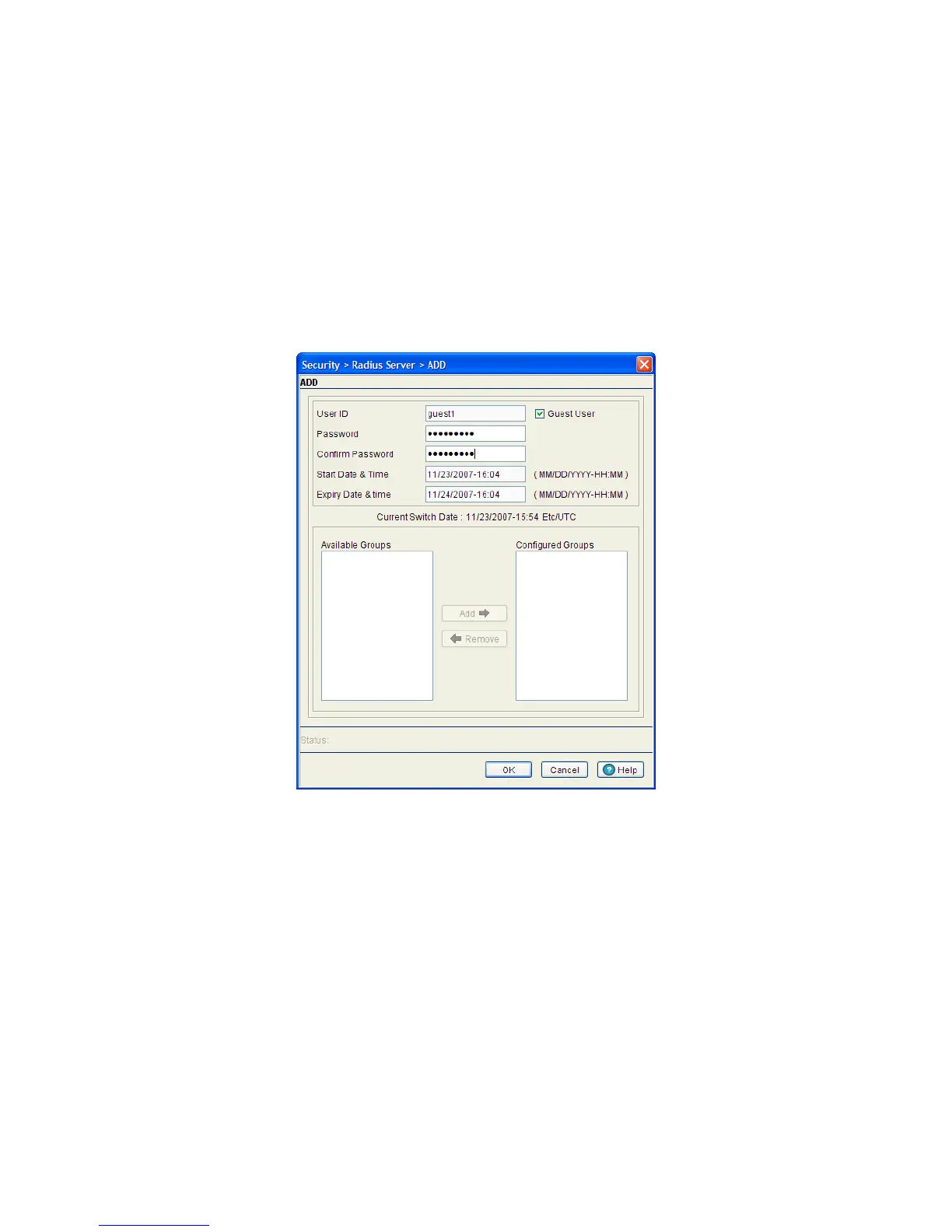

Access Duration Defines the authentication period set by the user. Check this option to enter a user-
defined interval in the text field.
NOTE: It is strictly recommended to set “Hotspot Simultaneous Users” to “1”
in the Hotspot page while using the Guest User option. This denies
authentication to the second MU when it uses a login already in use.
Available Groups Use the Available Groups Add -> and Remove <- functions to map groups (for
inclusion) for this specific user.
Configured Group Displays existing groups available for the user.
