8-14 Motorola RF Switch System Reference Guide
3. Select a target file and click the Delete button to remove the selected file. This option is not
recommended until the severity of the core snapshot has been assessed.
4. Click the Transfer Files button to open the transfer dialogue to enable a file to be copied to another
location. For more information on transferring core snapshots, see
Transferring Core Snapshots on page 8-14.
8.3.1 Transferring Core Snapshots

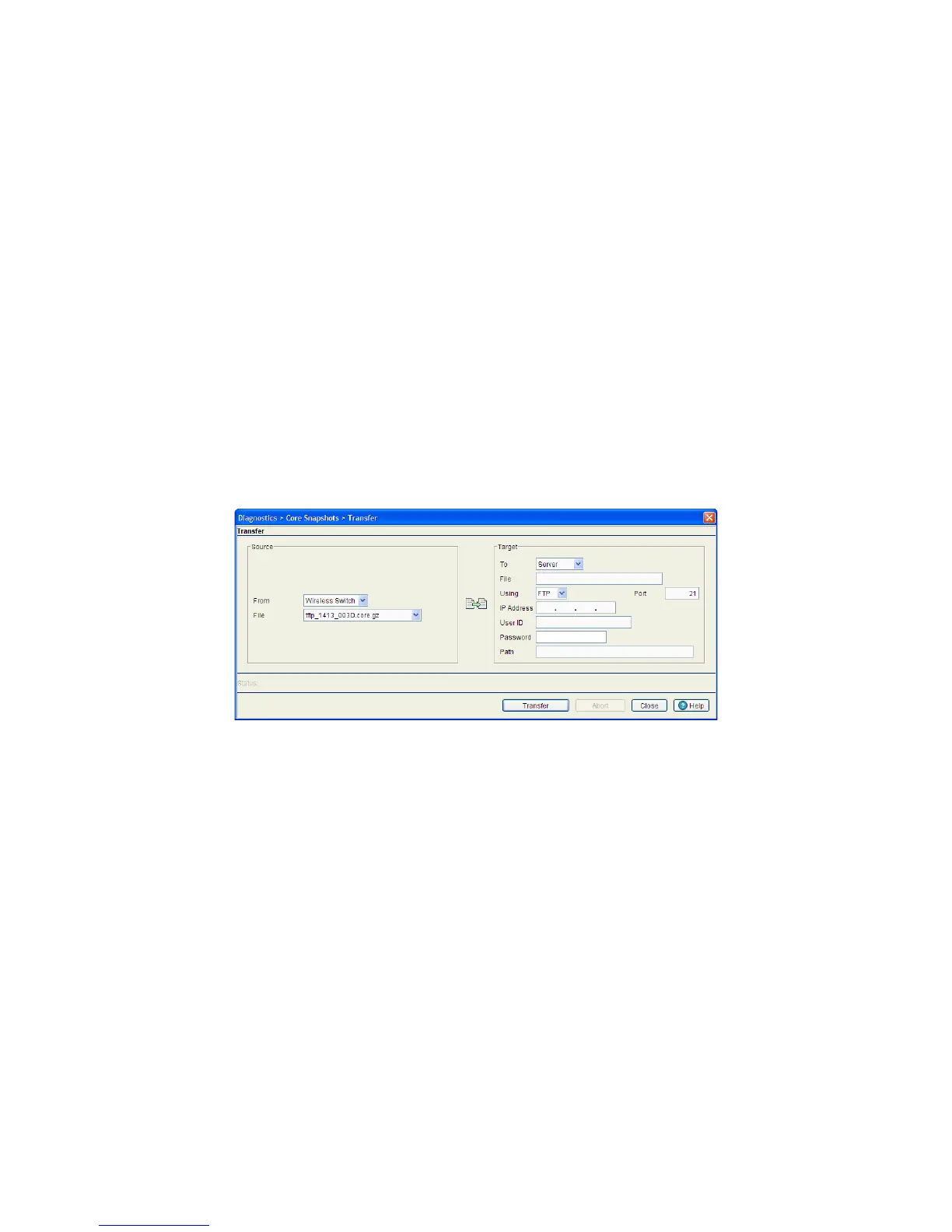

Use the Transfer screen to define a source for transferring core snapshot files to a secure location for
potential archive.
To transfer core snapshots to a user defined location:
1. Select Diagnostics > Core Snapshots from the main menu tree.
2. Select a target file, and select the Transfer Files button.
3. Use the From drop-down menu to specify the location from which the log file is sent.
If only the applet is available as a transfer location, use the default switch option.
4. Select a target file for the file transfer from the File drop-down menu.
The drop-down menu contains the core files listed within the File-Mgmt screen.
5. Use the To drop-down menu (within the Target field) to define whether the target log file is to be sent to
the system's local disk (Local Disk) or to an external server (Server).
6. Provide the name of the file to be transferred to the location specified within the File field.
7. If Server has been selected as the source, use the Using drop down-menu to configure whether the log
file transfer is sent using FTP or TFTP.
8. If Server has been selected as the source, enter the IP Address of destination server or system receiving
the target log file.
9. If Server has been selected as the source, enter the User ID credentials required to send the file to the
target location. Use the user ID for FTP transfers only.
10.If Server has been selected as the source, enter the Password required to send the file to the target
location using FTP.
Size (Bytes) Displays the size of the core file in bytes.
Created
Displays the date and time the core file was generated. This information may be
useful in troubleshooting issues.
