3. Modify the following information (as needed) to edit the existing ping test:
4. Click OK to save and add the changes to the running configuration and close the dialog.
5. Refer to the Status field for the current state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
6. Click Cancel to return back to the Configuration tab without implementing changes.
8.6.2 Adding a New Ping Test
If the attributes of an existing ping test do not satisfy the requirements of a new connection test, and you do
not want to modify an existing test, a new test can be created and added to the list of existing ping tests
displayed within the Configuration tab.
To create a new ping test and add it to the list of existing tests:
1. Select Diagnostics > Ping from the main menu.

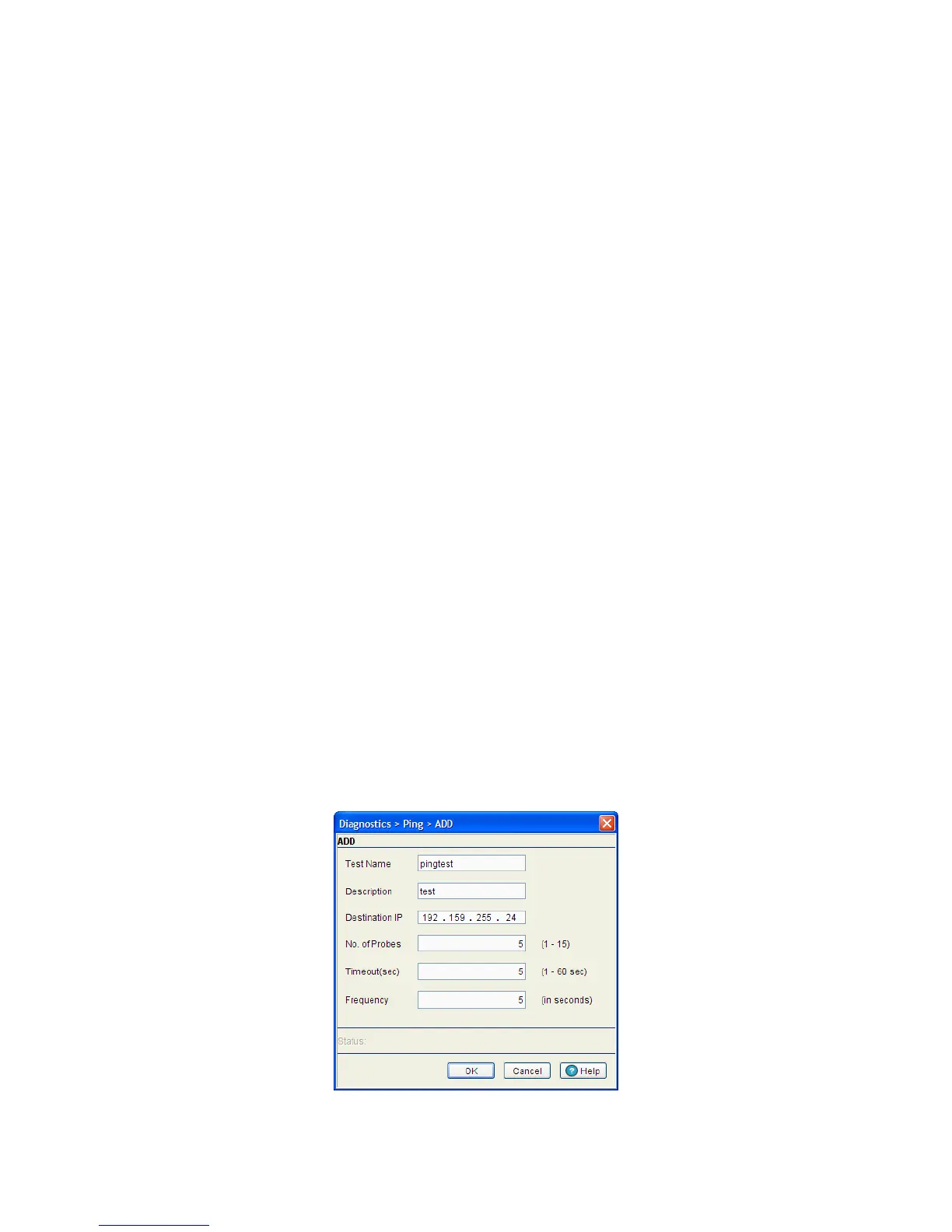

2. Click the Add button at the bottom of the Configuration tab.
Description If necessary, modify the description for the ping test. Ensure this description is
representative of the test, as this is the description displaying within the
Configuration tab.
Destination IP If necessary, modify the IP address of the target device. This is the numeric (non
DNS address) destination for the device transmitted the ping packets.
No. of Probes If necessary, modify the number of packets transmitted to the target IP address to
discern the round trip time between the switch and its connected device.
Timeout (sec) If necessary, modify the timeout value (in seconds) used to timeout the ping test if
a round trip packet is not received by the switch from its target device. Ensure this
interval is long enough to account for network congestion between the switch and
its target device.
Frequency If necessary, modify the interval (in seconds) between ping packet transmissions.
Define a longer interval if high levels of network congestion are anticipated
between the switch and its target device. Use a value of 0 to execute a single ping
or stop a currently executing ping test.
