6-24 Motorola RF Switch System Reference Guide
3. Click the Attach Role tab.

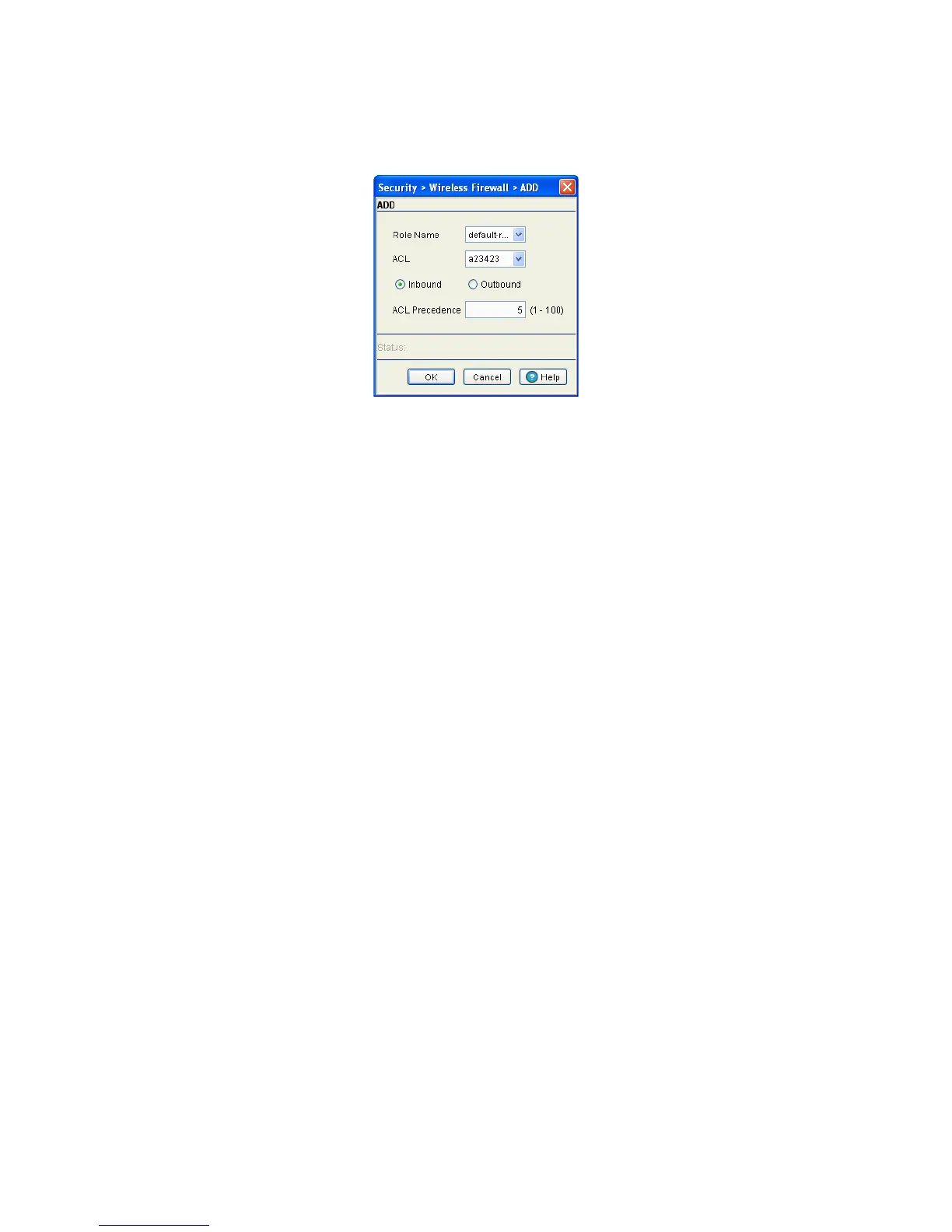

4. Click the Add button.
5. Select a Role Name from the drop-down menu. Role Names can be added in the Configuration >
Role tab.
6. Use the ACL drop-down menu to select an ACL to associate with the Role Name.
7. Select Inbound or Outbound to apply the new role to the appropriate interface.
8. Set a Precedence level for the ACL. The valid range is between 1 and 100 with the lower the
precedence numbers getting higher priority.
9. Refer to the Status field for the state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
10.Click OK to use the changes to the running configuration and close the dialog.
11.Click Cancel to close the dialog without committing updates to the running configuration.
6.4.5 Attaching Adaptive AP WLANs
Use the Attach AAP WLAN screen to view and assign the ACL to a physical interface or VLAN on the switch.
To display the AAP WLANs page:
1. Select Security > Wireless Firewall from the main menu tree.
2. Click on the Security Policy tab.
3. Click on the Wireless Filters tab.
