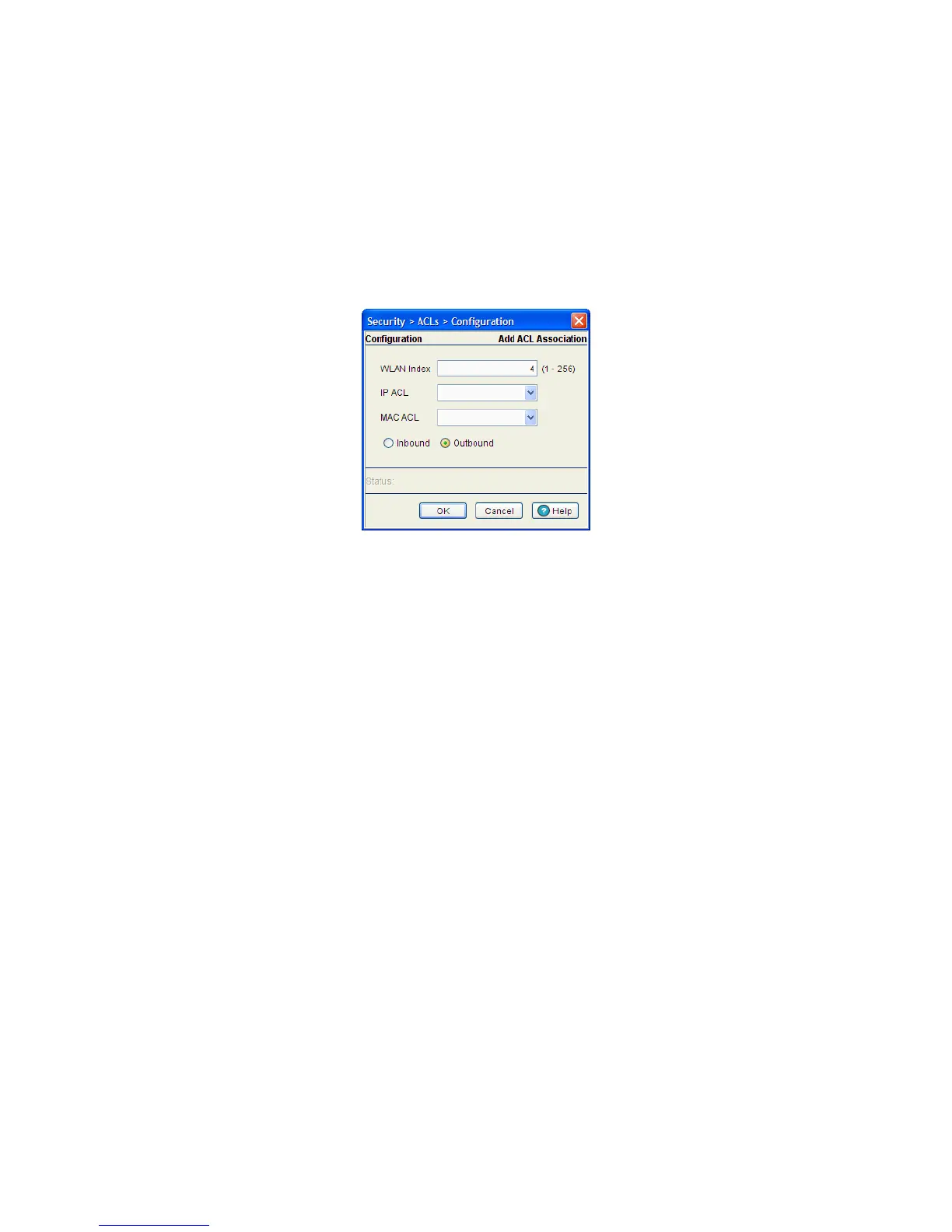

6.4.2.1 Adding or Editing a New ACL WLAN Configuration
After creating an ACL, it can be applied to one or more WLANs on the switch. To attach an ACL to a WLAN:
1. Select Security > Wireless Firewall from the main menu tree.
2. Click the Security Policy tab.
3. Click the Attach-WLAN tab.
4. Click the Add button to create a new ACL WLAN association or highlight an existing association and click
the Edit button.
5. Define a WLAN Index between 1 and 32.
6. Use the IP ACL drop-down menu to select an IP ACL for the WLAN.
7. Use the MAC ACL drop-down menu to select the MAC ACL for the WLAN interface.
8. Select either the Inbound or Outbound radio button to define which direction the ACL applies.
9. Refer to the Status field for the state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
10.Click OK to use the changes to the running configuration and close the dialog.
11.Click Cancel to close the dialog without committing updates to the running configuration.
6.4.3 Attaching an ACL Layer 2/Layer 3 Configuration
Use the Attach-L2/L3 screen to view and assign the ACL to a physical interface or VLAN.
To attach an interface:
1. Select Security > Wireless Firewall from the main menu tree.
2. Click the Security Policy tab.
