Switch Security 6-65
d. Refer to the Status field for the state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
e. Click OK to use the changes to the running configuration and close the dialog.
f. Click Cancel to close the dialog without committing updates to the running configuration.

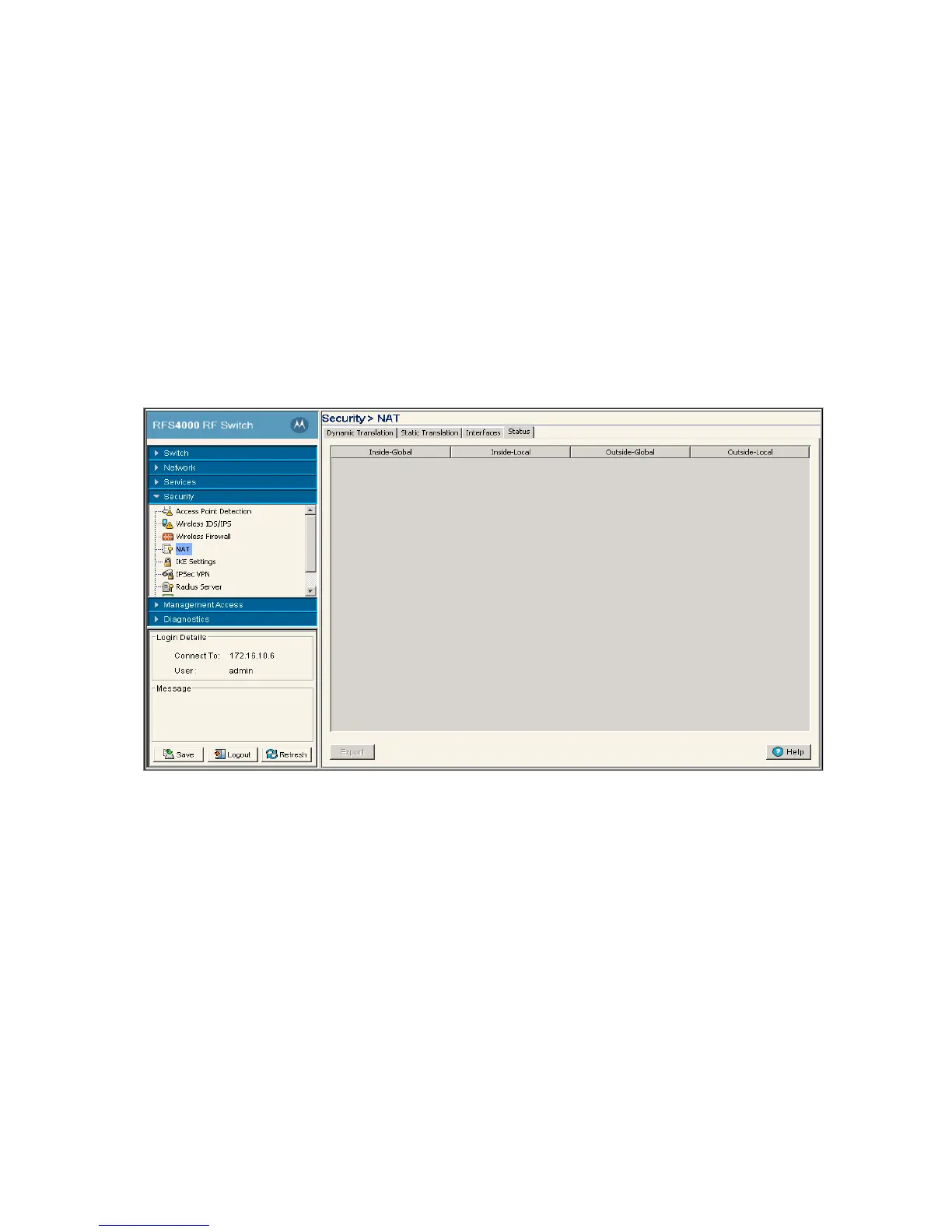

6.5.4 Viewing NAT Status
Use the Status tab to review the NAT translations configured thus far for the switch. The Status tab displays
the inside and outside local and global IP addresses.
To view and configure a NAT interface:
1. Select Security > NAT from the main menu tree.
2. Click on the Status tab.
3. Refer to the following to assess the validity and total NAT translation configurations available to the
switch.
4. Click on the Export button to export the contents of the table to a Comma Separated Values file (CSV).
Inside-Global Displays the internal global pool of addresses (allocated out of the switch’s private
address space but relevant to the outside) you are trying to prevent from being
exposed to the outside world.
Inside Local Displays the internal local pool of addresses (addresses internal to the switch) you
are trying to prevent from being exposed to the outside world.
Outside-Global The IP address of an outside host as it appears to the inside network.
Outside-Local The configured IP address assigned to a host in the outside network.
