Diagnostics 8-3
5. Use the Temperature Sensors field to monitor the CPU and system temperatures. This information is
extremely useful in assessing if the switch exceeds its critical limits.
6. Refer to the Fans field to monitor the CPU and system fan speeds.
7. Click the Apply button to commit and apply the changes.
8. Click the Revert button to revert back to the last saved configuration.

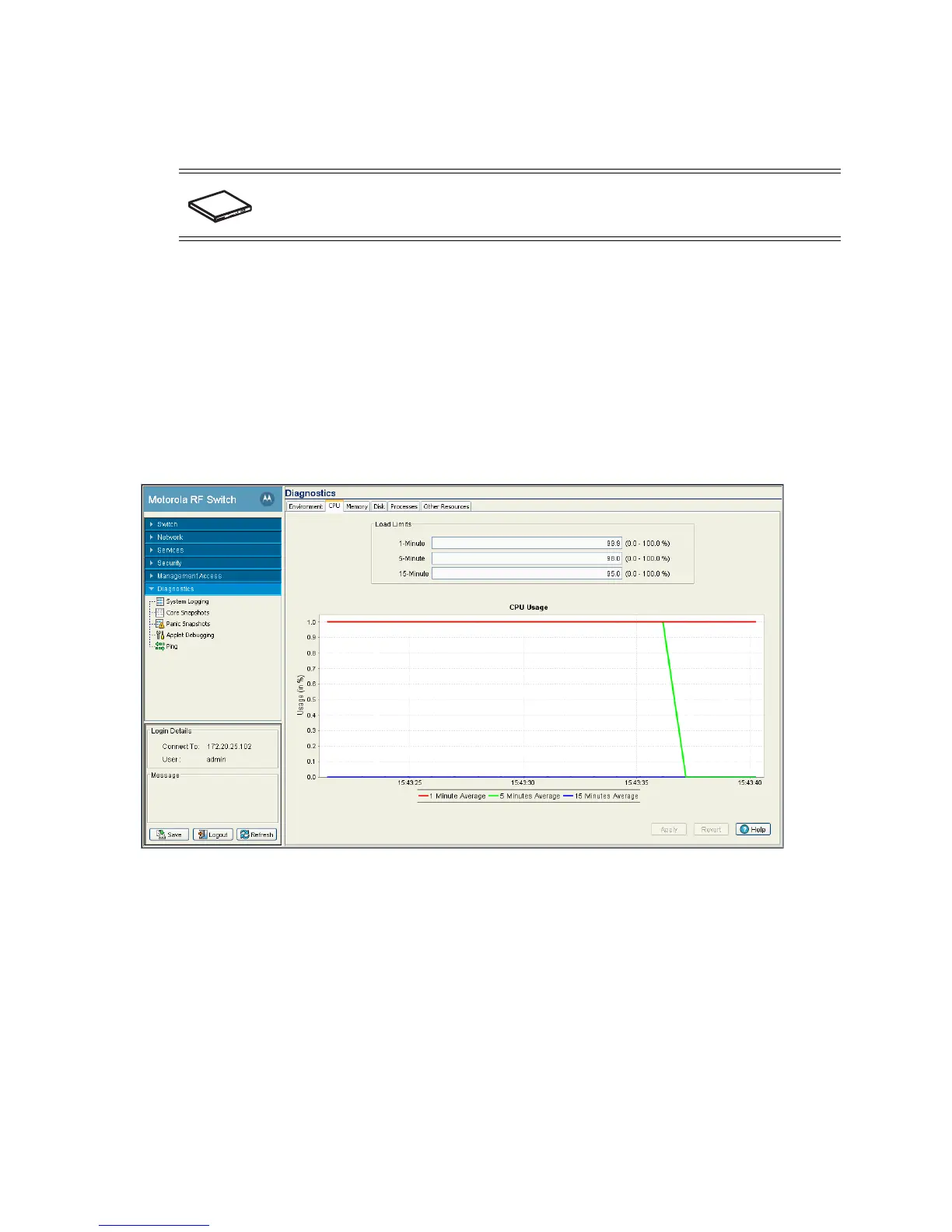

8.1.2 CPU Performance
Use the CPU tab to view and define the CPU’s load statistics. Load limits can be assessed for the last one
minute, five minutes and 15 minutes to better gauge switch loads over differing periods of network activity.
1. Select Diagnostics from the main tree menu.
2. Select the CPU tab.
3. The CPU screen consists of 2 fields:
• Load Limits
• CPU Usage
4. The Load Limits field displays the maximum CPU load limits for the last 1, 5, and 15 minutes. The limits
displayed coincide with periods of increased or decreased switch activity. The maximum CPU load
threshold can be manually configured.
5. The CPU Usage field displays real time CPU consumption values. Use this information to periodically
determine if performance is negatively impacted by the over usage of switch CPU resources. If CPU usage
is substantial during periods of low network activity, then perhaps, the situation requires
troubleshooting.
6. Click the Apply button to commit and apply the changes.
SWITCH NOTE: A RF7000 Series Switch has six sensors.
