Motorola RFS Series System Reference Guide

Diagnostics 8-5
1. Select Diagnostics from the main tree menu.
2. Select the Disk tab.

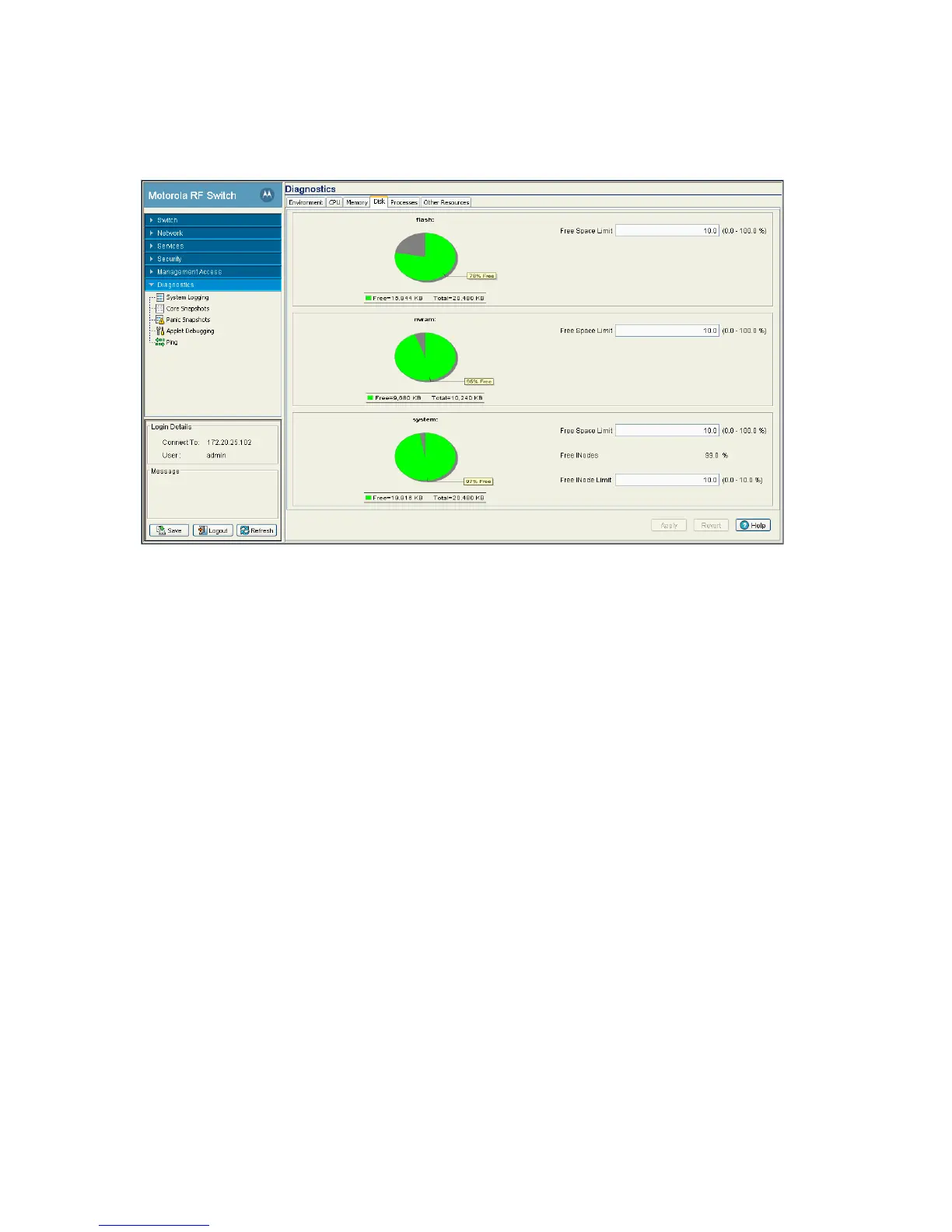

3. This Disk tab displays the status of the switch flash, nvram, and system disk resources. Each field
displays the following:
• Free Space Limit
• Free INodes
• Free INode Limit
4. Define the Free Space Limit variable carefully, as disk space may be required during periods of high
bandwidth traffic and file transfers.
5. Click the Apply button to commit and apply the changes.
6. Click the Revert button to revert back to the last saved configuration.
8.1.5 Switch Memory Processes
The Processes tab displays the number of processes in use and percentage of memory usage limit per
process.
1. Select Diagnostics from the main tree menu.
