4-8 Motorola RF Switch System Reference Guide
7. Click Cancel to close the dialog without committing updates to the running configuration.

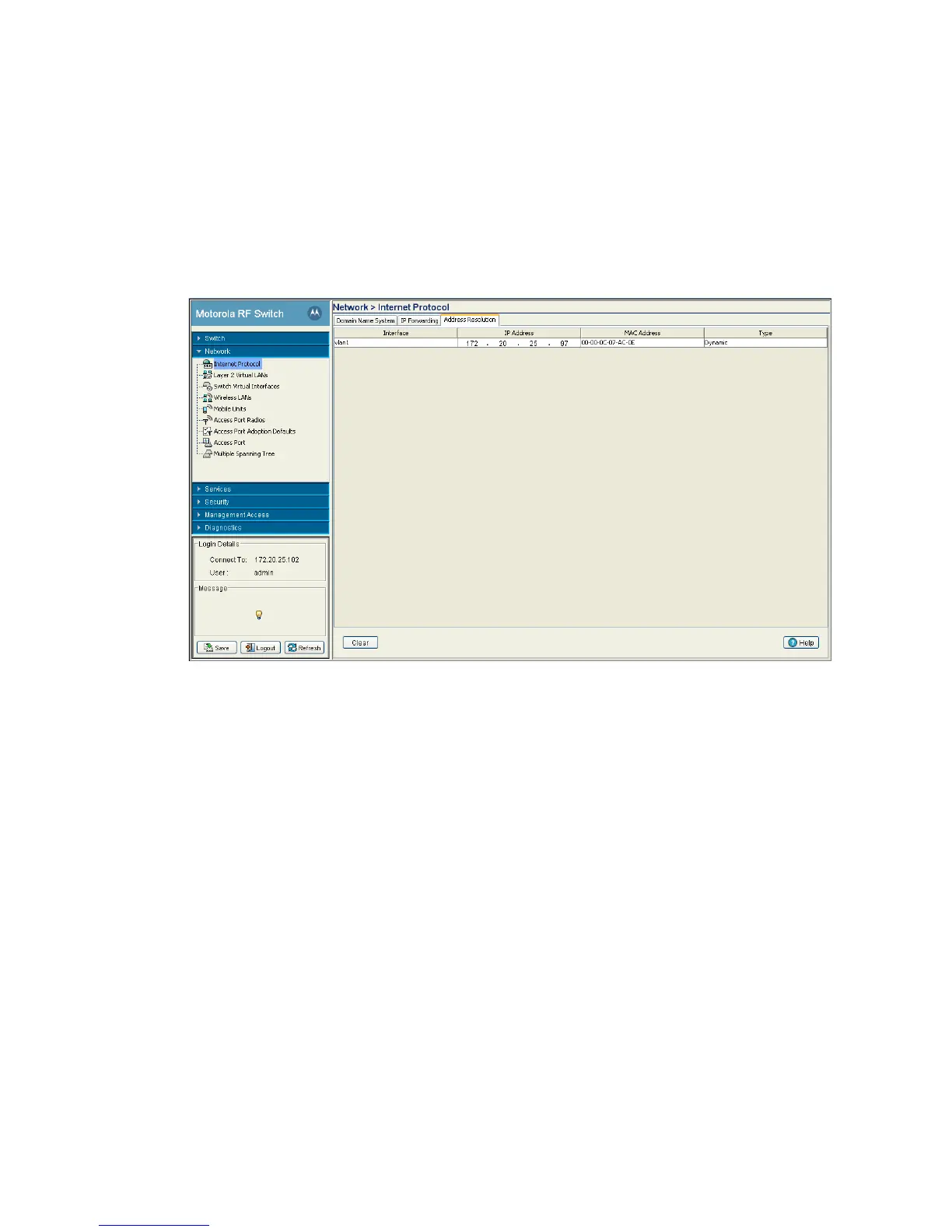

4.2.3 Viewing Address Resolution
The Address Resolution table displays the mapping of layer three (IP) addresses to layer two (MAC)
addresses. To view address resolution details:
1. Select Network > Internet Protocol from the main tree menu.
2. Select the Address Resolution tab.
3. Refer to the Address Resolution table for the following information:
4. Click the Clear button to remove the selected AP entry if no longer usable.
Interface
Displays the name of the actual interface where the IP address was
found (typically a VLAN).
IP Address
Displays the IP address being resolved.
MAC Address
Displays the MAC address corresponding to the IP address being
resolved.
Type
Defines whether the entry was added statically or created
dynamically in respect to network traffic. Entries are typically
static.
