Diagnostics 8-13
10.If Server has been selected as the source, enter the User ID credentials required to send the log file to
the target location.
11.If Server has been selected as the source, use the Password parameter to enter the password required
to send the log file to the target location.
12.Specify the appropriate Path name to the target directory on the local system disk or server as
configured using the To parameter. If the local disk is selected, a browse button is available.
13.Click the Transfer button when ready to move the target file to the specified location. Repeat the
process as necessary to move each desired log file to the specified location.
14.If a problem condition is discovered during the file transfer, click the Abort button to terminate the
transfer.
15.Refer to the Status field for the current state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
16.Click the Close button to exit the screen. No values need to be saved once the transfer has been made.
8.3 Reviewing Core Snapshots
Use the Core Snapshots screen to view the core snapshots (system events and process failures with a .core
extension) logged by the system. Core snapshots are issues impacting switch core (or distribution layer).
Once reviewed, core files can be deleted or transferred for archive.
To view core snapshots available on the switch:

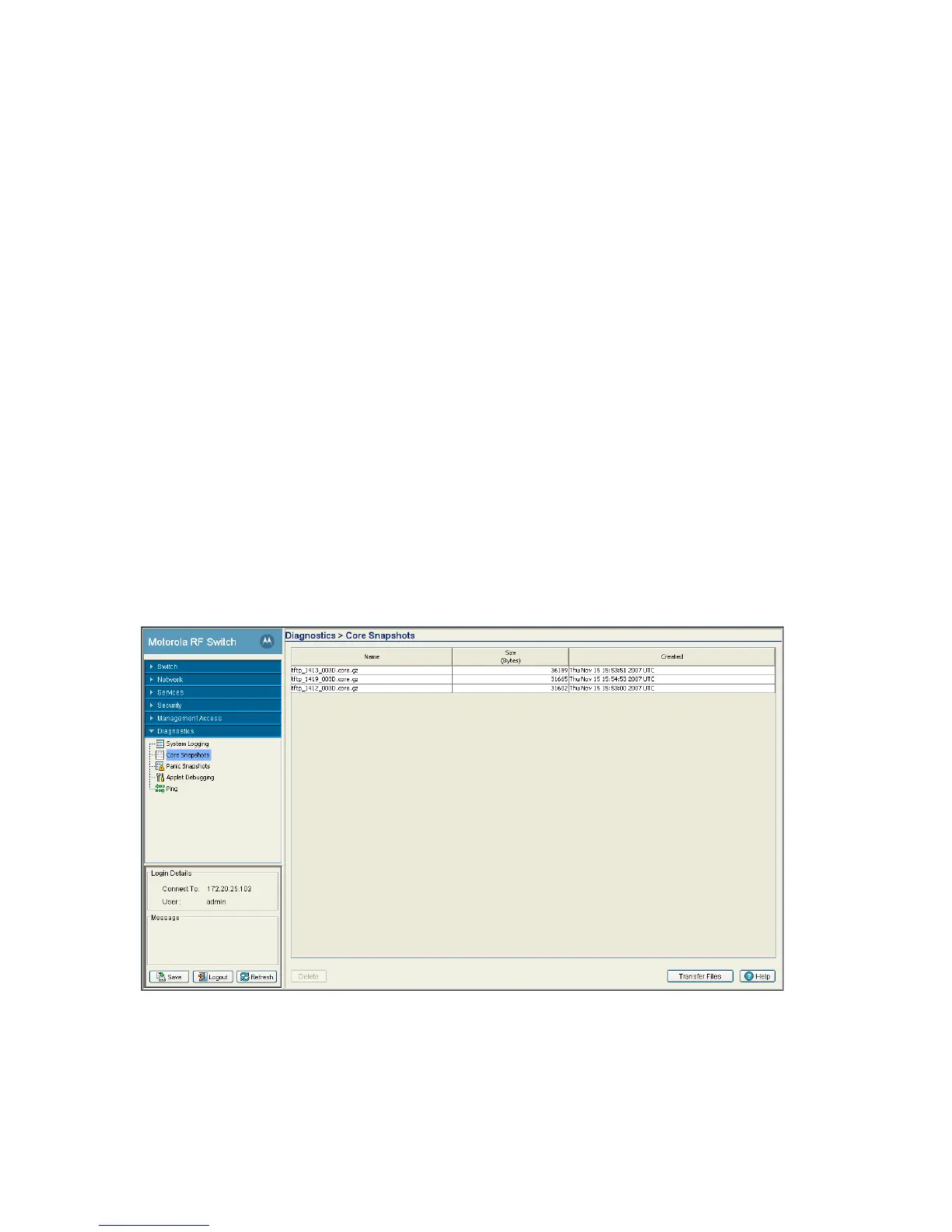

1. Select Diagnostics > Core Snapshots from the main menu tree.
2. Refer to the following table headings within the Core Snapshots screen:
Name Displays the title of the process, process ID (pid) and build number separated by
underscores. The file extension is always .core for core files.
