4-84 Motorola RF Switch System Reference Guide
4. Check the Trigger Beacon Request box to enable Radio Resource Management services on the
selected MU.
5. In the Measurement Duration field, enter a time interval between 500-1000(in K-us) to specify how
often the Radio Resource Measurement services will poll the selected MU for traffic information.
6. Click OK to use the changes to the running configuration and close the dialog.
4.6.2 Configuring Mobile Units

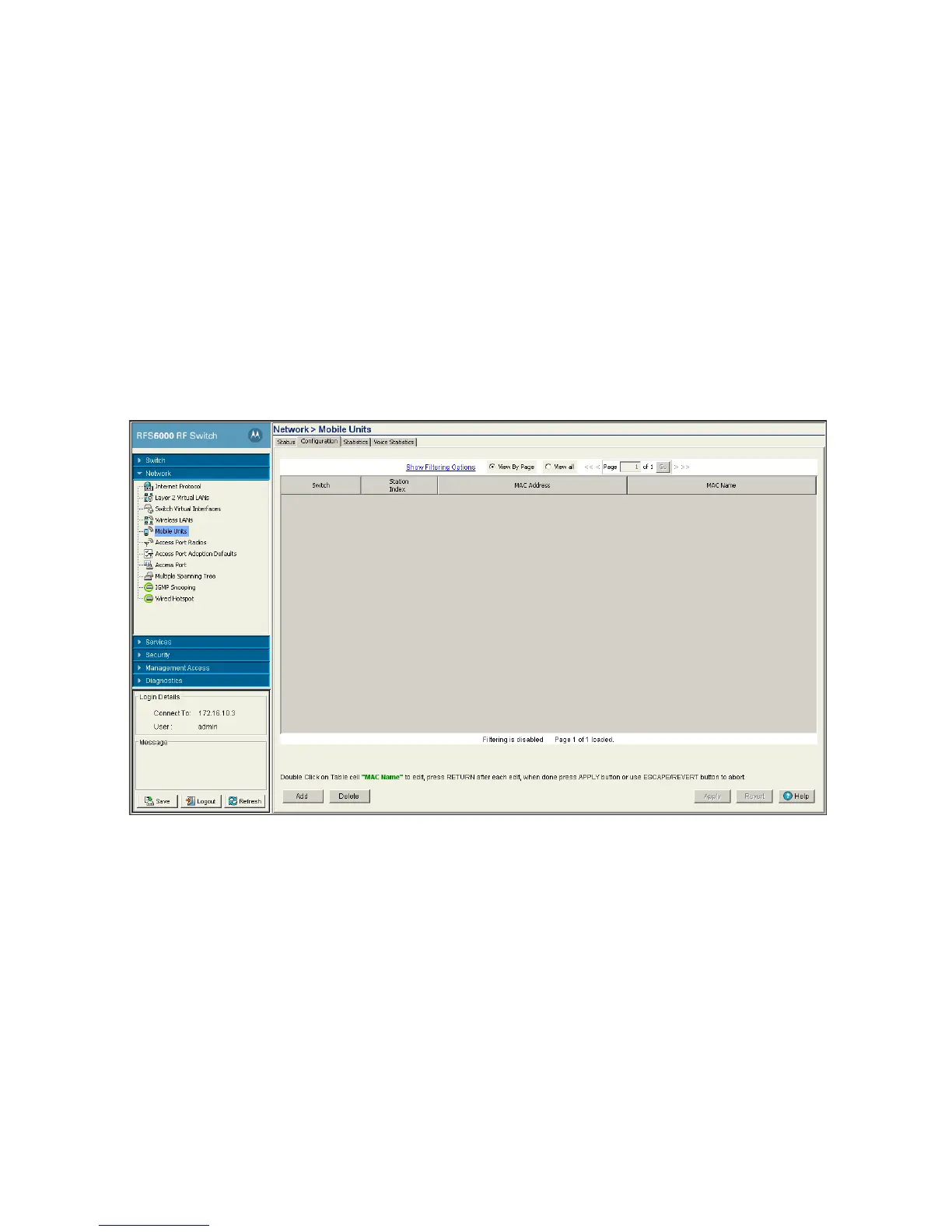

The Mobile Units Configuration screen lets you view MAC Address to MAC Name associations as well
as creating new MAC Address to MAC Name associations.
To configure Mobile Unit settings:
1. Select Network > Mobile Units from the main menu tree.
2. Click the Configuration tab.
3. The MU table displays the following information:
Switch The Switch field displays the IP address of the cluster member associated with
each MU. When clustering is enabled on the switch and Cluster GUI is enabled,
the Switch field will be available on the MU Configuration screen. For
information on configuring enabling Cluster GUI, see Managing Clustering Using
the Applet.(link missing)
Station Index The Station Index is a numerical device recognition identifier for a specific MU.
MAC Address Each MU has a unique Media Access Control (MAC) address through which it is
identified. This address is burned into the ROM of the MU.
MAC Name The MAC Name is a user-created name used to identify individual mobile unit
MAC Addresses with a user-friendly name. To edit an existing entry, double-click
the MAC Name and type in the new name.
