4.4.2.2 Viewing the Virtual Interface Statistics Graph
The switch Web UI continuously updates its virtual interface statistics, even when the graph is closed.
Periodically display the virtual statistics graph for the latest information as network performance information
is required.
To view detailed graphical statistics for a selected interface:
1. Select a record from the table displayed in the Statistics screen.
2. Click the Graph button.

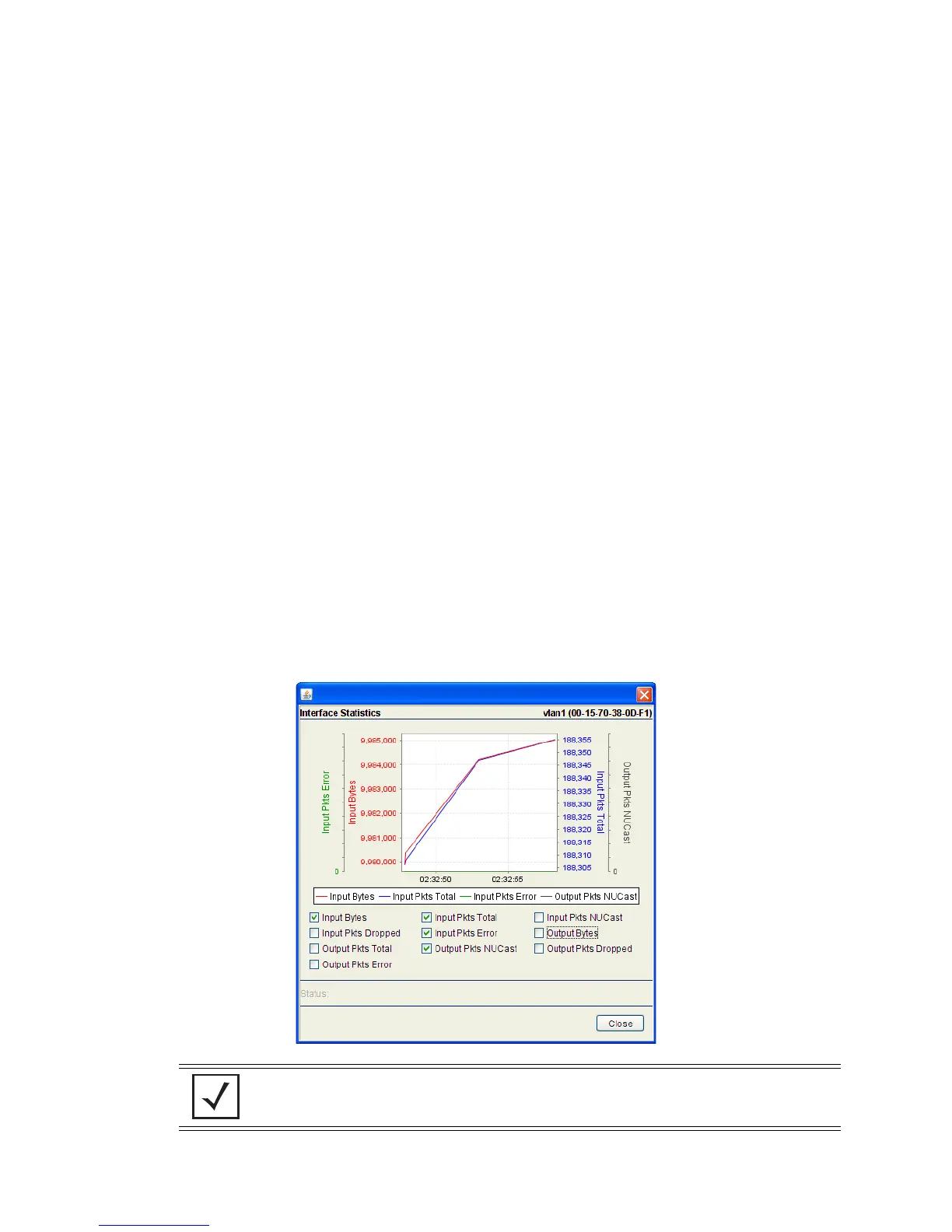

3. The Interface Statistics screen displays. The Interface Statistics screen provides the option of
viewing graphical statistics for the following parameters:
• Input Bytes
• Input Pkts Dropped
• Output Pkts Total
• Output Pkts Error
• Input Pkts Total
• Input Pkts Error
• Output Pkts NUCast
• Input Pkts NUCast
• Output Bytes
• Output Pkts Dropped
Select any of the above parameters by clicking on the checkbox associated with it.
NOTE: Only four parameters may be selected at any given time.
