4-52 Motorola RF Switch System Reference Guide
1. Select Network > Wireless LANs from the main menu tree.
2. Select an existing WLAN from those displayed with the Configuration tab.
3. Click on the Edit button.
4. Select either the EAP 802.1x, Hotspot, or Dynamic MAC ACL button from within the Authentication
field.
This enables the Radius button at the bottom of the Network > Wireless LANs > Edit screen.
5. Click the Radius button.

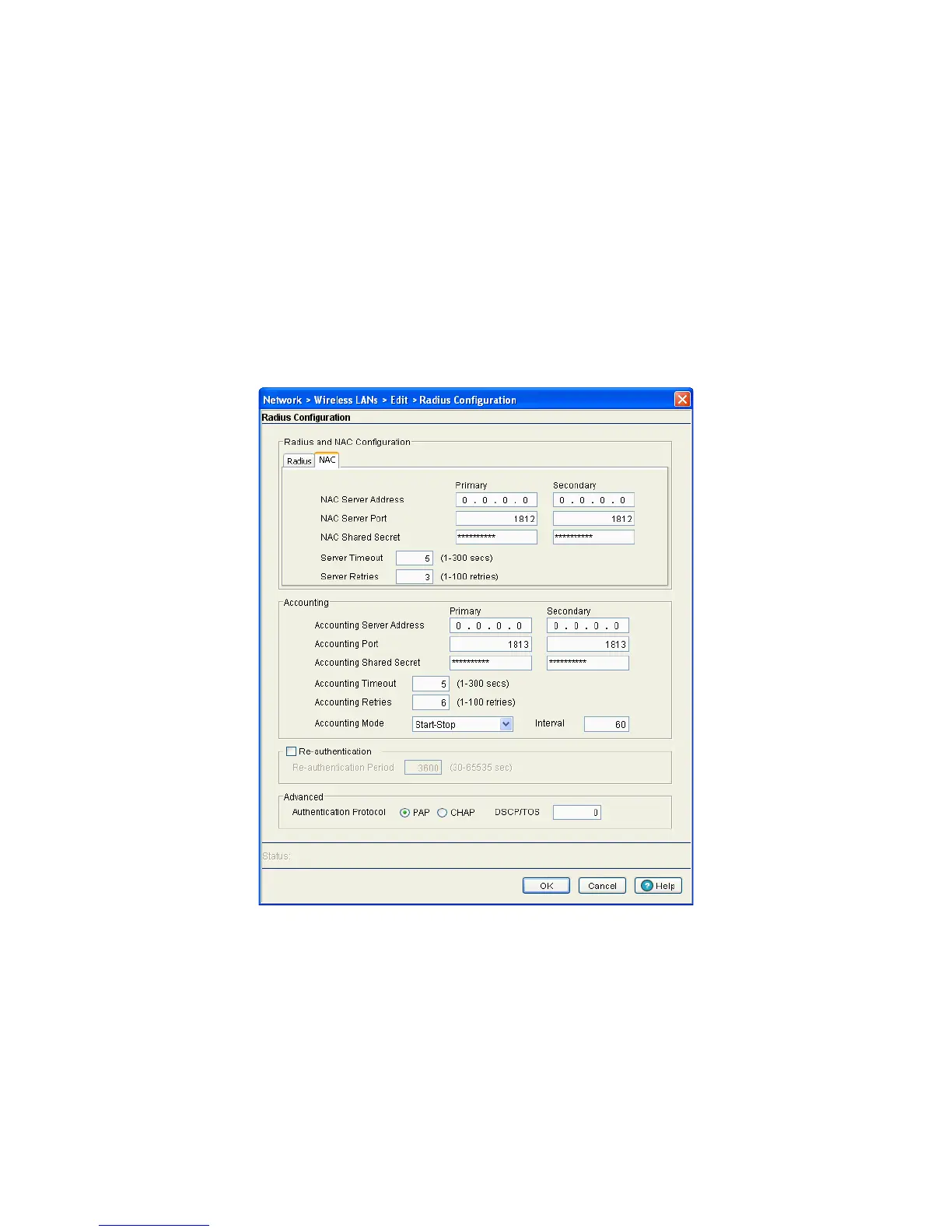

The Radius Configuration screen displays (with the Radius tab displayed by default) for defining an
external Radius or NAC Server.
6. .Select the NAC tab to configure NAC support.
7. Refer to the Server field and define the following credentials for a primary and secondary NAC server.
NAC Server Address
Enter the IP address of the primary and secondary NAC server.
NAC Server Port
Enter the TCP/IP port number for the primary and secondary server. The default
port is 1812.
NAC Shared Secret
Provide a shared secret (password) for user credential authentication with the
primary or secondary NAC server.
