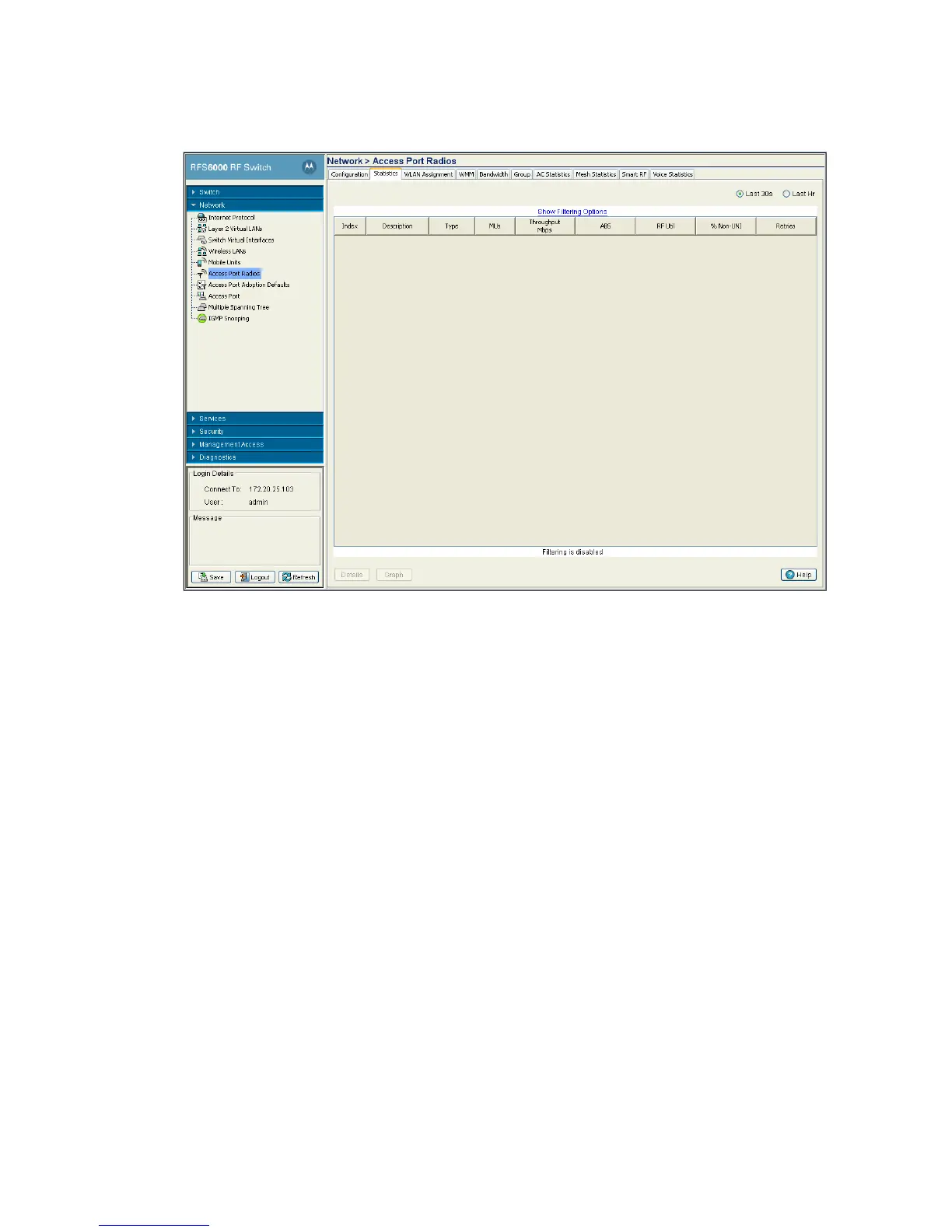

2. Click the Statistics tab.
3. To select the time frame for the radio statistics, select either Last 30s or Last Hr above the statistics
table.
• Select the Last 30s radio button to display statistics for the last 30 seconds for the radio.
• Select the Last Hr radio button to display statistics from the last hour for the radio.
4. Refer to the table for the following information:
Index Displays the numerical index (device identifier) used with the radio. Use this index
(along with the radio name) to differentiate the radio from other device radios.
Description Displays the name used with the radio. Use this name (along with the radio index)
to differentiate the radio from other device radios.
Type Identifies whether the radio is an 802.11b, 802.11bg and 802.11bgn or 802.11a
and 802.11an. radio.
MUs Displays the number of MUs currently associated with the Access Port.
Throughput Mbps Displays the average throughput in Mbps for the selected radio. The Rx column
displays the average throughput in Mbps for packets received on the selected
radio. The Tx column displays the average throughput for packets sent on the
selected radio.
ABS Displays the average bit speed in Mbps on the selected Access Port. This value
includes packets both sent and received.
RF Util Displays the percentage of the total packets for the selected radio that are non-
unicast packets. Non-unicast packets include broadcast and multicast packets.
