Motorola RFS Series System Reference Guide

Network Setup 4-139

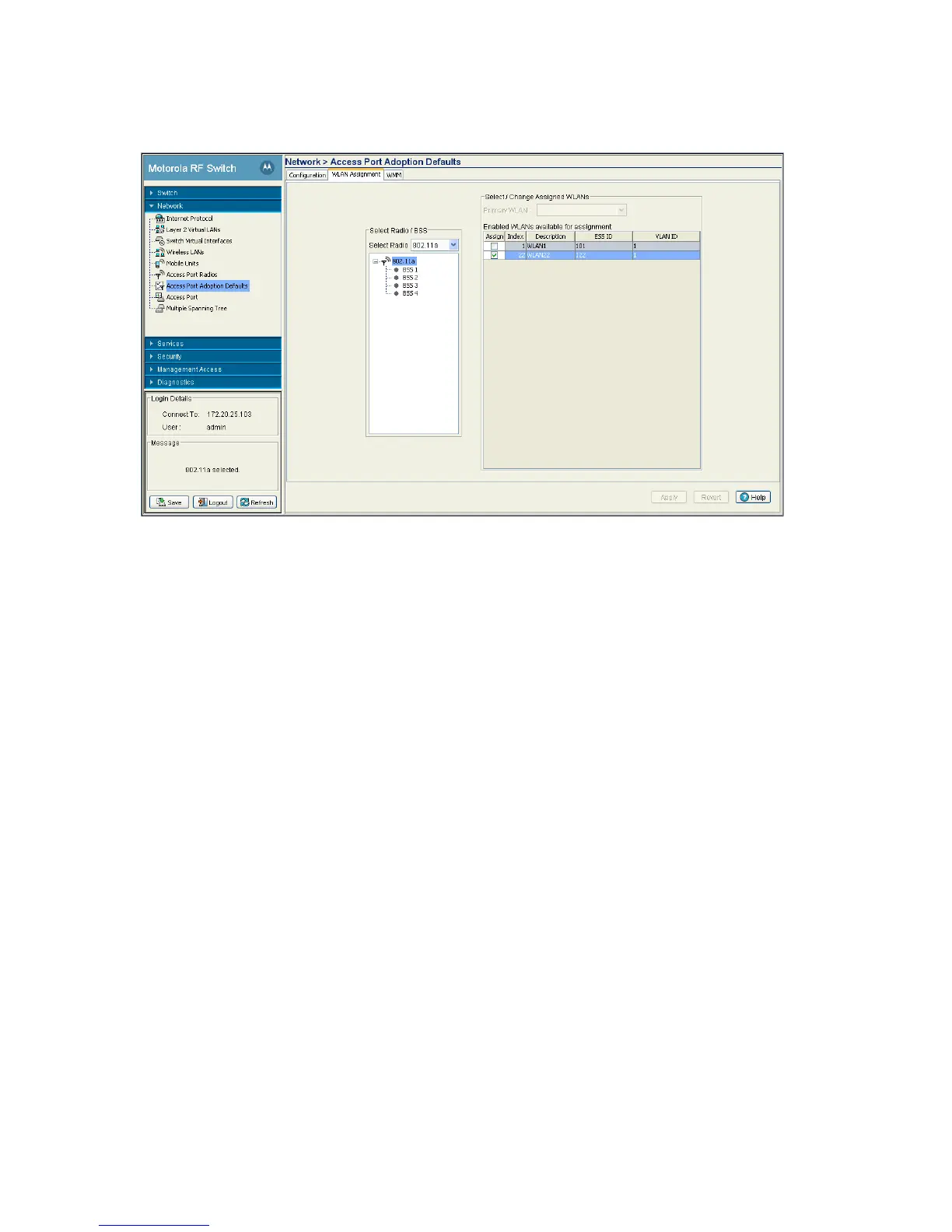

2. Click the WLAN Assignment tab.
The Assigned WLANs tab displays two fields: Select Radios/BSS and
Select/Change Assigned WLANs.
3. With the Select Radios/BSS field, select the radio type to configure (802.11b, 802.11bg and 802.11bgn
or 802.11a and 802.11an) from the Select Radio drop-down menu.
4. Select the desired BSS from the BSS list or select a Radio (802.11b, 802.11bg and 802.11bgn or 802.11a
and 802.11an) to modify.
5. Refer to the Select/Change Assigned WLAN field for the following information:
Primary WLAN If a specific BSS was selected from the Select Radio/BSS area, choose one of
the selected WLANs from the drop-down menu as the primary WLAN for the BSS.
If the radio was selected, the applet will automatically assign one WLAN to each
BSS in order, and that WLAN will be set as the Primary WLAN for the BSS.
If the number of WLANs selected is greater than the number of BSSIDs, the
remaining WLANs are included with the last BSS.
Assign Assign the WLAN(s) to the selected BSS or Radio.
Index Displays (in ascending order) the numerical index assigned to each SSID. Use the
index (along with the WLANs name) as a means of identifying WLANs once
assigned to different radio BSSIDs. A BSSID cannot support two WLANs with the
same numerical index.
Description Use the WLAN description (along with the WLANs index) as a means of
identifying WLANs assigned to different radio BSSIDs. A BSSID cannot support
two WLANs with the same description.
ESS ID Displays the assigned SSID uniquely distributed between the WLANs assigned to
the BSSIDs.
VLAN Displays the VLAN ID of VLANs assigned to WLANs. By default, all WLANs are
assigned to VLAN 1.
