5-24 Motorola RF Switch System Reference

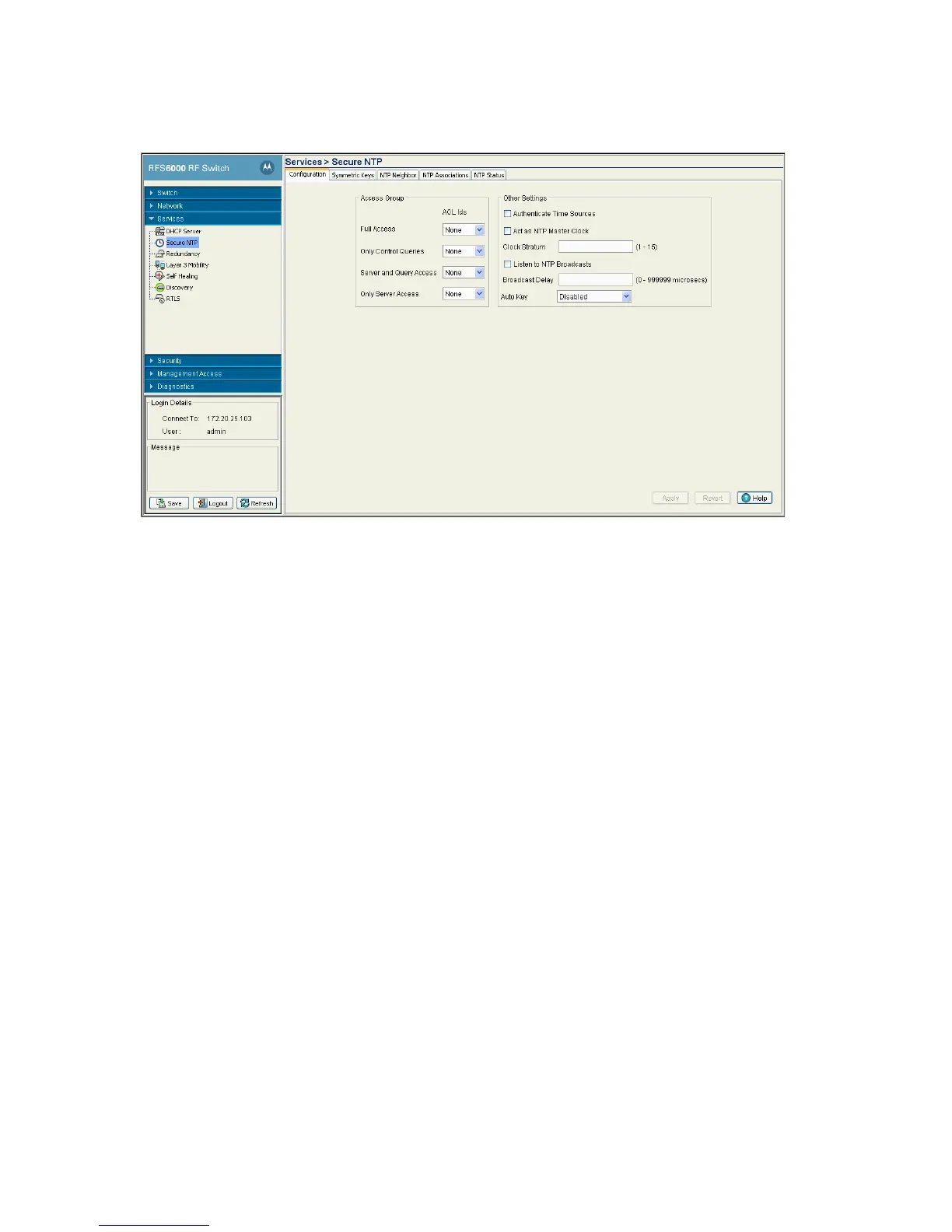

2. Select the Configuration tab.
3. An ACL Id must be created before it is selectable from any of the drop-down menus. Refer to the Access
Group field to define the following:
4. Refer to the Other Settings field to define the following:
Full Access
Supply a numeric ACL ID from the drop-down menu to provide the ACL full access.
Only Control Queries
Supply a numeric ACL ID from the drop-down menu to provide the ACL only control
query access to SNTP resources.
Server and Query
Access
Enter a numeric ACL ID from the drop-down menu to provide the ACL Server and
Query access to SNTP resources.
Only Server Access
Provide a numeric ACL ID from the drop-down menu to provide the ACL only server
access to SNTP resources.
Authenticate Time
Sources
Select this checkbox to ensure credential authentication takes place between the
SNTP server and the switch. When this checkbox is selected, the Apply and Revert
buttons become enabled to save or cancel settings.
Act As NTP Master
Clock
When this checkbox is selected, the Apply and Revert buttons become enabled to
save or cancel settings within the Other Settings field.
Clock Stratum Define how many hops (from 1 to 15) the switch is from a SNTP time source. The
switch automatically chooses the SNTP resource with the lowest stratum number.
The SNTP supported switch is careful to avoid synchronizing to a server that may
not be accurate. Thus, the SNTP enabled switch never synchronizes to a machine
not synchronized itself. The SNTP enabled switch compares the time reported by
several sources, and does not synchronize to a time source whose time is
significantly different than others, even if its stratum is lower.
Listen to NTP
Broadcasts
Select this checkbox to allow the switch to listed over the network for SNTP
broadcast traffic. Once enabled, the switch and the SNTP broadcast server must
be on the same network.
