Switch Security 6-35

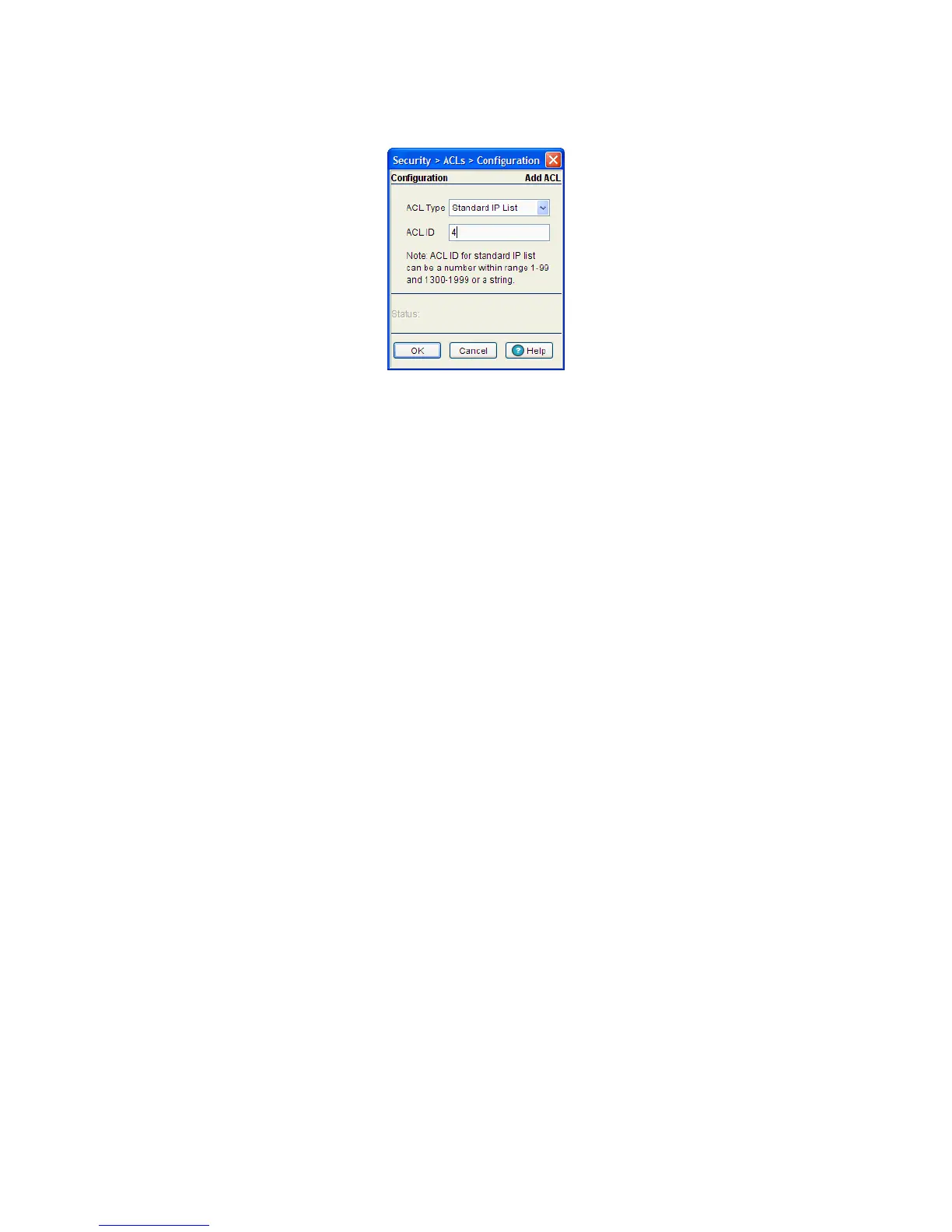

4. Click the Add button.
5. Select an ACL Type from the drop-down menu. The following options are available:
• Standard IP List – Uses source IP addresses for matching operations.
• Extended IP List – Uses source and destination IP addresses and optional protocol information for
matching operations.
• MAC Extended List – Uses source and destination MAC addresses, VLAN ID and optional protocol
information.
6. Enter a numeric index name for the ACL in the ACL ID field.
7. Refer to the Status field for the current state of the requests made from applet. This field displays error
messages if something goes wrong in the transaction between the applet and the switch.
8. Click OK to use the changes to the running configuration and close the dialog.
9. Click Cancel to close the dialog without committing updates to the running configuration.
6.4.11.2 Adding a New ACL Rule
To add a new rule:
1. Select Security > Wireless Firewall from the main tree menu.
2. Click the Configuration tab.
3. Click the ACL tab.
