6-72 Motorola RF Switch System Reference Guide

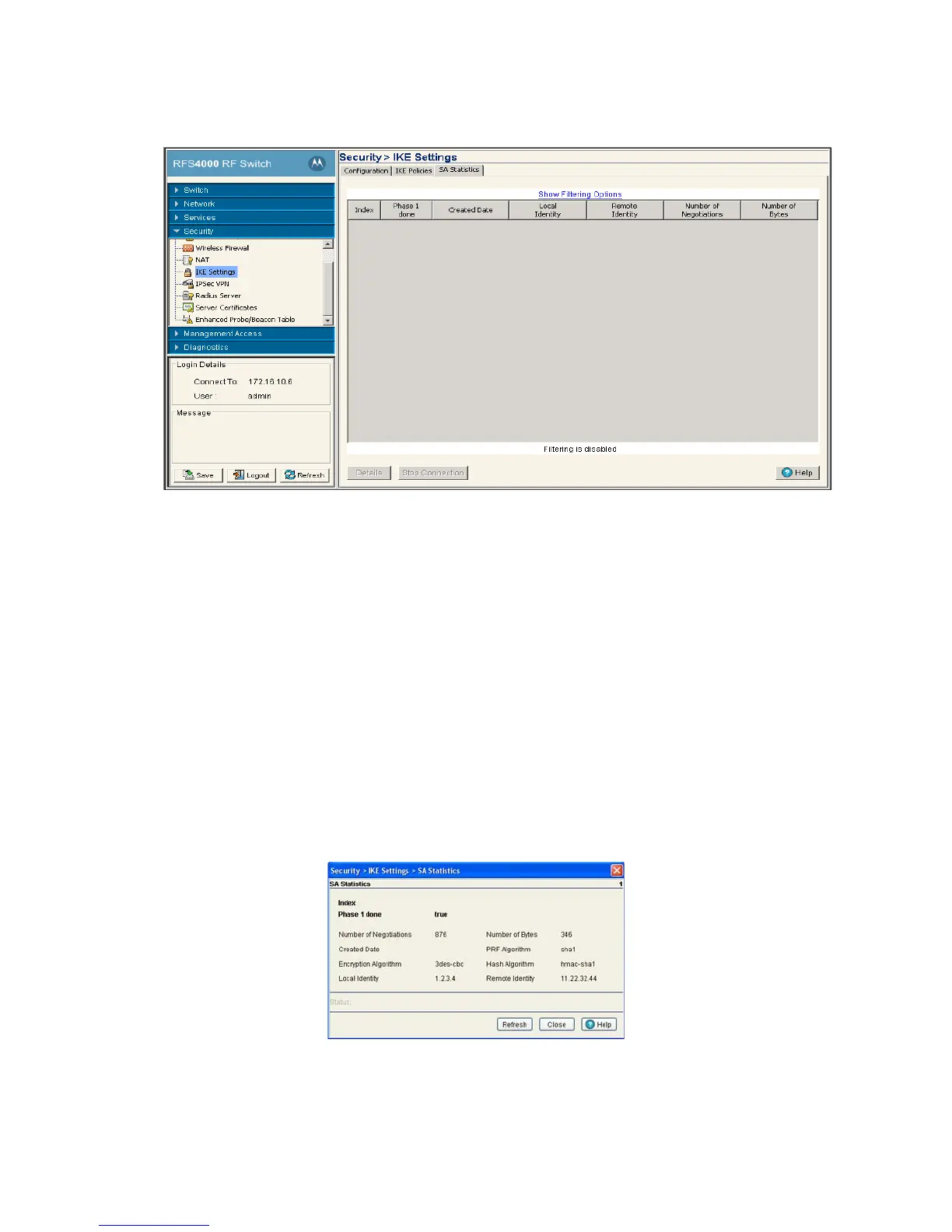

2. Click the SA Statistics tab.
3. Refer to the information displayed within SA Statistics tab to discern the following:
4. Select an index and click the Details button to display a more robust set of statistics for the selected
index.
Use this information to discern whether changes to an existing IKE configuration is warranted or if a new
configuration is required.
5. Click the Stop Connection button to terminate the statistic collection of the selected IKE peer.
Index Displays the alpha-numeric name (index) used to identify individual SAs.
Phase 1 done Displays whether this index is completed with the phase 1 (authentication)
credential exchanged between peers.
Created Date Displays the exact date the SA was configured for each index displayed.
Local Identity Specifies the address the local IKE peer uses to identify itself to the remote peer.
Remote Identity Specifies the address the remote IKE peer uses to identify itself to a local peer.
Number of
Negotiations
During IKE negotiations the peers must identify themselves to each other. This
value is helpful in determining the network address information used to validate
peers.
Number of Bytes Displays the number of bytes passed between the peers for the specified index.
