B-14 Motorola RF Switch System Reference Guide

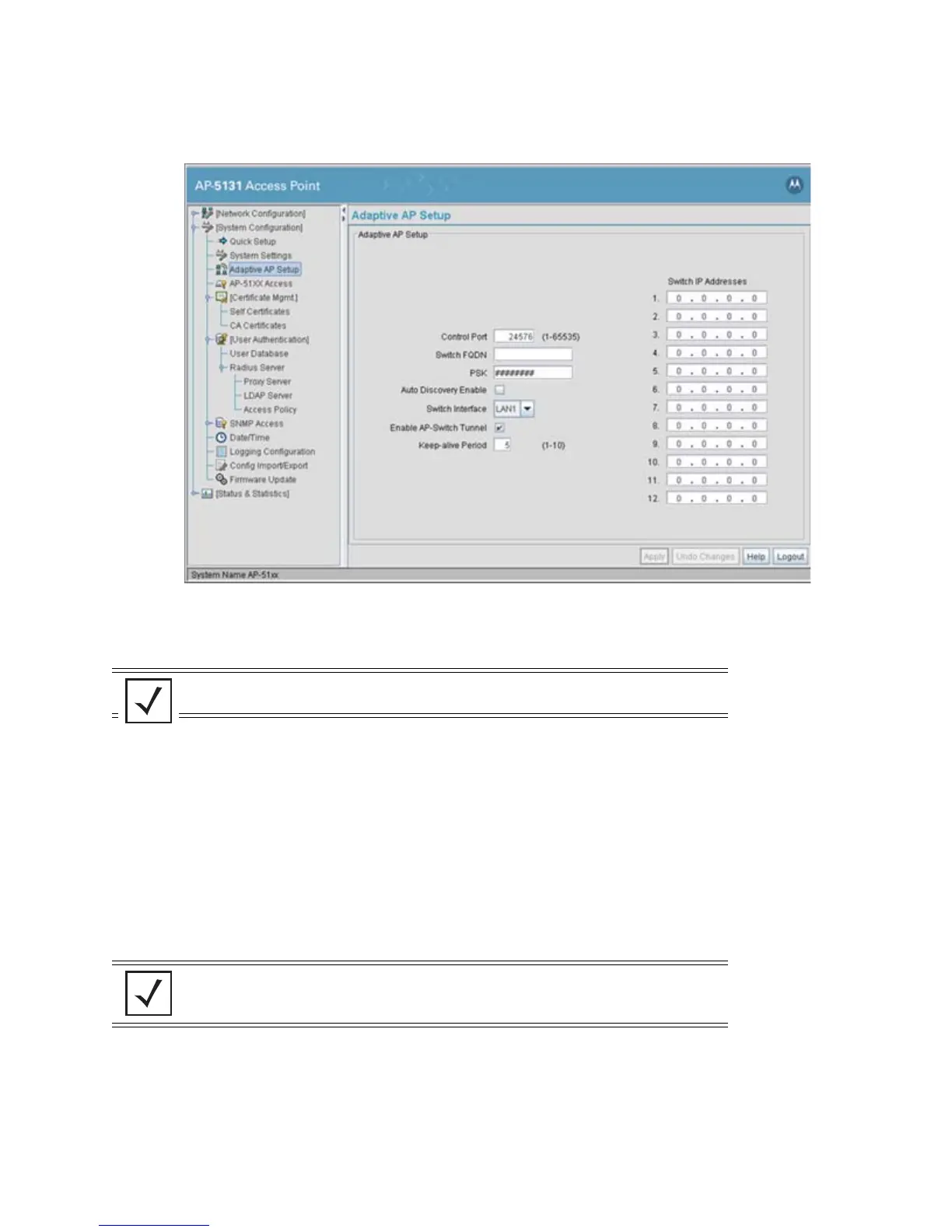

1. Select System Configuration -> Adaptive AP Setup from the Access Point’s menu tree.
2. Select the Auto Discovery Enable checkbox.
Enabling auto discovery will allow the AAP to be detected by a switch once its connectivity medium
has been configured (by completing steps 3-6).
3. Enter up to 12 Switch IP Addresses constituting the target switches available for AAP connection.
The AAP will begin establishing a connection with the first addresses in the list. If unsuccessful, the AP
will continue down the list (in order) until a connection is established.
4. If a numerical IP address is unknown, but you know a switch’s fully qualified domain name (FQDN), enter
the name as the Switch FQDN value.
5. Select the Enable AP-Switch Tunnel option to allow AAP configuration data to reach a switch using
a secure VPN tunnel.
6. If using IPSec as the tunnel resource, enter the IPSec Passkey to ensure IPSec connectivity.
7.
Click Apply to save the changes to the AAP setup.
B.4.1.2 Adopting an Adaptive AP Using a Configuration File
To adopt an AAP using a configuration file:
1. Refer to Adopting an Adaptive AP Manually and define the AAP switch connection parameters.
NOTE Auto discovery must be enabled for a switch to detect an AP.
NOTE The manual AAP adoption described above can also be conducted using
the Access Point’s CLI interface using the admin(system.aapsetup)>
command.
