B-16 Motorola RF Switch System Reference Guide

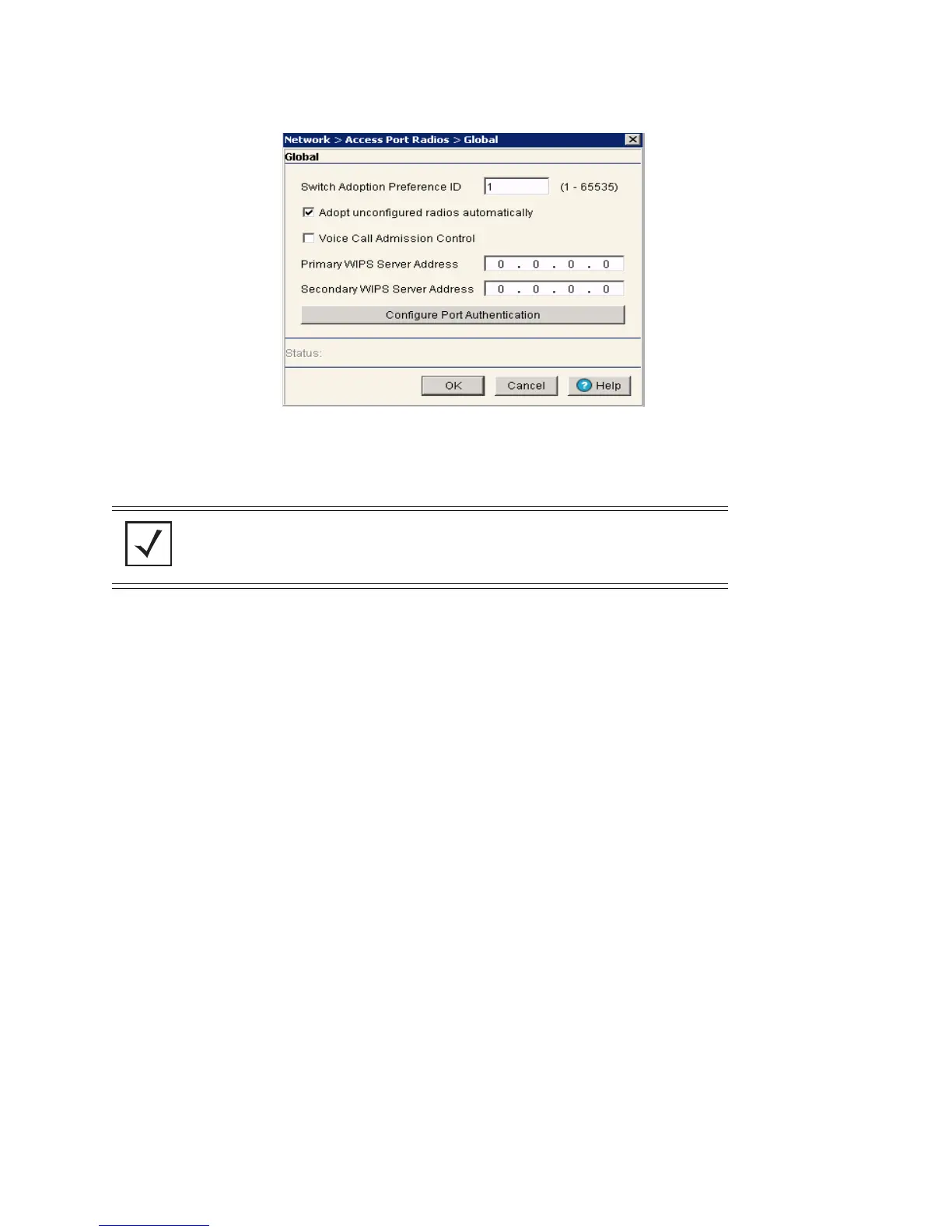

3. Ensure the Adopt unconfigured radios automatically option is NOT selected.
4. When disabled, there is no automatic adoption of non-configured radios on the network. Additionally,
default radio settings will NOT be applied to Access Ports when automatically adopted.
Any WLAN configured on the switch becomes an extended WLAN by default for an AAP.
5. Select Network > Wireless LANs from the switch main menu tree.
6. Select the target WLAN you would like to use for AAP support from those displayed and click the Edit
button.
7. Select the Independent Mode (AAP Only) checkbox.
Selecting the checkbox designates the WLAN as independent and prevents traffic from being forwarded
to the switch. Independent WLANs behave like WLANs as used on a a standalone Access Point. Leave
this option unselected (as is by default) to keep this WLAN an extended WLAN (a typical centralized
WLAN created on the switch).
NOTE For IPSec deployments, refer to Sample Switch Configuration File for
IPSec and Independent WLAN and take note of the CLI commands in red
and associated comments in green.
