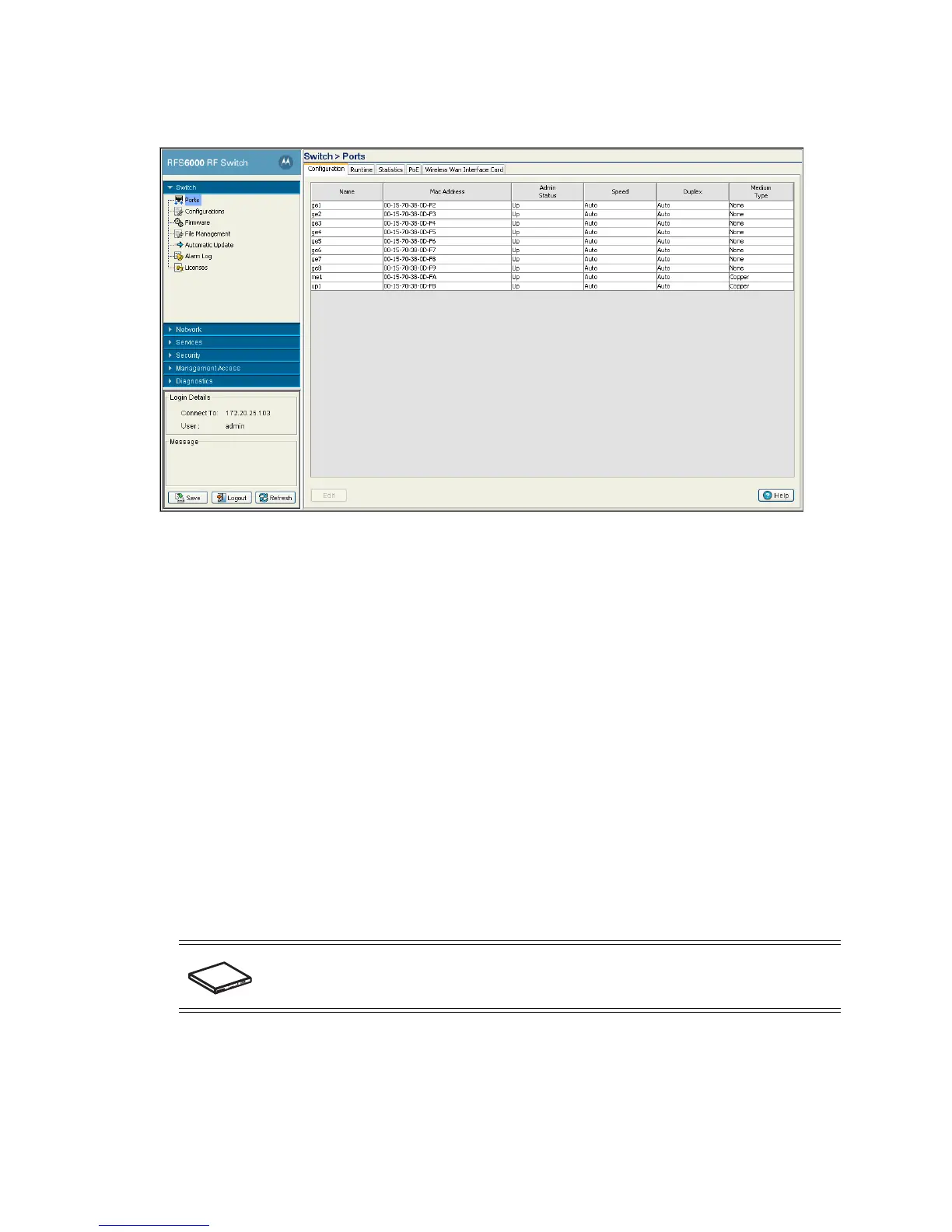

2. Select the Configuration tab to display the following read-only information:
3. Select a port and click the Edit button to modify the port configuration. For additional information, see
Editing the Port Configuration.
3.2.1.1 Editing the Port Configuration
To modify the port configuration:
Name Displays the current port name. The port names available vary by switch.
RFS6000: ge1, ge2, ge3, ge4, ge5, ge6, ge7, ge8, me1, up1, wan
RFS7000: ge1, ge2, ge3, ge4, me1
RFS4000: ge1, ge2, ge3, ge4, ge5. up1
Aggregation
Membership
(RFS7000, RFS4000)
The Aggregation Membership value displays the channel group the port is a
member of.
MAC Address Displays the port’s MAC Address. This value is read-only, set at the factory and
cannot be modified.
Admin Status Displays whether the port is currently Up or Down.
Speed Displays the current speed of the data transmitted and received over the port.
Duplex Displays the port as either half or full duplex.
Medium Type The Medium Type value displays the physical connection type of the port. Medium
types are:
• Copper: Used on RJ-45 Ethernet Ports
• Optical: Used on Fiber Optic Gigabit Ethernet Ports
SWITCH NOTE: On a RFS7000, the MAC address for the me1 port changes when the
switch firmware is updated to the 1.3 version. This addresses an issue where the switch
MAC address and ge1 interface shared the same MAC address in previous versions.
To Next Page
