2. Select the Statistics tab.

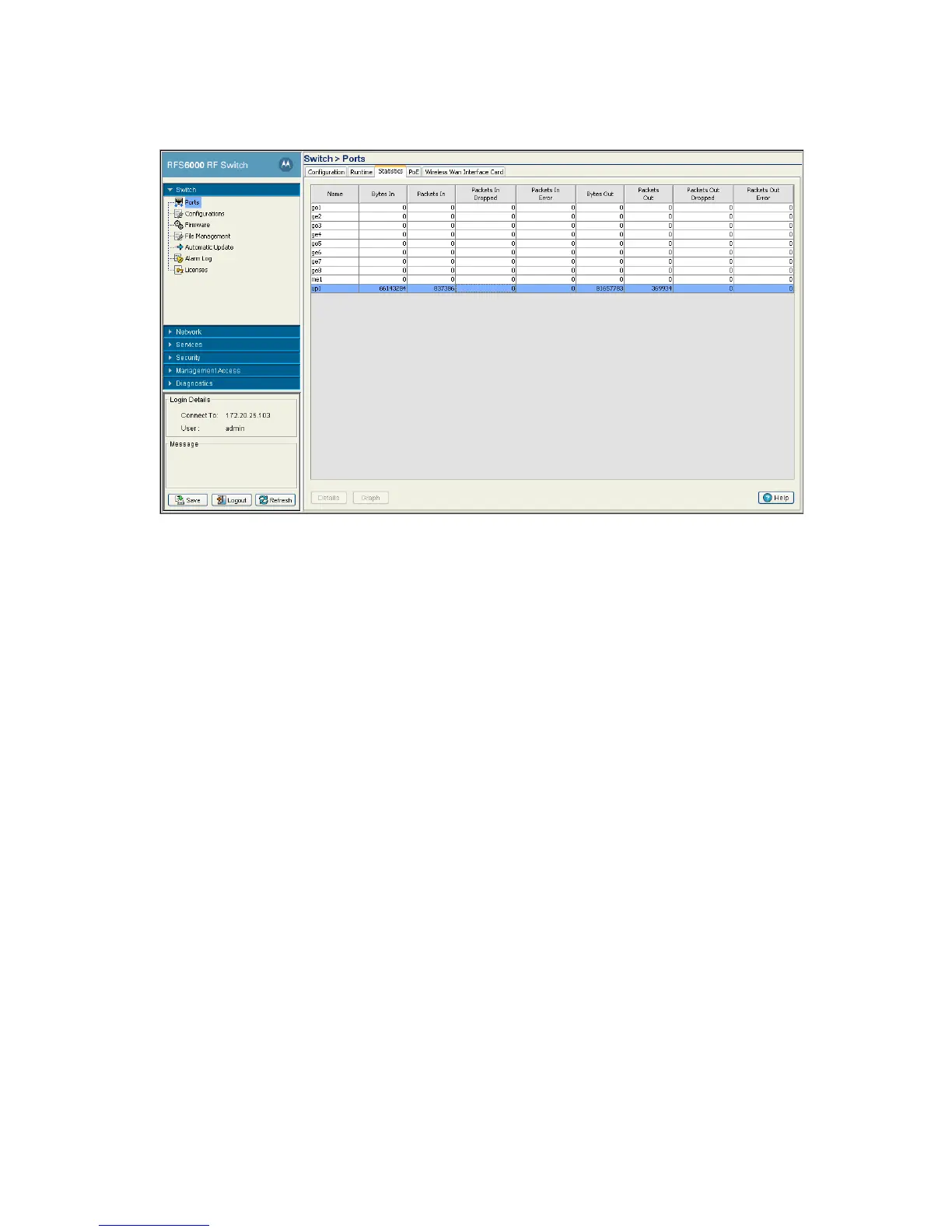

3. Refer to the Statistics tab to display the following read-only information:
4. Select a port and click on the Details button to see the detailed port statistics. For more information,
refer to Detailed Port Statistics.
5. Select a port and click on the Graph button to view the port statistics in a graphical format. For more
information, refer to Viewing the Port Statistics Graph.
Name Defines the port name. The port names available vary by switch.
RFS6000: ge1, ge2, ge3, ge4, ge5, ge6, ge7, ge8, me1, up1, wan
RFS7000: ge1, ge2, ge3, ge4, me1
RFS4000: ge1, ge2, ge3, ge4, ge5, up1
Bytes In Displays the total number of bytes received by the port.
Packets In Displays the total number of packets received by the port.
Packets In Dropped Displays the number of packets dropped by the port. If the number appears
excessive, a different port could be required.
Packets In Error Displays the number of erroneous packets received by the port. If the number
appears excessive, try using a different port and see if the problem persists.
Bytes Out Displays the total number of bytes transmitted by the port.
Packets Out Displays the total number of packets transmitted by the port. A low value could be
an indication of a network problem.
Packets Out Dropped Displays the total number of packets dropped during transmission. A high value
may be an indication of network throughput issues.
Packets Out Error Displays the total number of erroneous transmitted packets.
