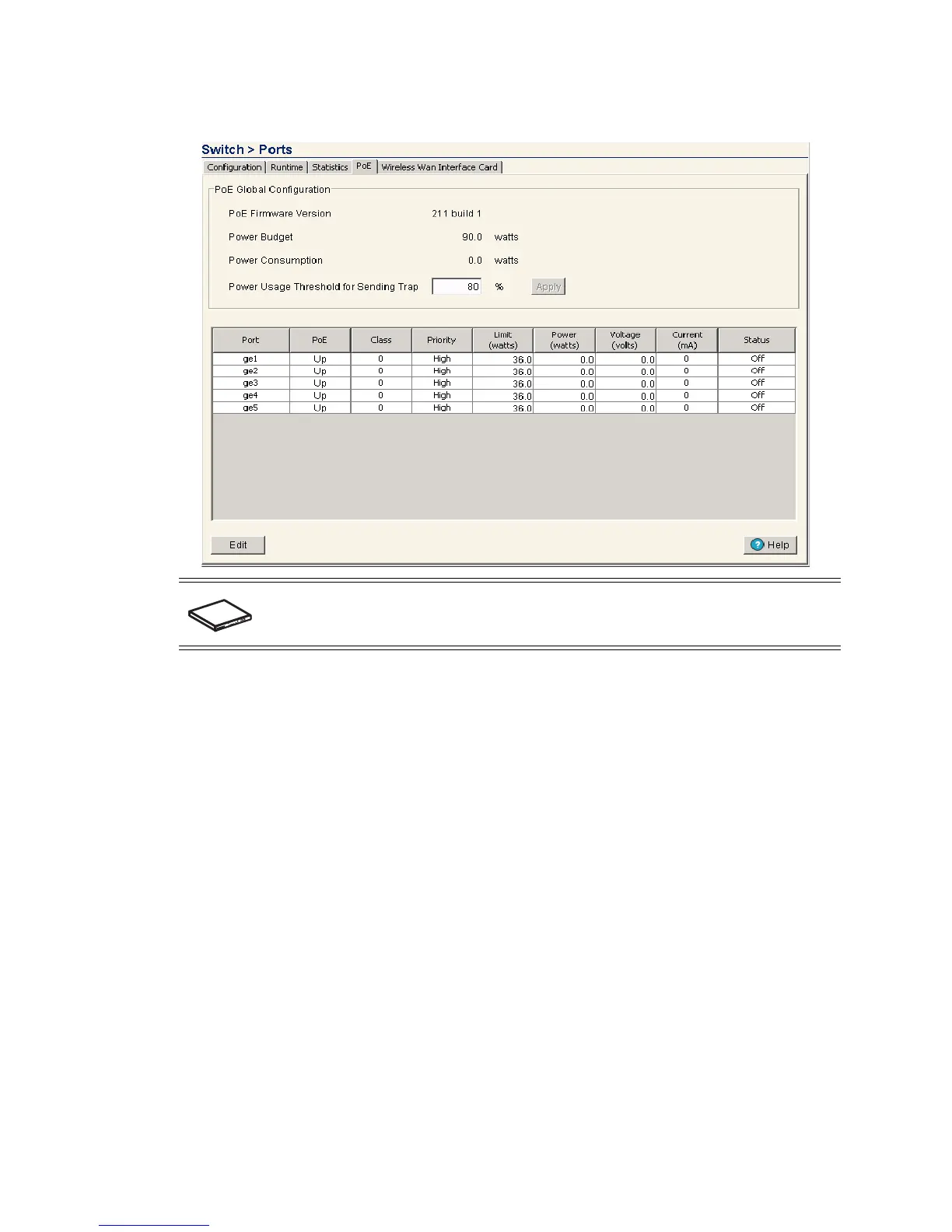

2. Select the PoE tab
The PoE Global Configuration section displays the following power information.
If you have modified the
Power Usage Threshold for Sending Trap value, click the Apply button to save the
changes.
SWITCH NOTE: The PoE screen is available on the RF6000 and RFS4000 switches. The
RFS7000 switch does not have Power over Ethernet on any ports and will not display the
PoE tab.
Power Budget Displays the total watts available for Power over Ethernet on the switch.
Power Consumption Displays the total watts in use by Power over Ethernet on the switch.
Power Usage
Threshold for
Sending Trap
Specify a percentage of power usage as the threshold before the switch sends an
SNMP trap. The percentage is a percentage of the total power budget of the
switch.
Port Displays the port name for each of the PoE capable ports.
PoE Displays the PoE status of each PoE capable port. Status will display Up when PoE
is available on the port and Down when PoE is unavailable on the port.
Class Displays the IEEE Power Classification for each port:
Class Number Maximum Power Required from Switch
0 (unknown) 15.4 Watts
1 4 Watts
2 7 Watts
3 15.4 Watts
