3-28 Motorola RF Switch System Reference

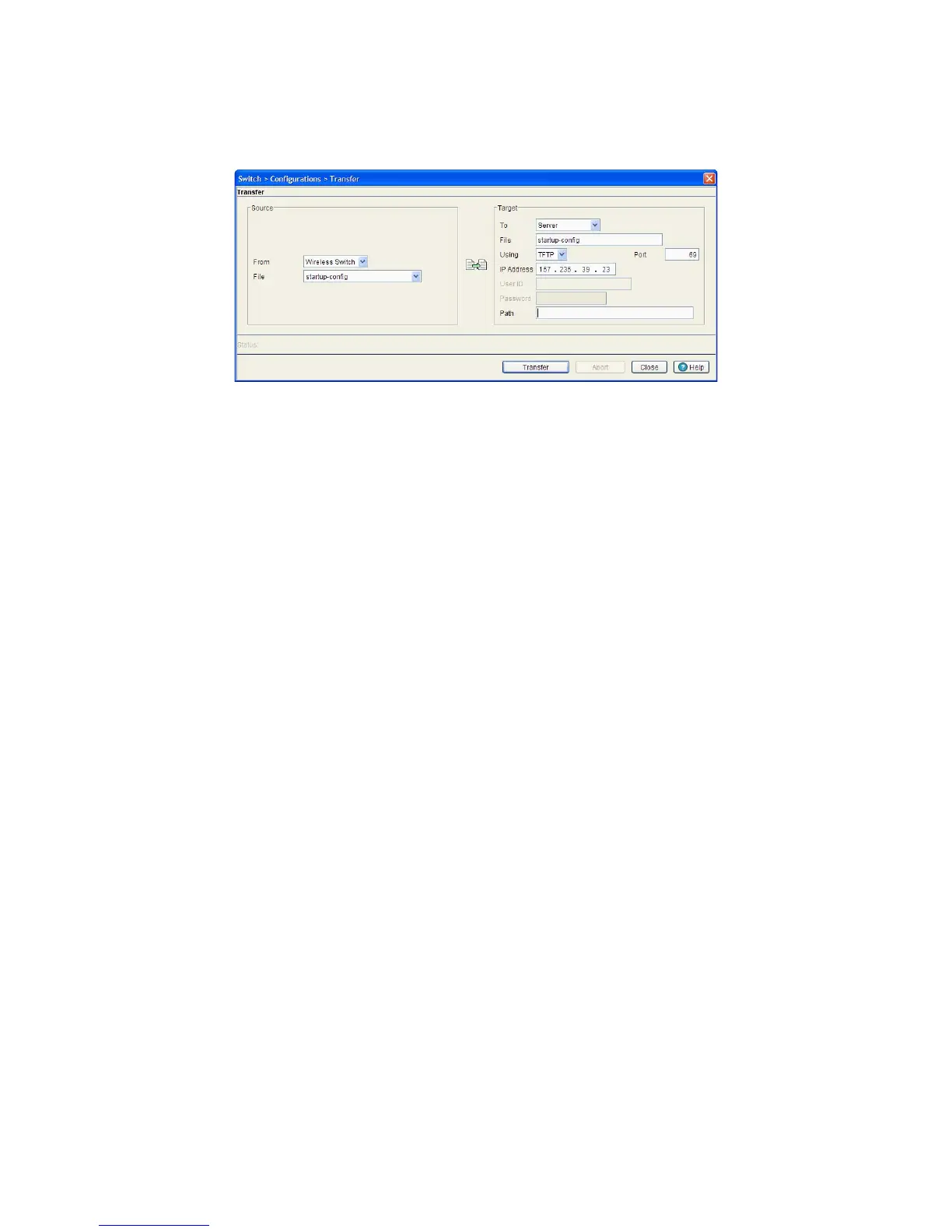

1. Click the Transfer Files button on the bottom of the Configuration screen.
2. Refer to the Source field to define the location and address information for the source config file.
3. Refer to the Target field to specify the details of the target file.
4. Refer to the Status field for the current state of the requests made from the applet. Requests are any
“SET/GET” operation from the applet. The Status field displays error messages if something goes wrong
in the transaction between the applet and the switch.
5. Click the Transfer button when ready to move the target file to the specified location. Repeat the process
as necessary to move each desired configuration file to the specified location.
6. Click the Abort button to cancel the file transfer process before it is complete.
7. Click the Close button to exit the Transfer screen and return to the Config Files screen. Once a file is
transferred, there is nothing else to be saved within the Transfer screen.
From Select the location representing the source file’s current location using the From
drop-down menu. Options include Server, Local Disk, and Switch.
File Specify a source file for the file transfer. If the switch is selected, the file used at
startup automatically displays within the File parameter.
Using Refer to the Using drop down-menu to configure whether the log file transfer is
conducted using FTP or TFTP. FTP transfers require a valid user ID and password.
IP Address Enter the IP Address of the server or system receiving the source configuration.
Ensure the IP address is valid or risk jeopardizing the success of the file transfer.
User ID Enter the User ID credentials required to transfer the configuration file from a FTP
server.
Password Enter the Password required to send the configuration file from an FTP server.
Path Specify an appropriate Path name to the target directory on the local system disk
or server. The Target options are different depending on the target selected.
To Use the To drop-down menu to define the location of the configuration file.
Options include the switch (default location), external server, or local disk.
File Use the File field to specify a target file for the file transfer. Use the File Browser
icon to search attached files systems for target file location.
