Native Instruments MASCHINE MK3 User Manual

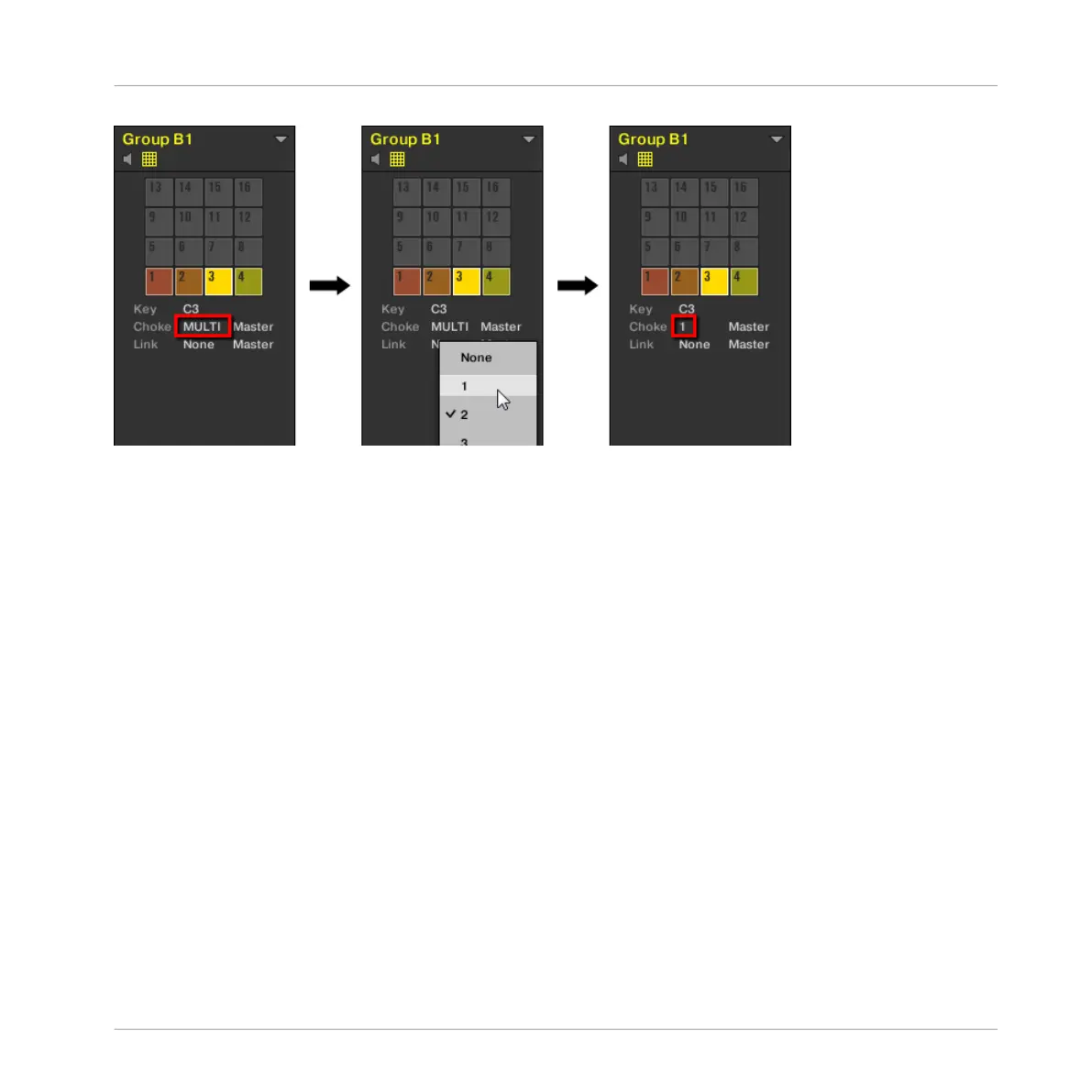

Sound slots 1 to 4 are selected. If they have different Choke values, a MULTI label appears (left). When you click it and
select a new Choke or Link group from the list (middle), this new group is applied to all selected Sounds.
This is also true when adjusting the parameter from your controller.
To assign the selected pad(s) / Sound slot(s) to a Link group and set its/their Link mode on
your controller:
1. Hold the PAD MODE button to enter Pad Mode (or press PAD MODE + Button 1 to pin it).
2. If necessary, press the Page Left button to switch to the first Parameter page of the Pad
Mode.
3. Turn Knob 3 (LINK GROUP) to select the desired Link group 1–8 for that pad or choose
NONE (default setting) to remove the pad from its current Link group.
4. Turn Knob 4 (LINK MODE) to select the Link mode from MASTER (default setting) or
SLAVE for that pad.
5. Release PAD MODE (or press it again if you pinned the mode).
Playing on the Controller
Adjusting the Pads
MASCHINE - Manual - 237

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
