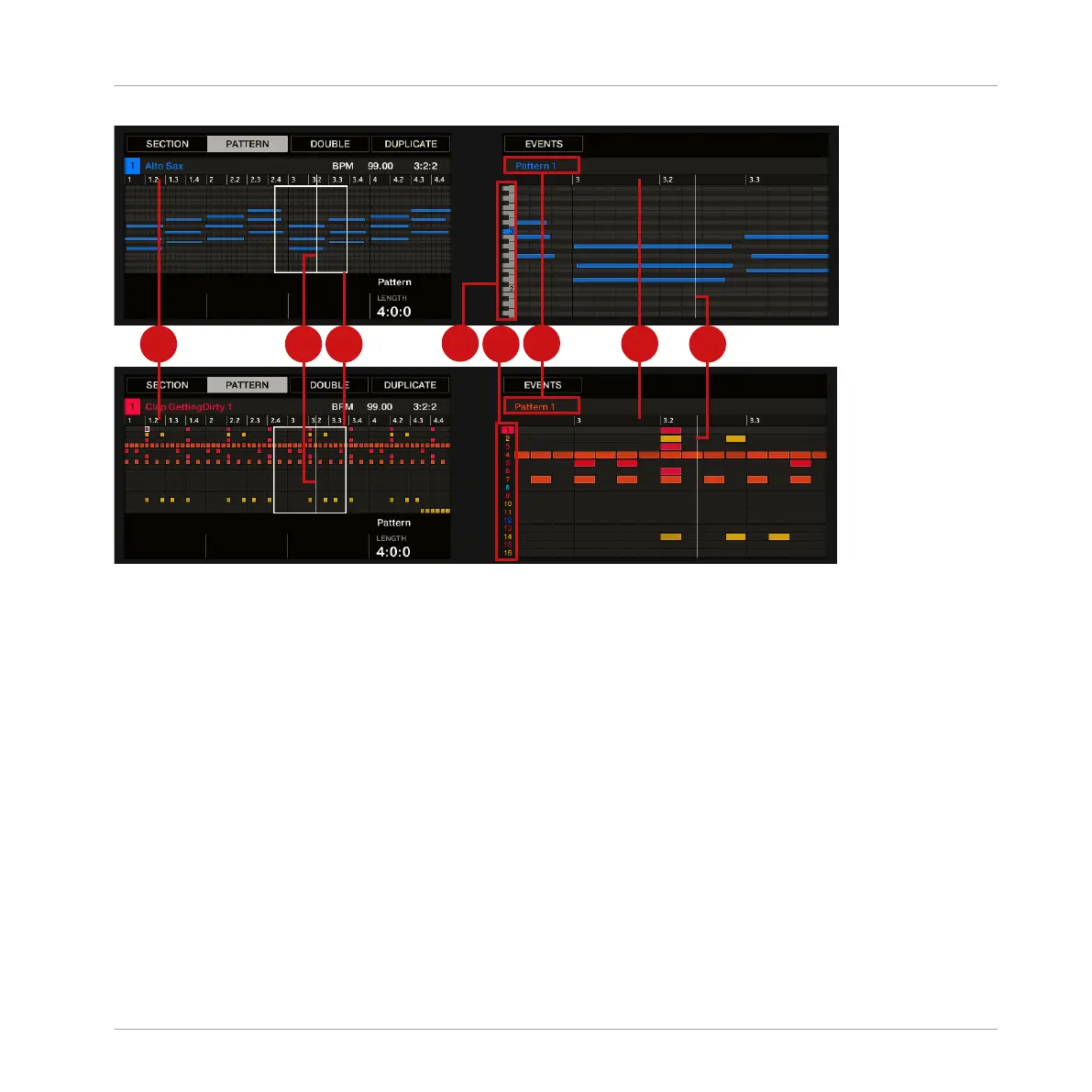

The Pattern Arrange mode in the controller displays: Keyboard view (top) and Group view (bottom).
In Pattern Arrange mode, the displays of your controller show the following:
▪ The left display provides an overview of the whole Pattern:
◦ The display follows the Group or Keyboard view of the Pattern Editor in the software
and the mode of your pads: if your pads are in Group mode the display shows all
events for all Sounds in the Group; if your pads are in Keyboard mode the display
shows all notes at all pitches for the focused Sound. See section ↑10.1.5, Group View
and Keyboard View for more information.
◦ The velocity of each event/note is indicated by its transparency. Selected events/notes
are highlighted. You can also select individual events using the Page buttons (left of
the displays).
◦ The overview includes a timeline (1). A white vertical line indicates the current play-
back position (2). In addition, a frame (3) shows you which part of your arrangement
is currently shown in the right display (see below).
Working with Patterns
Pattern Basics
MASCHINE - Manual - 429

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
