Native Instruments MASCHINE MK3 User Manual

By combining these tools you can precisely define the selection of events you want to edit.
Event Select Mode: Selecting Notes (Pads in Keyboard mode)
In Keyboard mode each pad represents a specific pitch of the focused Sound.

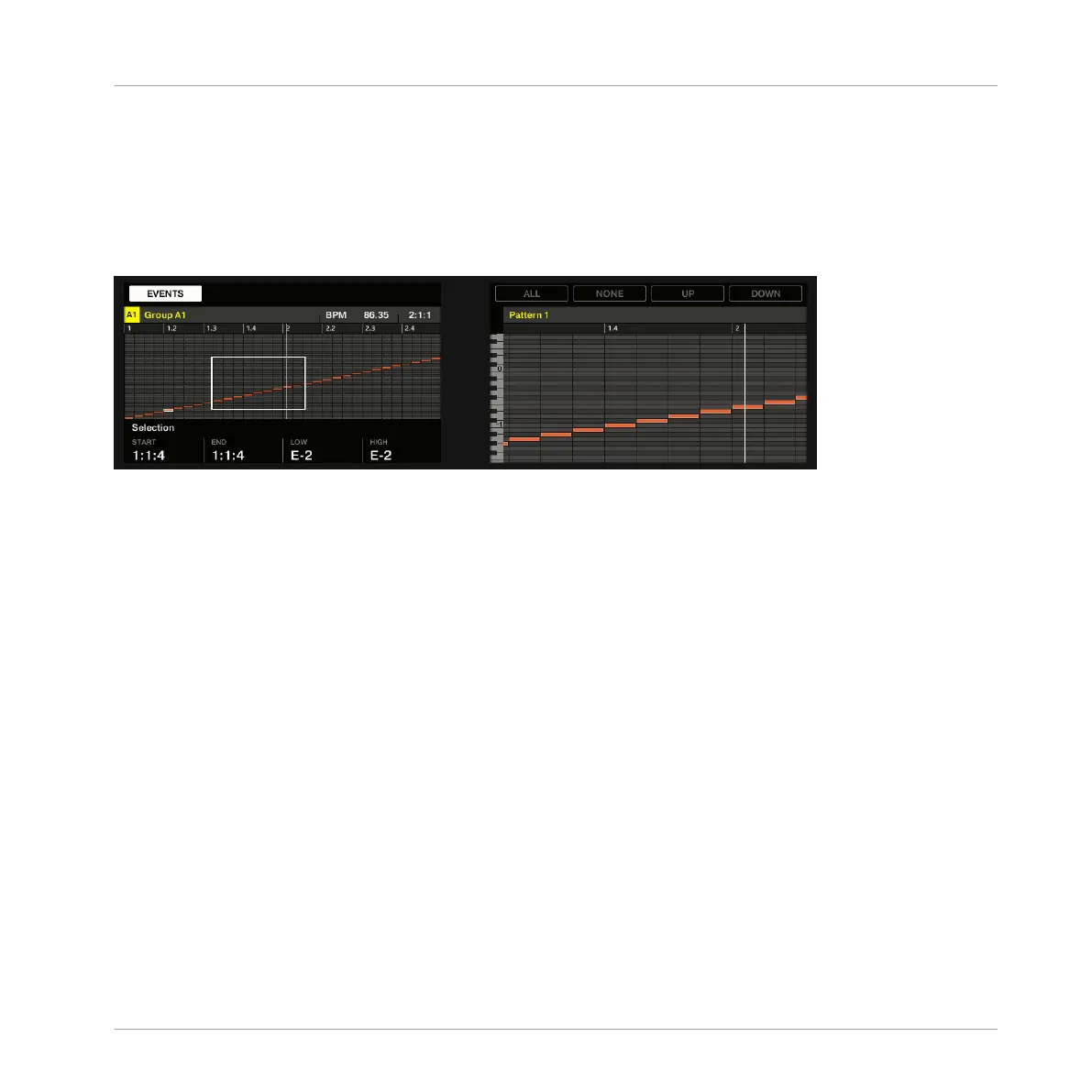

When your pads are in Keyboard mode the Event Select mode looks as follows:
Selecting events on the controller with the pads in Keyboard mode.
▪ The left display shows an overview of the events in your Pattern for all pitches of the fo-
cused Sound.
▪ The right display shows a detailed view of a portion of your Pattern containing events on
two octaves.
You can adjust the right display as follows:
1. Turn Knob 5 and 6 to zoom in/out and scroll on the time axis (horizontal axis), respective-
ly.
2. Turn Knob 7 to scroll on the pitch axis (vertical axis) from events at the lowest pitch until
events at the highest pitch. If all events are within two octaves, they all appear in the dis-
play and Knob 7 is inactive.
You have following selection tools at your disposal:
Working with Patterns
Editing Events
MASCHINE - Manual - 468

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
