Virtual Private Networking Using IPSec Connections

259

ProSecure Unified Threat Management (UTM) Appliance

Note: Perform these tasks from a PC that has the NETGEAR ProSafe

VPN Client installed.

 To use the Configuration Wizard to set up a VPN connection between the VPN client

and the UTM:

1. Right-click the VPN client icon in your Windows system tray, and select Configuration

Panel. The Configuration Panel screen displays.

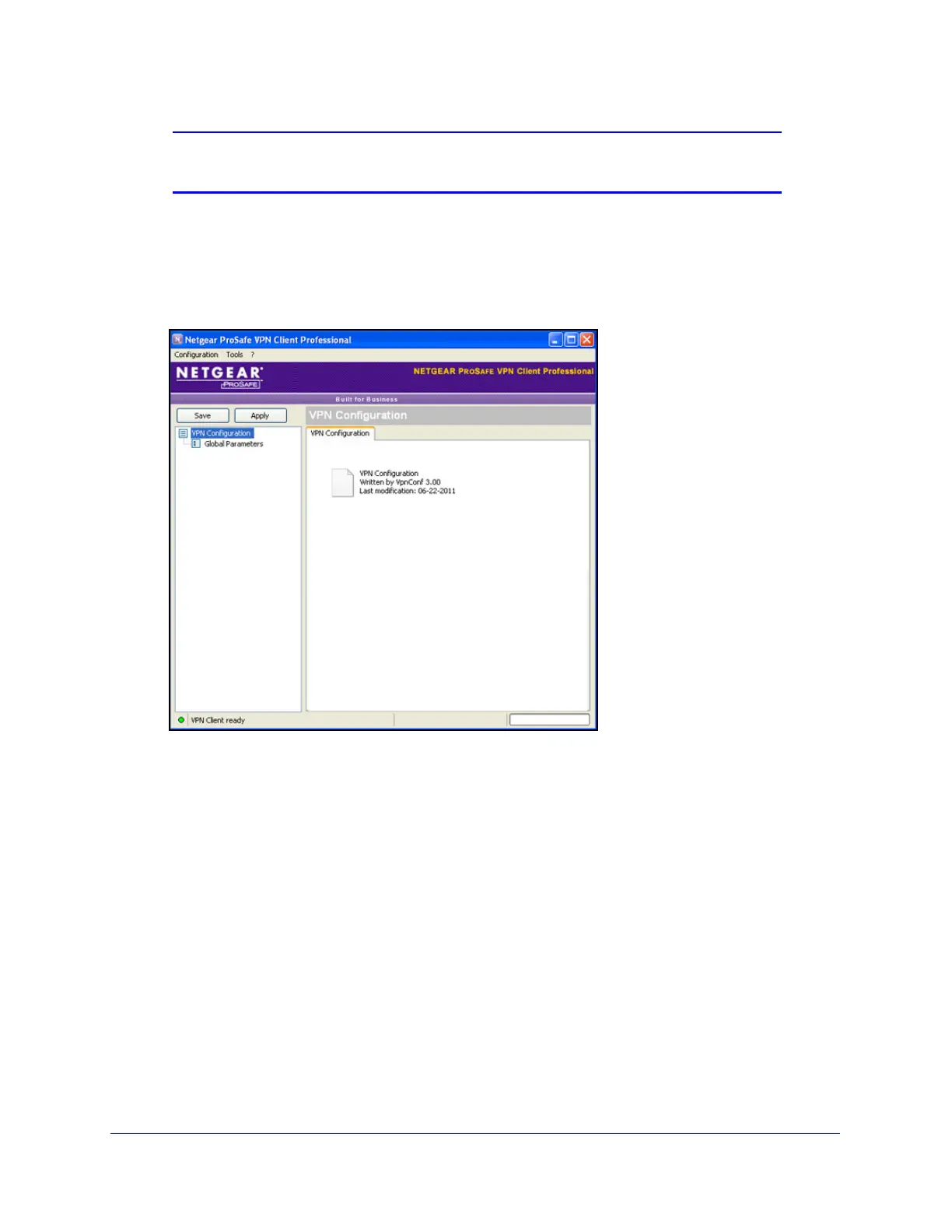

Figure 151.

2. From the main menu on the Configuration Panel screen, select Configuration > Wizard.

The Choice of the remote equipment wizard screen (screen 1 of 3) displays.
