Virtual Private Networking Using IPSec Connections

261

ProSecure Unified Threat Management (UTM) Appliance

5. Click Next. The Configuration Summary wizard screen (screen 3 of 3) displays.

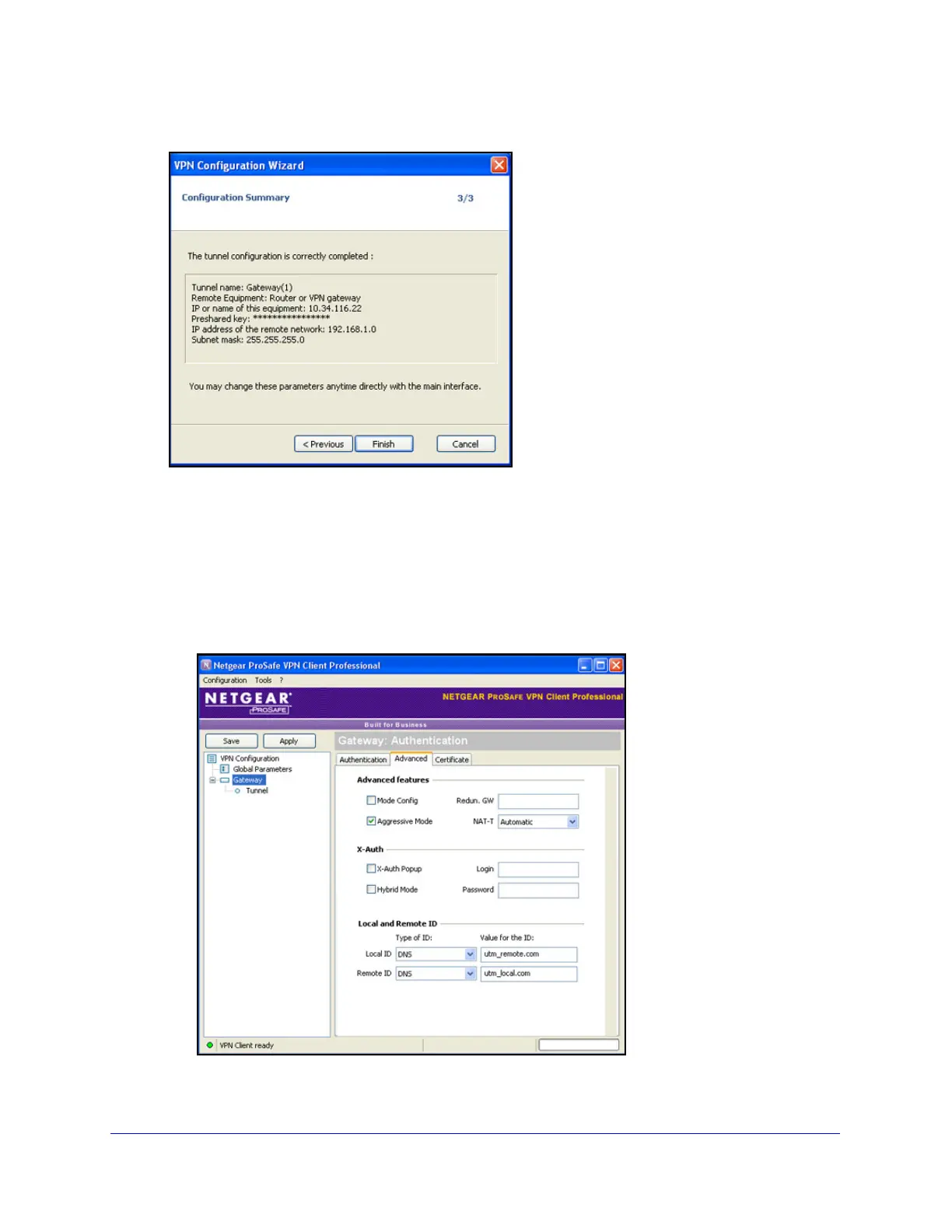

Figure 154.

6. This screen is a summary screen of the new VPN configuration. Click Finish.

7. Specify the local and remote IDs:

a. In the tree list pane of the Configuration Panel screen, click Gateway (the default

name given to the authentication phase). The Authentication pane displays in the

Configuration Panel screen, with the Authentication tab selected by default.

b. Click the Advanced tab in the Authentication pane. The Advanced pane displays.
