Monitoring System Access and Performance
465
ProSecure Unified Threat Management (UTM) Appliance
The UTM9S also shows SLOT-1 Info and SLOT-2 Info sections at the bottom of the Detailed
Status screen:

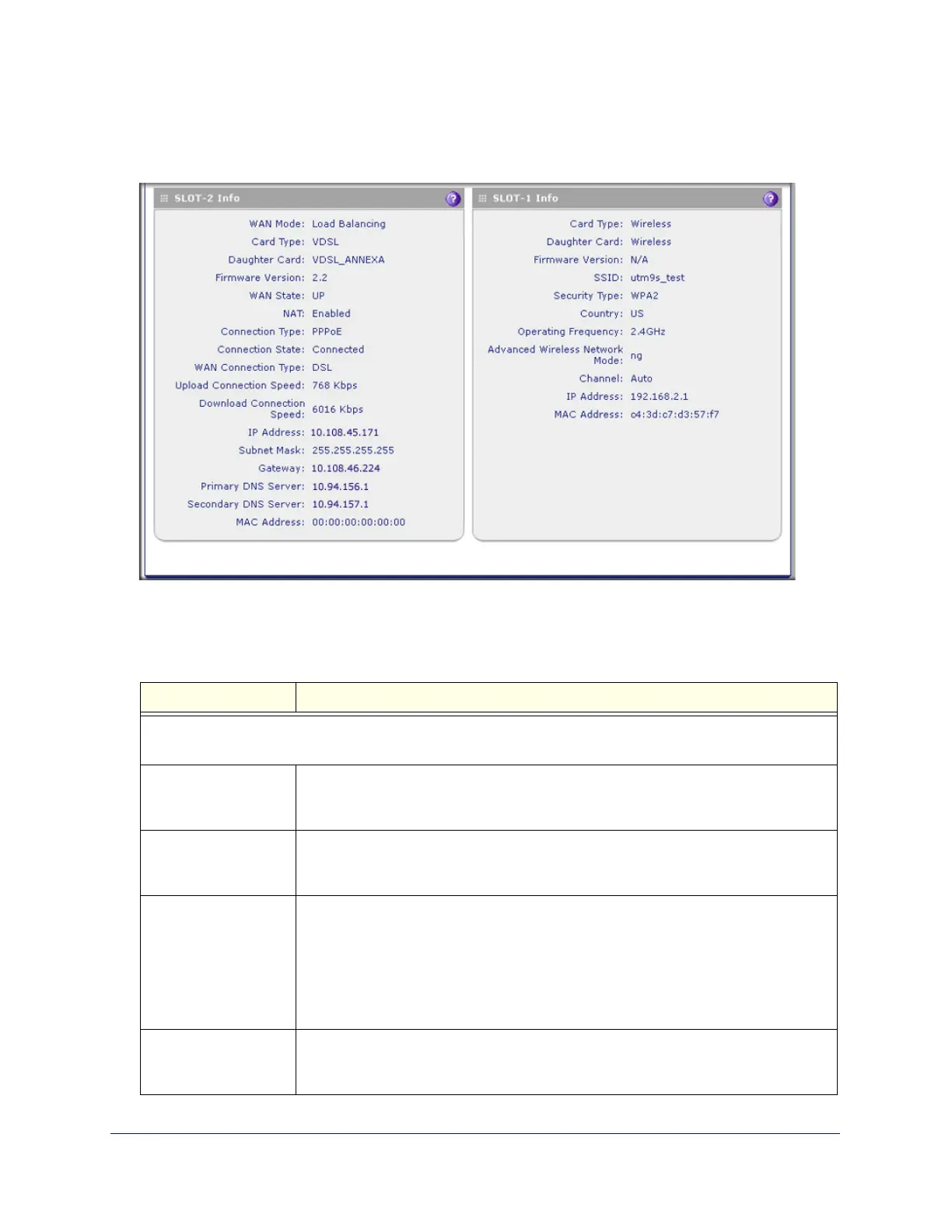

Figure 275. SLOT-1 Info and SLOT-2 Info sections (UTM9S only)
The following table explains the fields of the Detailed Status screen:
Table 121. Detailed Status screen fields
Item Description
LAN Port Configuration
The following fields are shown for each of the LAN ports.
VLAN Profile The name of the VLAN profile that you assigned to this port on the LAN Setup screen
(see Assign and Manage VLAN Profiles on page 94). If the VLAN is not enabled on
this port, the default profile (with VLAN ID 1) is assigned automatically.
VLAN ID The VLAN ID that you assigned to this port on the Add VLAN Profile screen (see
Configure a VLAN Profile on page 96). If the default VLAN profile is used, the VLAN ID
is 1, which means that all tagged and untagged traffic can pass on this port.
MAC Address The MAC address of this port. All LAN ports share the same MAC address if they are
part of the default VLAN. However, if LAN port 4 (UTM5, UTM10, UTM25, and
UTM150) or LAN port 6 (UTM50) is enabled as the DMZ port, its MAC address is
changed to the MAC address of the WAN2 interface plus 1. (For example, if the MAC
address of the WAN2 interface is 00:26:f2:b5:db:80, the MAC address of the DM port
is 00:26:f2:b5:db:81.) For information about configuring the DMZ port, see Configure
and Enable the DMZ Port on page 111.
IP Address The IP address for this port. If the VLAN is not enabled on this port, the IP address is
the default LAN IP address (192.168.1.1). For information about configuring VLAN
profiles, see Configure a VLAN Profile on page 96.
