Custom Dialogs
105
3
Performing Test Measurement/Starting Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)
7 Edit the settings for the item. Some settings are common for all items, and some are specific
to individual items.

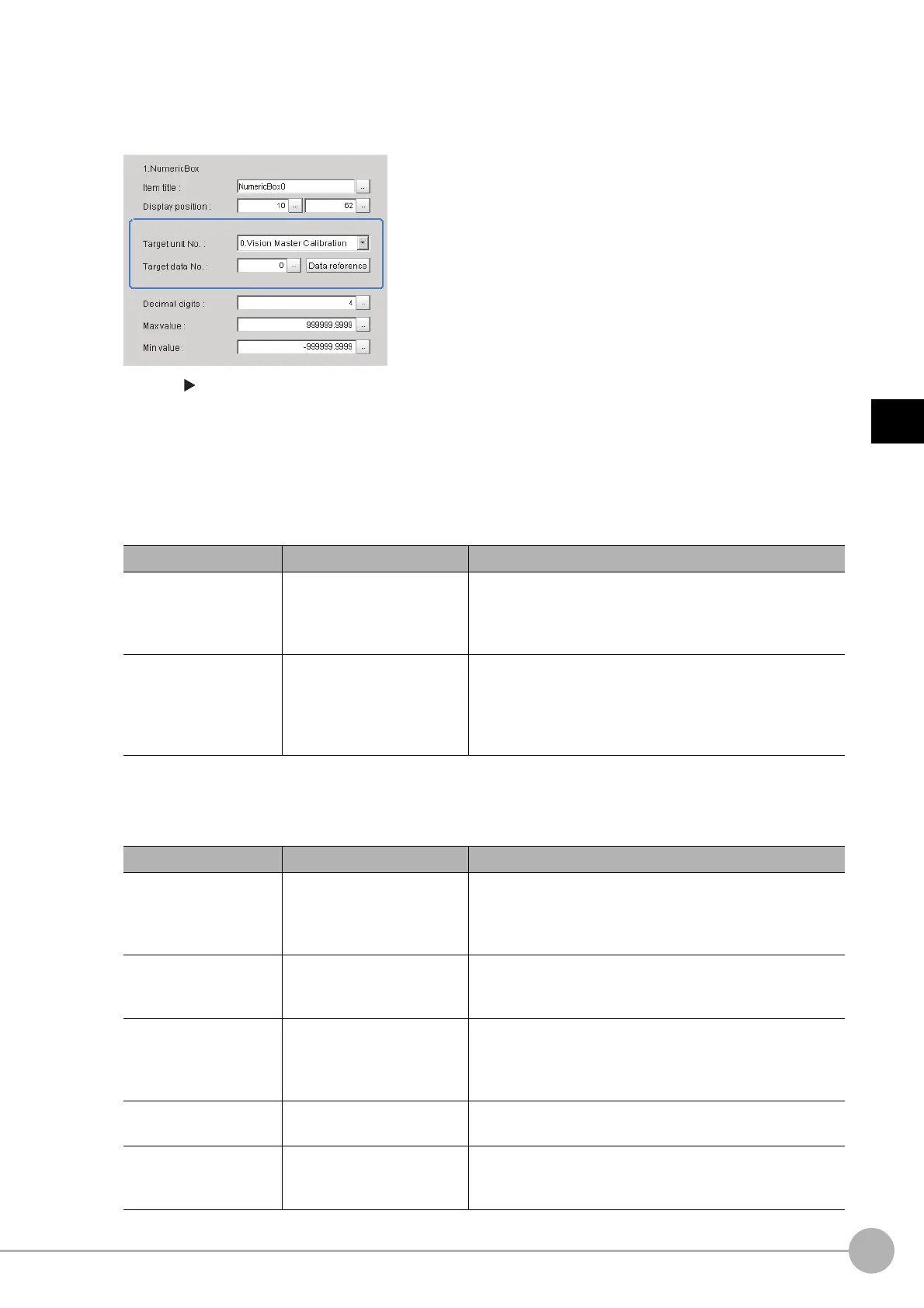

Example: Item Properties Display Area for a Numeric Box
Refer to Settings in the Item Properties Display Area (p.105) that is described later in this section for
details on all settings.
8 When you have finished editing, click the [OK] button to exit the Edit Dialog Box Window.
Settings in the Item Properties Display Area
• Common Settings Area
• Individual Setting Region
Numeric Box Setting Region
Parameter Set value [Factory default] Description
Item title
This is set to a character
string that is not assigned to
any other item in the list
when the item is added.
To change the title of the dialog box item, click the [...] button
and enter the desired characters.
Display position
X: 0 to 1920, [−]
Y: 0 to 1080, [−]
These are the coordinates of the upper left corner of the
dialog box item. The upper left corner of the dialog box is 0,
0.
The display position is also updated when you drag an item
to a new position in the Design Pane.
Parameter Set value [Factory default] Description
Target unit No.
0 to Number of units in the
display target scene - 1
[0]
Specify the unit to be the target for the numeric setting.
The units that are registered for the scene that is the target
of the normal dialog box will appear in the combo box.
Select the processing unit to set.
Target data No.
0 to 9999999
[0]
Specify the data to be the target for the numeric setting.
Enter the data number for the unit that is specified by the
target unit number.
[Data reference] button ---
You can select the data number directly to enter it, or you
can enter it with the [Data reference] button.
Click the [Data reference] button to select the target data in
the [Data reference] dialog box.
Decimal digits
0 to 4
[4]
Enter the number of digits after the decimal place that can
be entered by the numeric setting.
Max value
−999999.9999 to
999999.9999
[999999.9999]
Enter the maximum value that can be entered with the
numeric setting.
