2 Basic repair procedures Chapter E: Basic repair procedures
184 Planmeca PlanMill 40 Technical manual

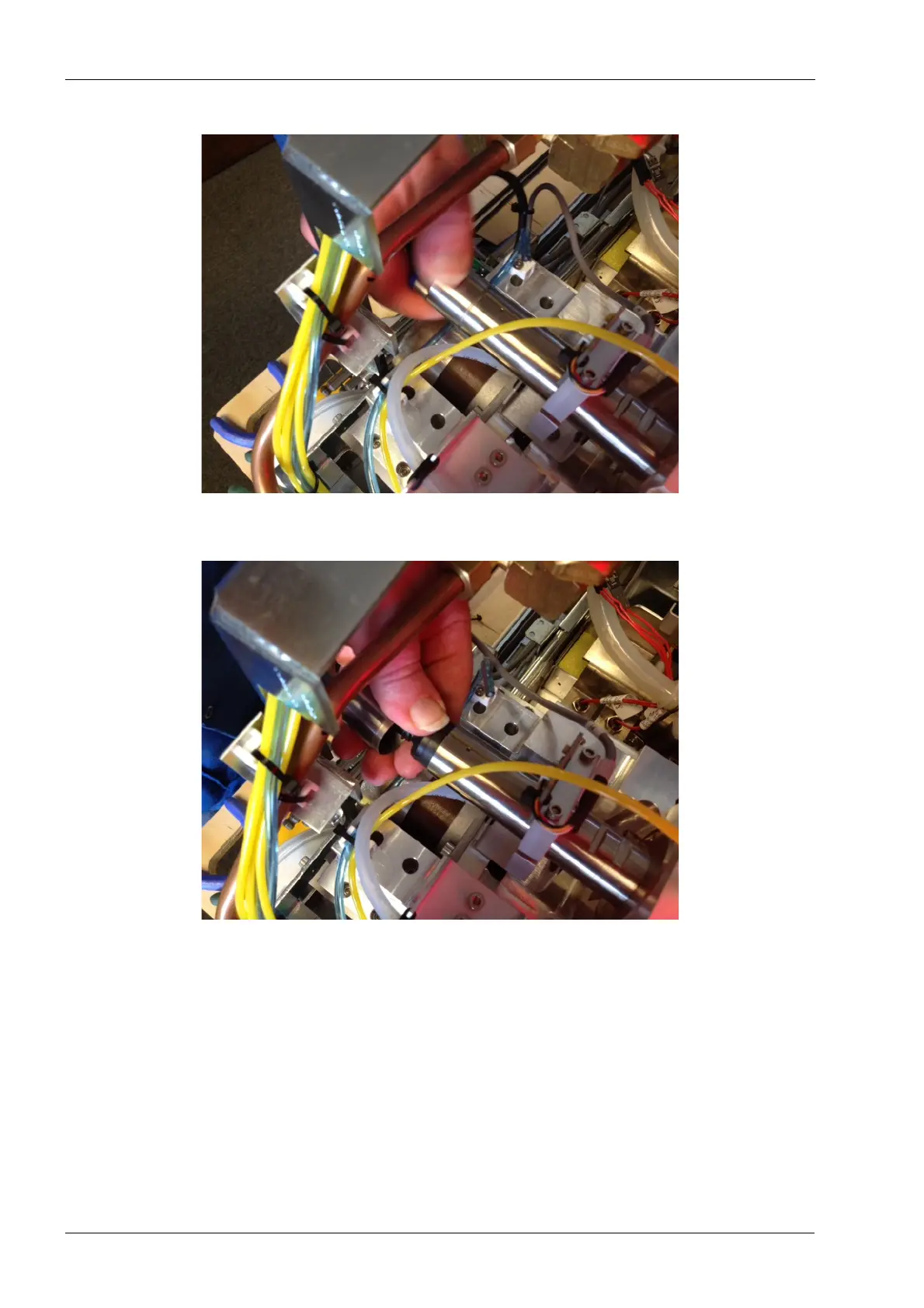

Figure 198: Unscrewing the connector
14. Once it is loosened unscrew the connector by hand.
Figure 199: Disconnecting the spindle motor cable
15. The metal housing of the connector will slide back when fully unscrewed. Grasp the
plastic connector and pull straight away from the motor to disconnect it from the
motor.
