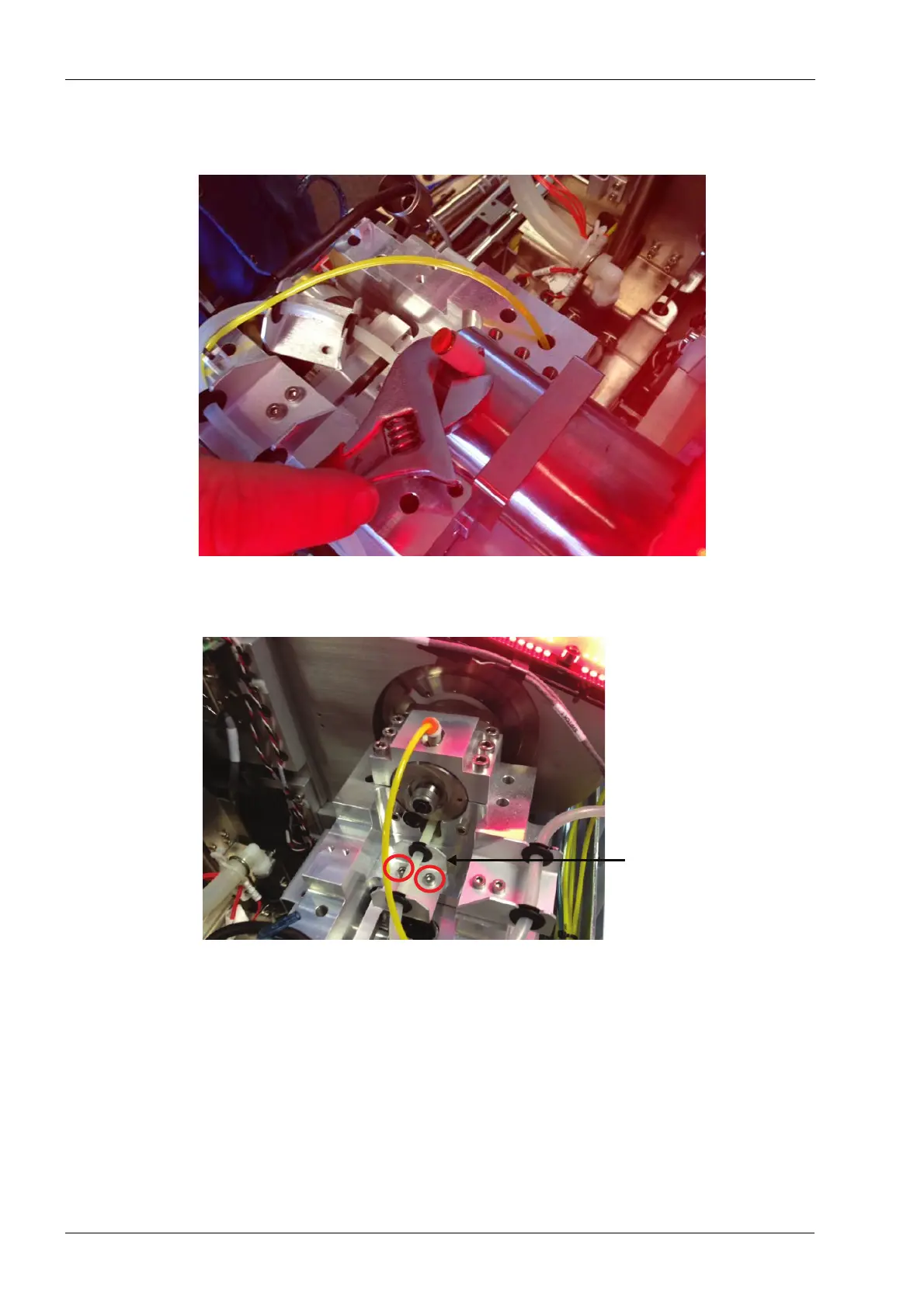

21. Remove 3.2 mm (1/8”) yellow air hose from one touch fitting, and lift the saddle cap
free of the carriage assembly.
Figure 203: Remove one touch fitting
22. Use the small adjustable crescent key to remove the one touch fitting from the
spindle.
Figure 204: Tubing support bracket
23. Remove the two M4 screws from the tubing support bracket.
